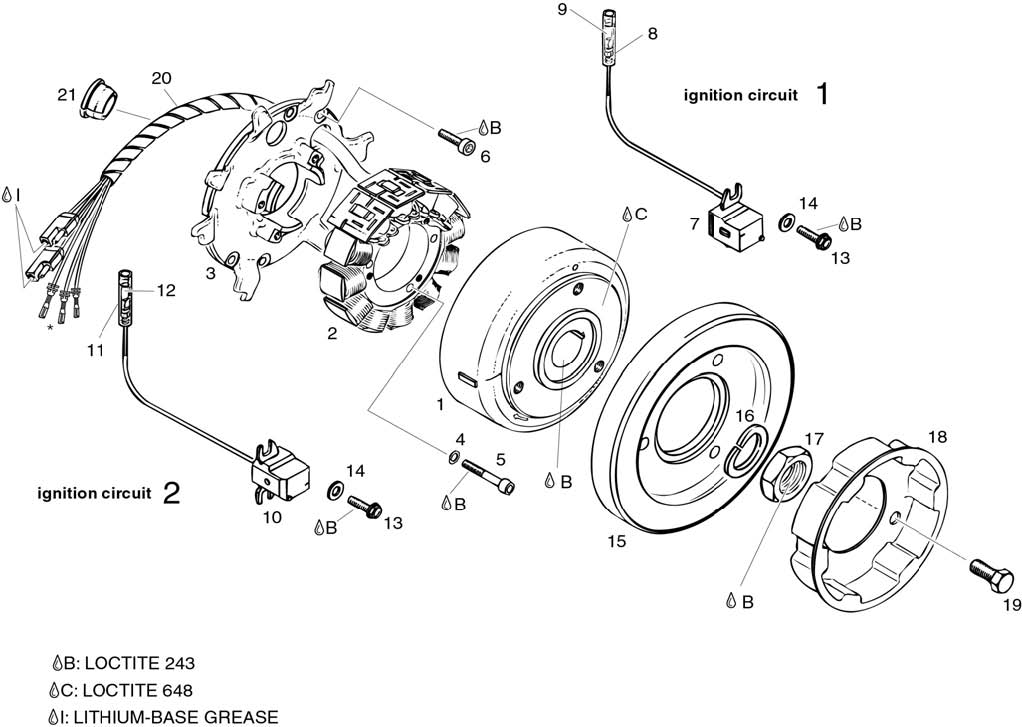

fig. 24-20-00-3
DUCATI MAGNETO-GENERATOR 12 V170W, STARTING PULLEY For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 996826 | Trigger Wheel Assy | 677800 | Add to Cart |
| 2 | 996849 | Stator, 582/99, 12w150 | 866800 | Add to Cart |
| 3 | 966207 | Stator Plate | 91500 | Add to Cart |
| 4 | 945830 | Lock Washer A5 | 270 | Add to Cart |
| 5 | 940880 | Allen Screw M5x30 | 470 | Add to Cart |
| 6 | 641521 | Allen Screw M5x16-t25 Din 6912-mk | 2000 | Add to Cart |
| 7-9 | 965769 | Pick Up Assy. | 140000 | Add to Cart |
| 8 | 964072 | Insulation Sheath | 470 | Add to Cart |
| 9 | 964067 | Faston Connector 3,96 | 470 | Add to Cart |
| 10-12 | 965761 | Pick-up Assy. | 128400 | Add to Cart |
| 11 | 964072 | Insulation Sheath | 470 | Add to Cart |
| 12 | 964067 | Faston Connector 3,96 | 470 | Add to Cart |
| 13 | 941926 | Taptite Screw M5x16 | 990 (1) | Add to Cart |
| 14 | 827801 | Washer A 5,5 | 270 | Add to Cart |
| 15 | 965499 | Hydro Damper Assy., | 1132800 | Add to Cart |
| 16 | 945759 | Lock Washer 22 | 1500 | Add to Cart |
| 17 | 842239 | Hex. Nut M22x1,5 | 7300 | Add to Cart |
| 18- | 852422 | Starting Pulley | 68000 | Add to Cart |
| 18- | 852410 | Starting Pulley | 68000 | Add to Cart |
| 18- | 852411 | No Longer Available | 0 | Add to Cart |
| 19 | 940592 | Hex.screw M8x20 | 1200 | Add to Cart |
| 20 | 966060 | Spiral Hose & Band | 39500 | Add to Cart |
| 21 | 960288 | Cable Crommet 20,5/11 | 10900 | Add to Cart |
