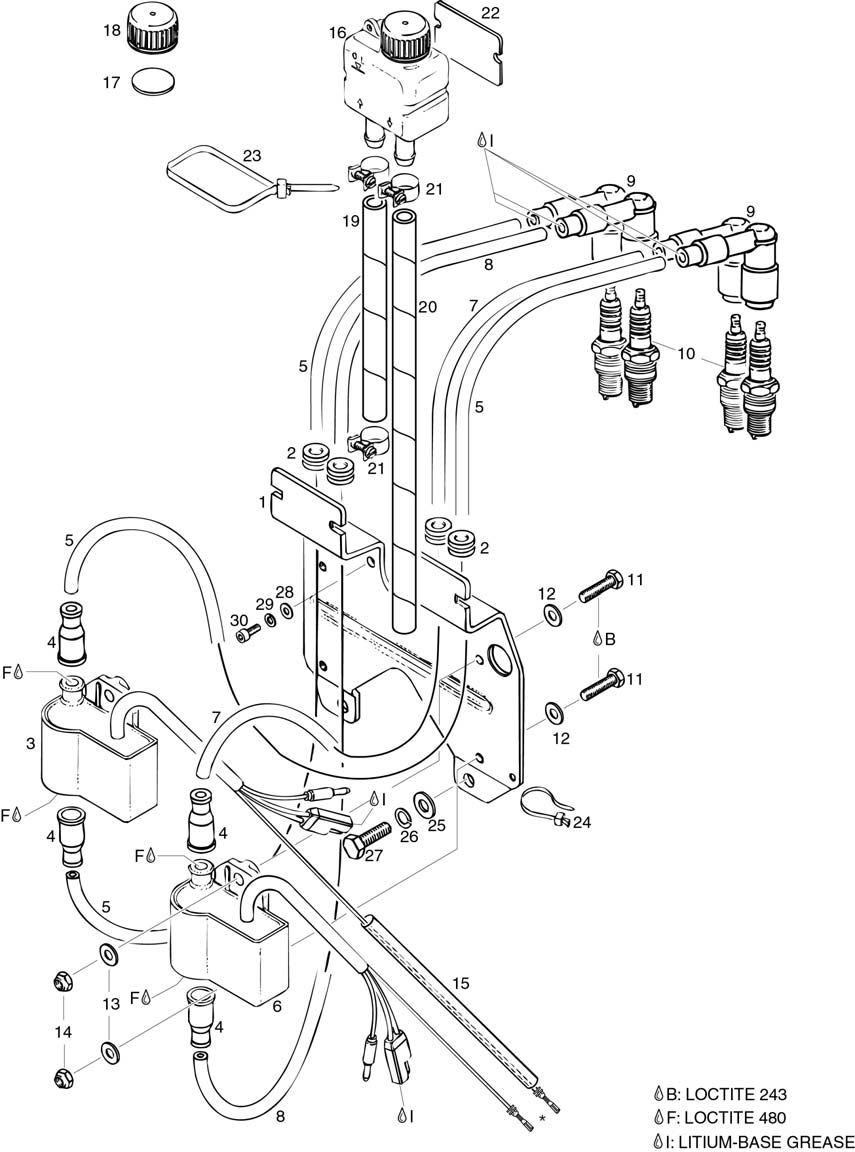

fig. 74-20-00-1
OIL TANK, IGNITION COILS, SUPPORT PLATE For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 951617 | Supporting Plate | 132000 | Add to Cart |
| 2 | 960445 | Grommet | 7300 | Add to Cart |
| 3 | 966462 | E-box, Only | 521700 | Add to Cart |
| 4 | 960550 | Protection Cap | 1800 | Add to Cart |
| 5,7,8 | 965153 | Igntion Cable, Per Meter | 17400 | Add to Cart |
| 5 | 965153 | Igntion Cable, Per Meter | 17400 | Add to Cart |
| 6 | 966467 | Electronic Box | 521400 | Add to Cart |
| 7 | 965153 | Igntion Cable, Per Meter | 17400 | Add to Cart |
| 8 | 965153 | Igntion Cable, Per Meter | 17400 | Add to Cart |
| 9 | 866705 | Suppressed Spark Plug Connector | 18400 | Add to Cart |
| 9i | 265249 | Spark Plug Connector | 114900 | Add to Cart |
| 10 | 897055 | Nla | 0 | Add to Cart |
| 10i | 297656 | Spark Plug 12 | 75900 | Add to Cart |
| 11 | 240035 | Hex Screw M6x25 | 4400 (1) | Add to Cart |
| 12,13 | 244211 | Washer 6,4 Din 134 | 270 | Add to Cart |
| 14 | 842041 | Lock Nut M6 | 270 | Add to Cart |
| 15 | 960187 | Protection Hose 170 Mm | 5600 | Add to Cart |
| 16-18 | 956240 | Oil Tank Assy., | 31600 | Add to Cart |
| 17 | 850350 | Rubber Gasket 26,5 Mm | 2900 | Add to Cart |
| 18 | 956250 | Oil Tank Cap S 103/2d | 3700 | Add to Cart |
| 19-20 | 956142 | Low Pressure Hose (sold Per Meter) | 178200 (1) | Add to Cart |
| 19 | 956142 | Low Pressure Hose (sold Per Meter) | 178200 | Add to Cart |
| 20 | 956142 | Low Pressure Hose (sold Per Meter) | 178200 | Add to Cart |
| 21 | 853515 | Clamp 16/9 | 3700 | Add to Cart |
| 22 | 860425 | Rubber Spacer | 3700 | Add to Cart |
| 23 | 951500 | Clamp 381x4,8 Mm | 2900 | Add to Cart |
| 24 | 866710 | Clamp 142x2,5 Mm | 110 | Add to Cart |
| 25 | 250315 | Washer 8,4 | 270 | Add to Cart |
| 26 | 945832 | Lock Washer A8 | 270 | Add to Cart |
| 27 | 240277 | Hex. Screw M8x25 | 720 | Add to Cart |
| 28 | 244211 | Washer 6,4 Din 134 | 270 | Add to Cart |
| 29 | 945831 | Lock Washer A6 Din 128 | 270 | Add to Cart |
| 30 | 241237 | Allen Screw M6x16 | 270 | Add to Cart |
