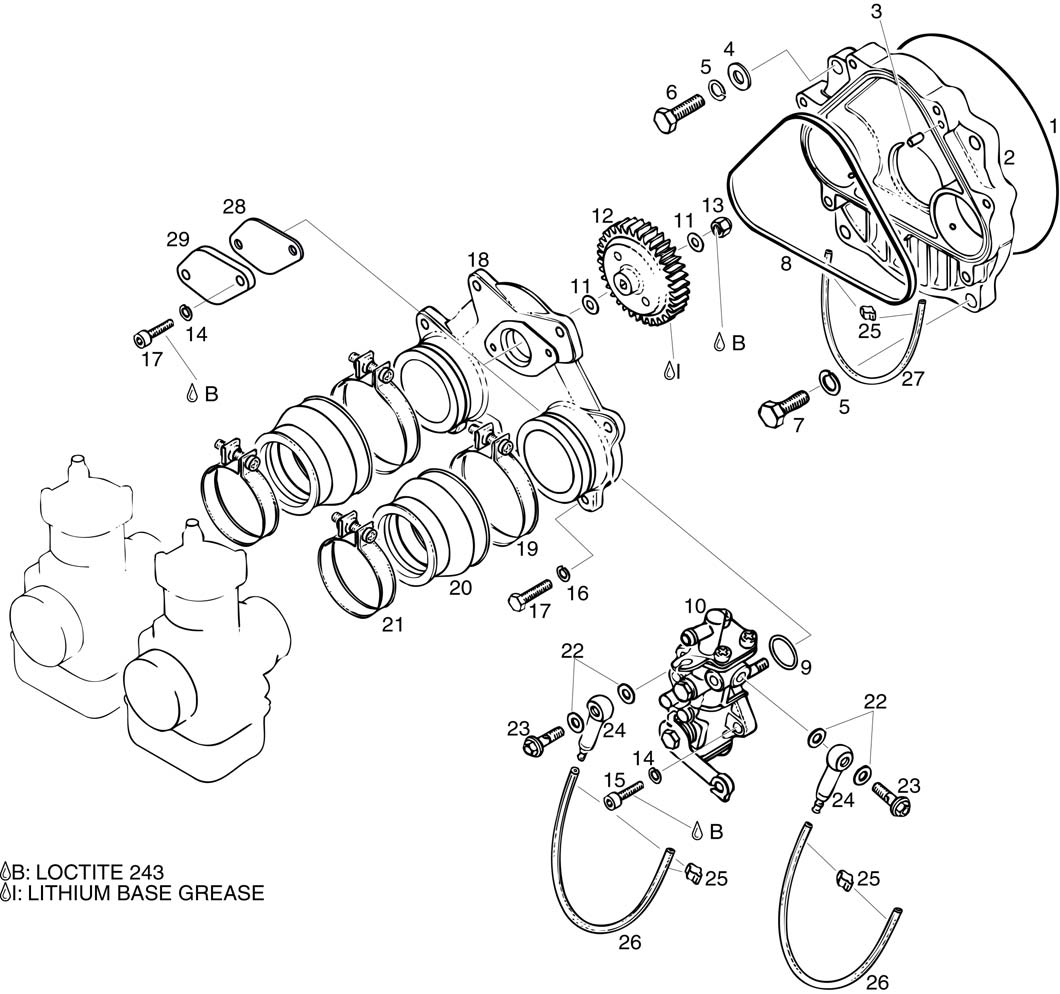

fig. 79-20-00-2
ROTARY VALVE COVER, OIL PUMP DRIVE, OIL PUMP For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 831360 | O-ring 132-1,7 | 1700 | Add to Cart |
| 2 | 0 (1) | Add to Cart | ||
| 3 | 929560 | Dowel Tube 2x8 | 5400 | Add to Cart |
| 4 | 250315 | Washer 8,4 | 270 | Add to Cart |
| 5 | 945832 | Lock Washer A8 | 270 | Add to Cart |
| 6 | 240277 | Hex. Screw M8x25 | 710 | Add to Cart |
| 7 | 940592 | Hex.screw M8x20 | 1200 | Add to Cart |
| 8 | 831700 | Rubber Ring 126x1,5x3,5 | 9500 | Add to Cart |
| 9 | 230370 | O-ring 18-1,3 | 270 | Add to Cart |
| 10 | 995527 | Oil Pump Assy., | 396800 | Add to Cart |
| 11 | 927945 | Washer 6,2/12/1 | 270 | Add to Cart |
| 12 | 935940 | Oil Pump Gear 44 T., | 6900 | Add to Cart |
| 13 | 842042 | Lock Nut M6 | 520 | Add to Cart |
| 14 | 945830 | Lock Washer A5 | 270 | Add to Cart |
| 15 | 840514 | Allen Screw M5x16 | 270 | Add to Cart |
| 16 | 945831 | Lock Washer A6 Din 128 | 270 | Add to Cart |
| 17 | 940562 | Hex.screw M6x20 | 270 (1) | Add to Cart |
| 18 | 910320 | Pump Mounting Flange | 98100 | Add to Cart |
| 19 | 851065 | Clamp 62 | 8300 | Add to Cart |
| 20 | 867696 | Carburetor Socket | 41000 | Add to Cart |
| 21 | 951405 | Hose Clamp 53 | 8600 (1) | Add to Cart |
| 22 | 227500 | Gasket Ring 6,2/12/1 | 110 | Add to Cart |
| 23 | 241830 | Banjo Bolt M6x16 | 3200 | Add to Cart |
| 24 | 956010 | Check Valve Assy., | 11700 | Add to Cart |
| 25 | 853840 | Clamp 3-5 Mm | 3600 | Add to Cart |
| 26-27 | 201240 | Oil Line 1 Meter Bulk 2,3+/-0,1x4,5+0,4 | 27500 | Add to Cart |
| 26d | 201240 | Oil Line 1 Meter Bulk 2,3+/-0,1x4,5+0,4 | 27500 | Add to Cart |
| 27e | 201240 | Oil Line 1 Meter Bulk 2,3+/-0,1x4,5+0,4 | 27500 | Add to Cart |
| 28 | 931568 | Gasket | 5000 (1) | Add to Cart |
| 29 | 810827 | Cover Plate | 15000 | Add to Cart |
