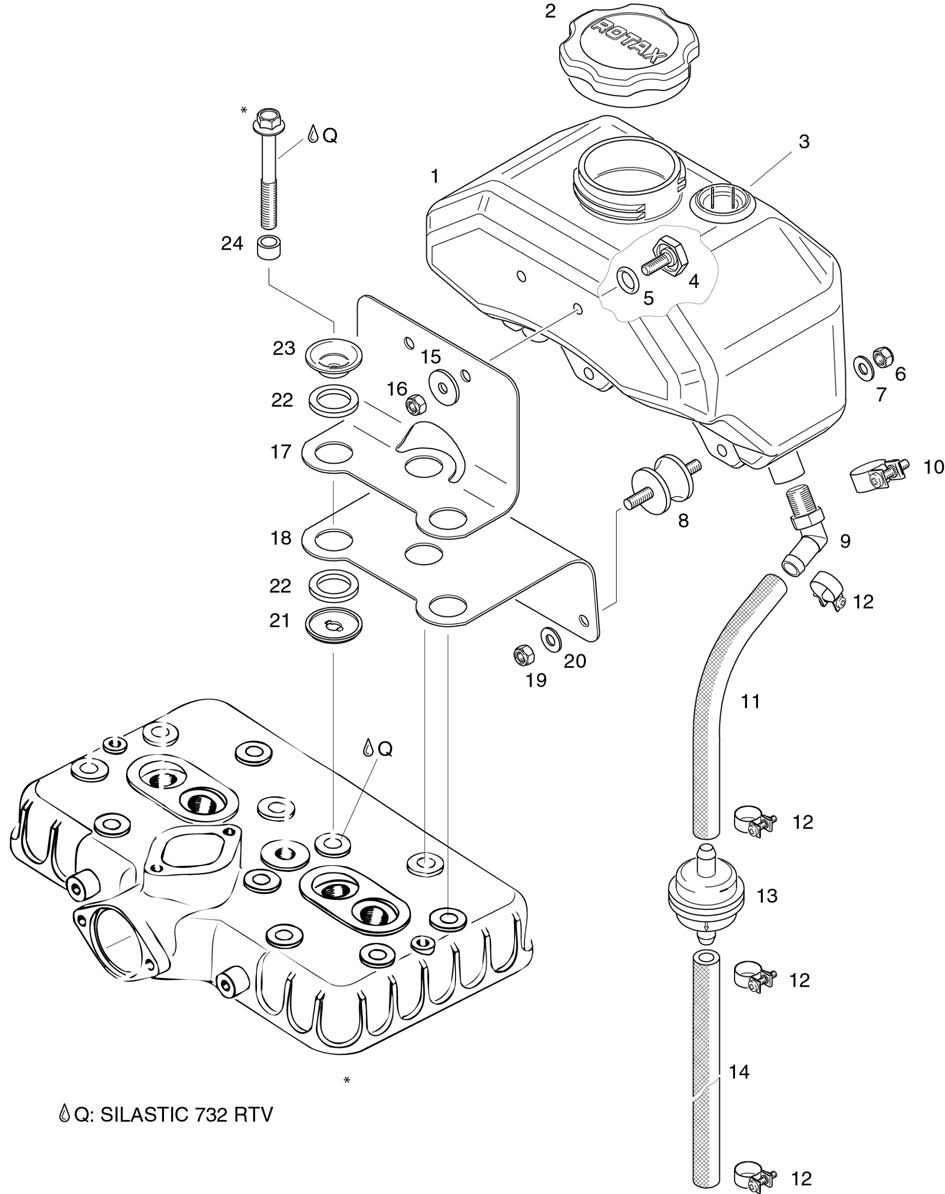

fig. 79-20-00-1

OIL TANK ASSY For ROTAX 582UL

Click on Number to order Part

Fig. Part Number Description Unit/Price Add to Cart
1-24 881465 Oil Tank W/bracket 1019300 Add to Cart
1-16 881460 Oil Reservoir For Oil Injectio 896600 Add to Cart
2 874106 Tank Cap Assy. 85700 Add to Cart
3 956360 Oil Level Indicator 64400 Add to Cart
4 840160 Tightening Screw M6 136000 Add to Cart
5 430020 O-ring 9,3x2,4 460 Add to Cart
6 842042 Lock Nut M6 520 Add to Cart
7 244211 Washer 6,4 Din 134 270 Add to Cart
8 260657 Rubber Buffer 25x20xm6 18300 Add to Cart
9 922242 Angular Tube 46900 Add to Cart
10 853515 Clamp 16/9 3600 Add to Cart
11 956231 Oil Line 140 Mm 20900 Add to Cart
12 951260 Clamp 14 3200 Add to Cart
13 956330 Oil Filter 27300 Add to Cart
14 956233 Oil Line 450 Mm 42000 Add to Cart
15 227900 Washer 6,2/20/2 1200 Add to Cart
16 842042 Lock Nut M6 520 Add to Cart
17 851230 Oil Tank Bracket Upper Half 50700 Add to Cart
18 851235 Oiltank Bracket Lower Half 115400 Add to Cart
19 842042 Lock Nut M6 520 Add to Cart
20 244211 Washer 6,4 Din 134 270 Add to Cart
21 944092 Shim 8,2 69600 Add to Cart
22 960865 Rubber Washer 18/26/3 1700 Add to Cart
23 827817 Cup Washer 7900 Add to Cart
24 847796 Spacer 8,4/12/7,5 19900 Add to Cart
