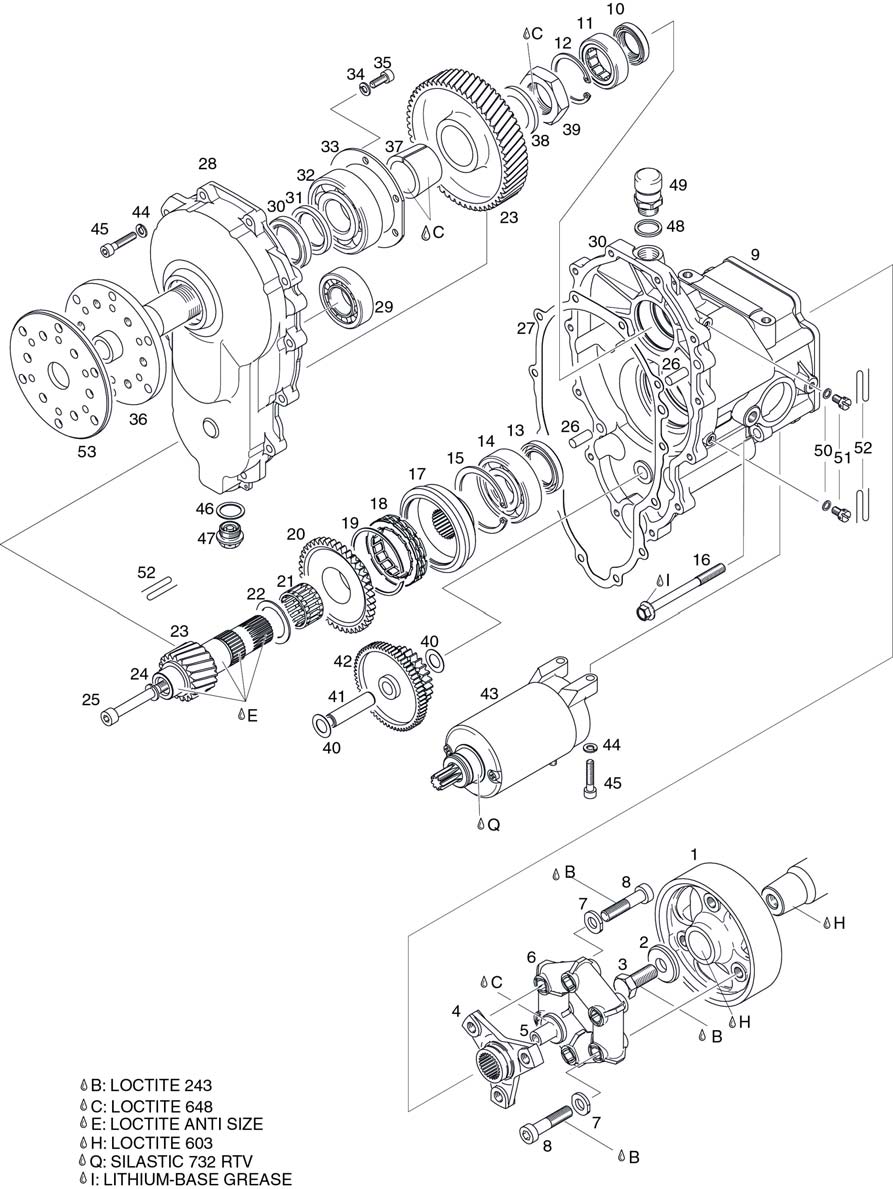

fig. 72-10-00-3
REDUCTION GEARBOX “E”: I=2.62, I=3.00, I=3.47 OR I=4.00 For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 958981 | Fly Wheel | 963500 | Add to Cart |
| 2 | 827788 | Washer 13/34/5 | 61000 | Add to Cart |
| 3 | 841652 | Hex. Screw 1/2-2ounfx1 3/16 | 16200 | Add to Cart |
| 4 | 958972 | Coupling Flange | 1407600 | Add to Cart |
| 5 | 842661 | Nut M8 | 142500 | Add to Cart |
| 6 | 958964 | Rubber Coupling | 1894100 | Add to Cart |
| 7 | 944120 | Washer | 3200 | Add to Cart |
| 8 | 841820 | Allen Screw M10x45 | 5400 | Add to Cart |
| 9 | 810351 | Gearbox Housing | 1659800 | Add to Cart |
| 10 | 930675 | Oil Seal 25x38x7 | 10600 | Add to Cart |
| 11 | 232287 | Roller Bearing 26,5-47-14 | 694800 | Add to Cart |
| 12 | 945690 | Retaining Ring 47x1,75 | 5800 | Add to Cart |
| 13 | 950084 | Oil Seal, 32x47x7 | 107200 | Add to Cart |
| 14 | 932820 | Ball Bearing 6305 C3 / 25-62-17 | 108600 | Add to Cart |
| 15 | 445070 | Retaining Ring 62x2 | 5800 | Add to Cart |
| 16 | 440367 | Collar Hex. Screw M8x90 A/f 11 | 47000 | Add to Cart |
| 17 | 852430 | Sprag Clutch Housing | 1677800 | Add to Cart |
| 18 | 259077 | Sprag Clutch 45,665x62,332x13 | 489000 | Add to Cart |
| 19 | 245620 | Snapring 62 | 7700 | Add to Cart |
| 20 | 834280 | Free Wheel Gear 42 T | 1833800 | Add to Cart |
| 21 | 832410 | Needle Cage K 28x34x20h | 62700 | Add to Cart |
| 22 | 427236 | Thrust Washer 28,25/39,8/1,5 | 2600 | Add to Cart |
| 23- | 886751 | Gear Set E 2,62 | 4951300 | Add to Cart |
| 23- | 886753 | Gear Set E 3,0 | 5509500 | Add to Cart |
| 23- | 886755 | Gear Set E 3.47 | 6461000 | Add to Cart |
| 23- | 886757 | Gear Set E 4,0 | 5335600 | Add to Cart |
| 24 | 845310 | Lock Washer Vhz 8 | 550 | Add to Cart |
| 25 | 840062 | Alen M8x80 | 13400 | Add to Cart |
| 26 | 929940 | Pin 8x20 | 2300 | Add to Cart |
| 27 | 950215 | Gasket | 31600 | Add to Cart |
| 28 | 810361 | Gear Cover | 609500 | Add to Cart |
| 29 | 232244 | Zr-bearing Nj 205 | 1197500 | Add to Cart |
| 30 | 930715 | Oil Seal 35x47x7 | 14100 | Add to Cart |
| 31 | 944111 | Distance Ring 31/44/4,5 | 168900 | Add to Cart |
| 32 | 932570 | Ball Bearing 6306 C3, 30-72-19 | 174200 | Add to Cart |
| 33 | 944106 | Shim | 64200 | Add to Cart |
| 34 | 445330 | Lock Washer Vhz 6 | 470 | Add to Cart |
| 35 | 241237 | Allen Screw M6x16 | 320 | Add to Cart |
| 36 | 837186 | Propeller Shaft | 2421800 | Add to Cart |
| 37 | 847757 | Splitted Cone Sleeve 1:10 | 1377900 | Add to Cart |
| 38 | 926201 | Massive Washer 30/44/5 | 83600 | Add to Cart |
| 39 | 842579 | Hex. Nut M30x1.5 12mm, Lh | 118400 | Add to Cart |
| 40 | 227450 | Thrust Washer 12,5/21,5/0,5 | 2300 | Add to Cart |
| 41 | 837302 | Idle Gear Shaft | 244800 | Add to Cart |
| 42 | 834290 | Idle Gear 62/25 Z | 2077100 | Add to Cart |
| 43 | 685975 | Electric Starter Assy | 1836800 | Add to Cart |
| 44 | 945831 | Lock Washer A6 Din 128 | 320 | Add to Cart |
| 45 | 840887 | Allen Screw M6x30 Din 912 | 2300 | Add to Cart |
| 46 | 552280 | Gasket Ring 18,2/24/1 | 1800 | Add to Cart |
| 47 | 840270 | Magnetic Plug M18x1,5 | 57300 | Add to Cart |
| 48 | 931200 | Gasket Ring 18,2/22/2 | 9300 | Add to Cart |
| 49 | 941115 | Air Vent Screw M18x1,5 | 89300 | Add to Cart |
| 50 | 230415 | Gasket Ring A 6x10 Din 7603 | 450 | Add to Cart |
| 51 | 841782 | Capstan Screw M6x10 | 28800 | Add to Cart |
| 52 | 0 | Add to Cart | ||
| 53 | 944140 | Cover Washer | 290400 | Add to Cart |
