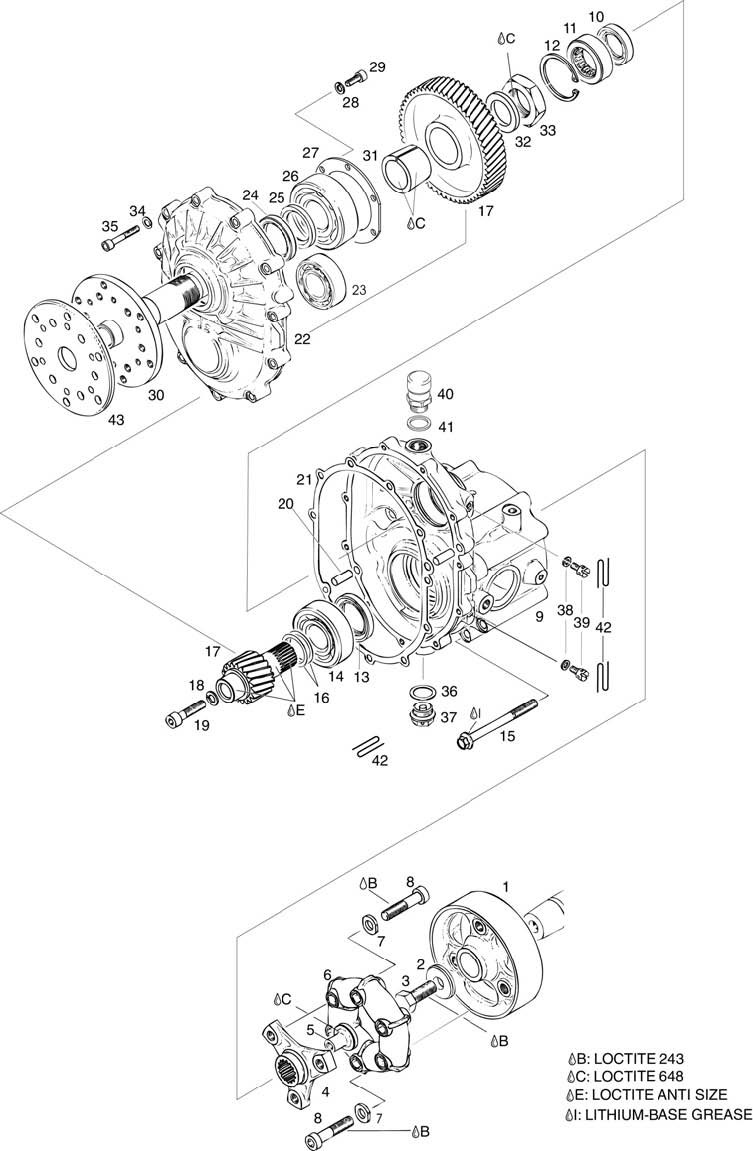

fig. 72-10-00-2
REDUCTION GEARBOX “C”: I= 2.62, I= 3.00, I= 3.47 OR I= 4.00 For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 958981 | Fly Wheel | 671300 | Add to Cart |
| 2 | 827788 | Washer 13/34/5 | 42900 | Add to Cart |
| 3 | 841652 | Hex. Screw 1/2-2ounfx1 3/16 | 11600 | Add to Cart |
| 4 | 958972 | Coupling Flange | 894300 (1) | Add to Cart |
| 5 | 842661 | Nut M8 | 76900 | Add to Cart |
| 6 | 958964 | Rubber Coupling | 997100 | Add to Cart |
| 7 | 944120 | Washer | 2000 | Add to Cart |
| 8 | 841820 | Allen Screw M10x45 | 2900 | Add to Cart |
| 9 | 810012 | Gear Box Housing | 1015600 | Add to Cart |
| 10 | 930675 | Oil Seal 25x38x7 | 7500 | Add to Cart |
| 11 | 232287 | Roller Bearing 26,5-47-14 | 479700 (1) | Add to Cart |
| 12 | 945690 | Retaining Ring 47x1,75 | 3200 | Add to Cart |
| 13 | 950084 | Oil Seal, 32x47x7 | 75500 | Add to Cart |
| 14 | 932820 | Ball Bearing 6305 C3 / 25-62-17 | 58600 | Add to Cart |
| 15 | 440367 | Collar Hex. Screw M8x90 A/f 11 | 33000 (1) | Add to Cart |
| 16 | 427021 | Shim 26,5/34/0,2 | 7300 | Add to Cart |
| 17- | 886211 | Gear Set C 2,62 | 1617400 (1) | Add to Cart |
| 17- | 886282 | Gear Set C 3,0 | 2178800 | Add to Cart |
| 17- | 886284 | Gear Set C 3,47 | 2191000 | Add to Cart |
| 17- | 886217 | No Longer Available | 0 | Add to Cart |
| 18 | 845310 | Lock Washer Vhz 8 | 720 | Add to Cart |
| 19 | 841594 | Allen Screw M8x35 | 1800 (1) | Add to Cart |
| 20 | 929940 | Pin 8x20 | 1200 | Add to Cart |
| 21 | 950211 | Gasket | 19600 | Add to Cart |
| 22 | 810021 | Gear Cover | 187600 | Add to Cart |
| 23 | 932420 | Ball Bearing 6205 C3, 25-52-15 | 42900 | Add to Cart |
| 24 | 930715 | Oil Seal 35x47x7 | 9900 | Add to Cart |
| 25 | 944111 | Distance Ring 31/44/4,5 | 91100 | Add to Cart |
| 26 | 932570 | Ball Bearing 6306 C3, 30-72-19 | 98300 | Add to Cart |
| 27 | 944106 | Shim | 29200 | Add to Cart |
| 28 | 445330 | Lock Washer Vhz 6 | 470 | Add to Cart |
| 29 | 241237 | Allen Screw M6x16 | 270 | Add to Cart |
| 30 | 837186 | Propeller Shaft | 1609700 (1) | Add to Cart |
| 31 | 847757 | Splitted Cone Sleeve 1:10 | 547500 | Add to Cart |
| 32 | 926201 | Massive Washer 30/44/5 | 58800 | Add to Cart |
| 33 | 842579 | Hex. Nut M30x1.5 12mm, Lh | 65800 | Add to Cart |
| 34 | 945831 | Lock Washer A6 Din 128 | 270 | Add to Cart |
| 35 | 840888 | Allen Screw M6x30 Din 912 | 720 | Add to Cart |
| 36 | 552280 | Gasket Ring 18,2/24/1 | 470 | Add to Cart |
| 37 | 840270 | Magnetic Plug M18x1,5 | 32100 | Add to Cart |
| 38 | 230415 | Gasket Ring A 6x10 Din 7603 | 230 | Add to Cart |
| 39 | 841782 | Capstan Screw M6x10 | 20300 (1) | Add to Cart |
| 40 | 941115 | Air Vent Screw M18x1,5 | 39100 | Add to Cart |
| 41 | 931200 | Gasket Ring 18,2/22/2 | 5600 | Add to Cart |
| 42 | 0 | Add to Cart | ||
| 43 | 944140 | Cover Washer | 156600 | Add to Cart |
