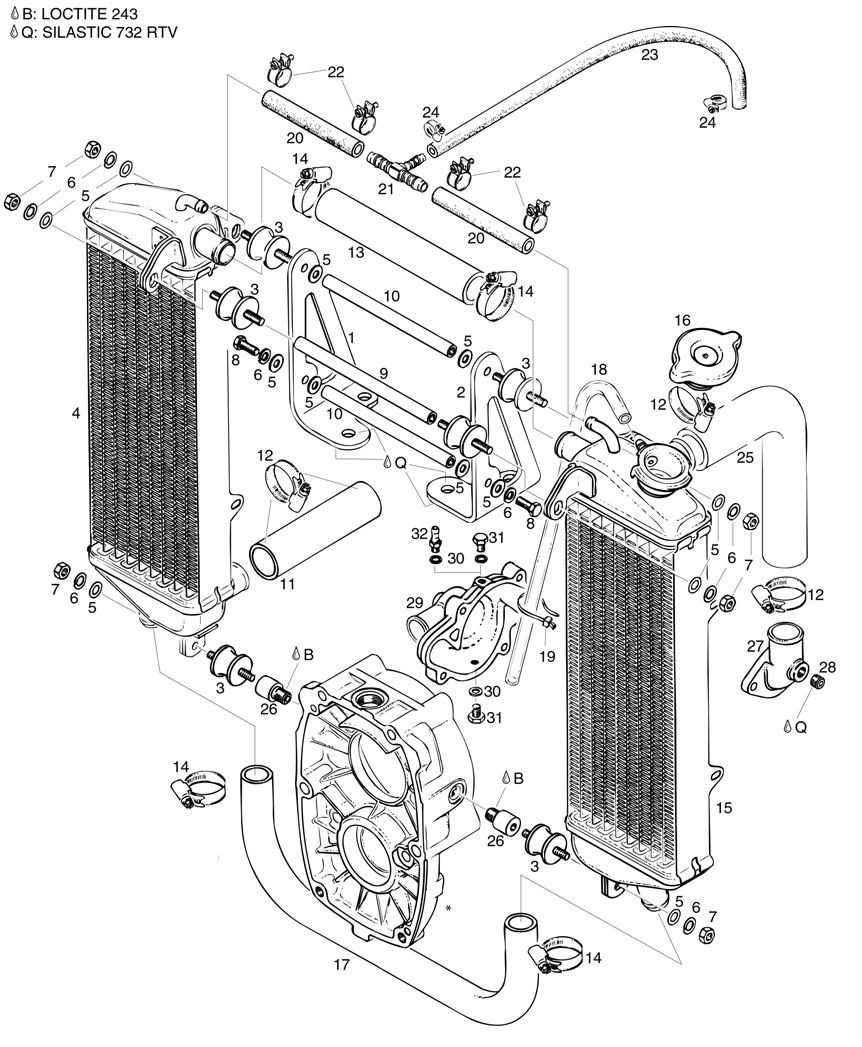

fig. 75-20-00-2
2-PIECE RADIATOR SET (HIGH CONFIGURATION) For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-25 | 881433 | Dual Radiator Set | 5592000 | Add to Cart |
| 1 | 851122 | Radiator Bracket Right, Long | 130900 | Add to Cart |
| 2 | 851127 | Radiator Bracket Left, Long | 130900 | Add to Cart |
| 3 | 260657 | Rubber Buffer 25x20xm6 | 28700 | Add to Cart |
| 4 | 686330 | Radiator Without Filler Cap | 1062700 | Add to Cart |
| 5 | 244211 | Washer 6,4 Din 134 | 500 | Add to Cart |
| 6 | 945831 | Lock Washer A6 Din 128 | 360 | Add to Cart |
| 7 | 242214 | Hex.nut M6 | 360 | Add to Cart |
| 8 | 241187 | Hex.screw M6x16 | 360 | Add to Cart |
| 9 | 847600 | Distance Tube, 141 Mm | 609800 | Add to Cart |
| 10 | 847605 | Distance Bolt, 131 Mm | 413700 | Add to Cart |
| 11 | 922117 | Connecting Hose 110 Mm | 26800 | Add to Cart |
| 12 | 951880 | Clamp 20-32 | 12400 | Add to Cart |
| 13 | 922124 | Connecting Hose 150 Mm | 42200 | Add to Cart |
| 14 | 951870 | Clamp 16-25 | 11700 | Add to Cart |
| 15 | 686335 | Radiator With Filler Cap | 1184800 | Add to Cart |
| 16 | 922072 | Radiator Cap W/ Gasket, 1.2 Bar | 150600 | Add to Cart |
| 17 | 922193 | Water Tube | 38800 | Add to Cart |
| 18 | 974530 | Fuel Hose A5x8 | 39300 | Add to Cart |
| 19 | 866710 | Clamp 142x2,5 Mm | 80 | Add to Cart |
| 20 | 956260 | Low Pressure Hose Gc 7,5 X 12,5 | 98100 | Add to Cart |
| 21 | 974839 | Reduction T-peace 8-6-8 | 27900 | Add to Cart |
| 22 | 951241 | Screw Hose Clamp 12 | 7400 | Add to Cart |
| 23 | 860300 | Low Pressure Hose, Per Meter | 116900 | Add to Cart |
| 24 | 951898 | Clamp 7-11 | 19800 | Add to Cart |
| 25 | 922382 | Bent Hose 25/90 Degr. | 48300 | Add to Cart |
| 26 | 847730 | Spacer 6,5/18/9 | 97400 | Add to Cart |
| 27 | 922061 | Bent Outlet Socket | 101800 | Add to Cart |
| 28 | 240481 | Plug Screw 1/8-27npt | 15500 | Add to Cart |
| 29 | 922503 | Water Pump Housing | 1448700 | Add to Cart |
| 30 | 230415 | Gasket Ring A 6x10 Din 7603 | 500 | Add to Cart |
| 31 | 841581 | Hex. Screw M6x8 | 360 | Add to Cart |
| 32 | 940551 | Hose Nipple, M6 | 120300 | Add to Cart |
