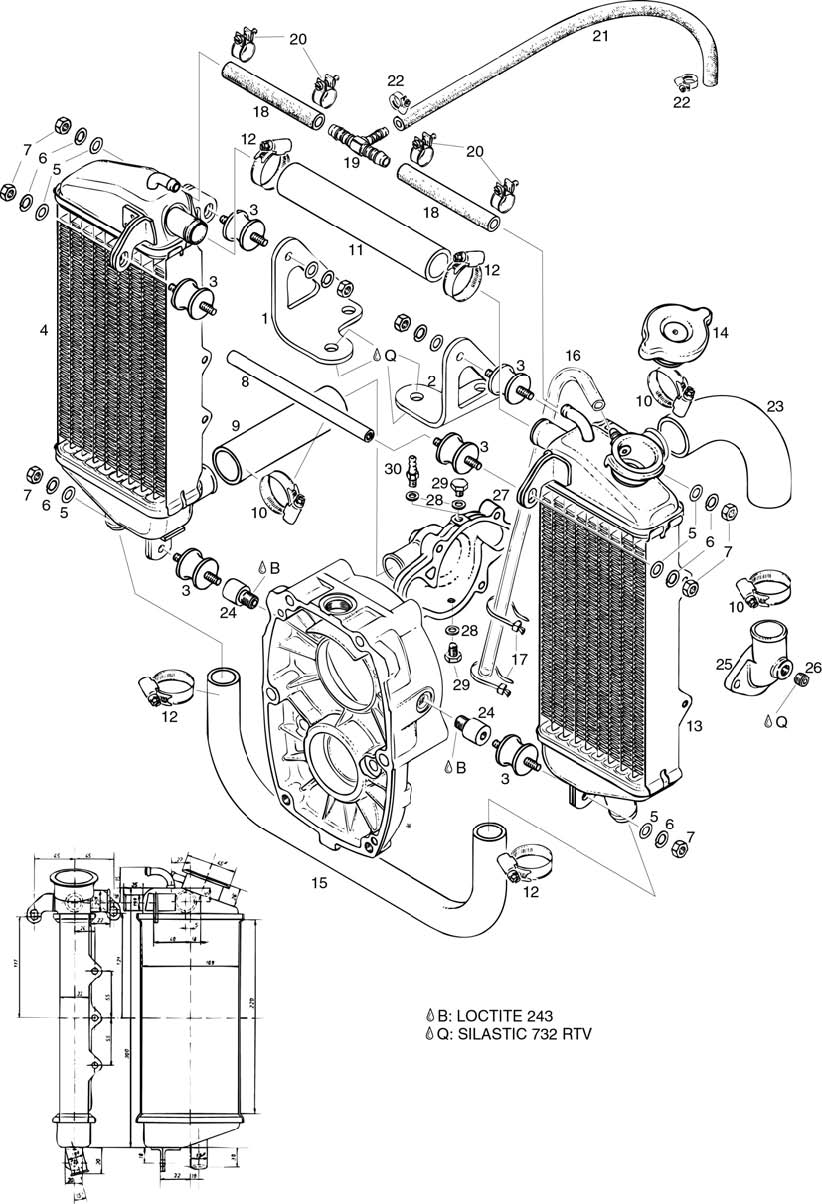

fig. 75-20-00-1
2-PIECE RADIATOR SET (LOW CONFIGURATION) For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-23 | 881433 | Dual Radiator Set | 2178600 | Add to Cart |
| 1 | 851120 | Radiator Bracket Right, Short | 10000 | Add to Cart |
| 2 | 851125 | Radiator Bracket Left, Short | 10700 | Add to Cart |
| 3 | 260657 | Rubber Buffer 25x20xm6 | 18300 | Add to Cart |
| 5 | 244211 | Washer 6,4 Din 134 | 270 | Add to Cart |
| 6 | 945831 | Lock Washer A6 Din 128 | 270 | Add to Cart |
| 7 | 242214 | Hex.nut M6 | 300 (1) | Add to Cart |
| 8 | 847600 | Distance Tube, 141 Mm | 234900 | Add to Cart |
| 9 | 922117 | Connecting Hose 110 Mm | 16800 (1) | Add to Cart |
| 10 | 951880 | Clamp 20-32 | 4800 | Add to Cart |
| 11 | 922124 | Connecting Hose 150 Mm | 25400 | Add to Cart |
| 12 | 951870 | Clamp 16-25 | 4600 | Add to Cart |
| 14 | 922076 | Radiator Cap W/ Gasket, 0.9 Bar | 54900 (1) | Add to Cart |
| 15 | 922193 | Water Tube | 24200 | Add to Cart |
| 16 | 974530 | Fuel Hose A5x8 | 24700 | Add to Cart |
| 17 | 866710 | Clamp 142x2,5 Mm | 110 | Add to Cart |
| 18 | 956260 | Low Pressure Hose Gc 7,5 X 12,5 | 61600 | Add to Cart |
| 19 | 974839 | Reduction T-peace 8-6-8 | 17800 | Add to Cart |
| 20 | 951241 | Screw Hose Clamp 12 | 2900 | Add to Cart |
| 21 | 860300 | Low Pressure Hose, Per Meter | 73500 | Add to Cart |
| 22 | 951898 | Clamp 7-11 | 7600 | Add to Cart |
| 23 | 922113 | Bent Hose | 102600 | Add to Cart |
| 24 | 847730 | Spacer 6,5/18/9 | 46900 | Add to Cart |
| 25 | 922061 | Bent Outlet Socket | 63300 | Add to Cart |
| 26 | 240481 | Plug Screw 1/8-27npt | 9500 | Add to Cart |
| 27 | 922503 | Water Pump Housing | 757800 | Add to Cart |
| 28 | 230415 | Gasket Ring A 6x10 Din 7603 | 230 | Add to Cart |
| 29 | 841581 | Hex. Screw M6x8 | 270 | Add to Cart |
| 30 | 940551 | Hose Nipple, M6 | 77900 | Add to Cart |
