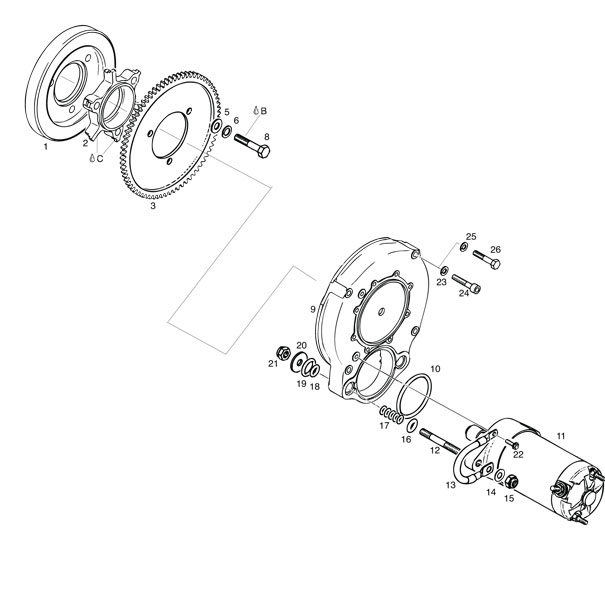

fig. 80-10-00-2
ELECTRIC STARTER, CONFIGURATION MAGNETO SIDE For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 965499 | Hydro Damper Assy., | 1174500 | Add to Cart |
| 2 | 852378 | Starter Gear Adapter | 53400 | Add to Cart |
| 3 | 834053 | Starter Gear 61 T., | 1021800 | Add to Cart |
| 4 | 250315 | Washer 8,4 | 240 | Add to Cart |
| 5 | 945832 | Lock Washer A8 | 240 | Add to Cart |
| 6 | 940616 | Hex. Screw M8x40 | 930 | Add to Cart |
| 7-20 | 995928 | 582 / 618 Electric Start Kit | 1953100 | Add to Cart |
| 7 | 910731 | Starter Cover | 78000 | Add to Cart |
| 8 | 850390 | O-ring 60-4 | 930 | Add to Cart |
| 9 | 995431 | Electric Starter Assy | 1052400 | Add to Cart |
| 10 | 841950 | Stud M8x43/23 | 9100 | Add to Cart |
| 11 | 966031 | Mass Cable 80 Mm Assy., | 79400 | Add to Cart |
| 12 | 944038 | Washer 8,4/14/1 | 10700 | Add to Cart |
| 13 | 942031 | Lock Nut M8 | 490 | Add to Cart |
| 14 | 850586 | O-ring 8x5 | 24200 | Add to Cart |
| 15 | 230260 | O-ring 6x3 | 240 | Add to Cart |
| 16 | 850580 | O-ring 8x4 | 490 | Add to Cart |
| 17 | 850590 | O-ring 16-4 | 490 | Add to Cart |
| 18 | 827910 | Washer 8,2/26,3/2 | 2800 | Add to Cart |
| 19 | 942031 | Lock Nut M8 | 490 | Add to Cart |
| 20 | 0 | Add to Cart | ||
| 21 | 445331 | Lock Washer Vhz 6 | 240 | Add to Cart |
| 22 | 240632 | Hex. Screw M6x40 | 5400 | Add to Cart |
