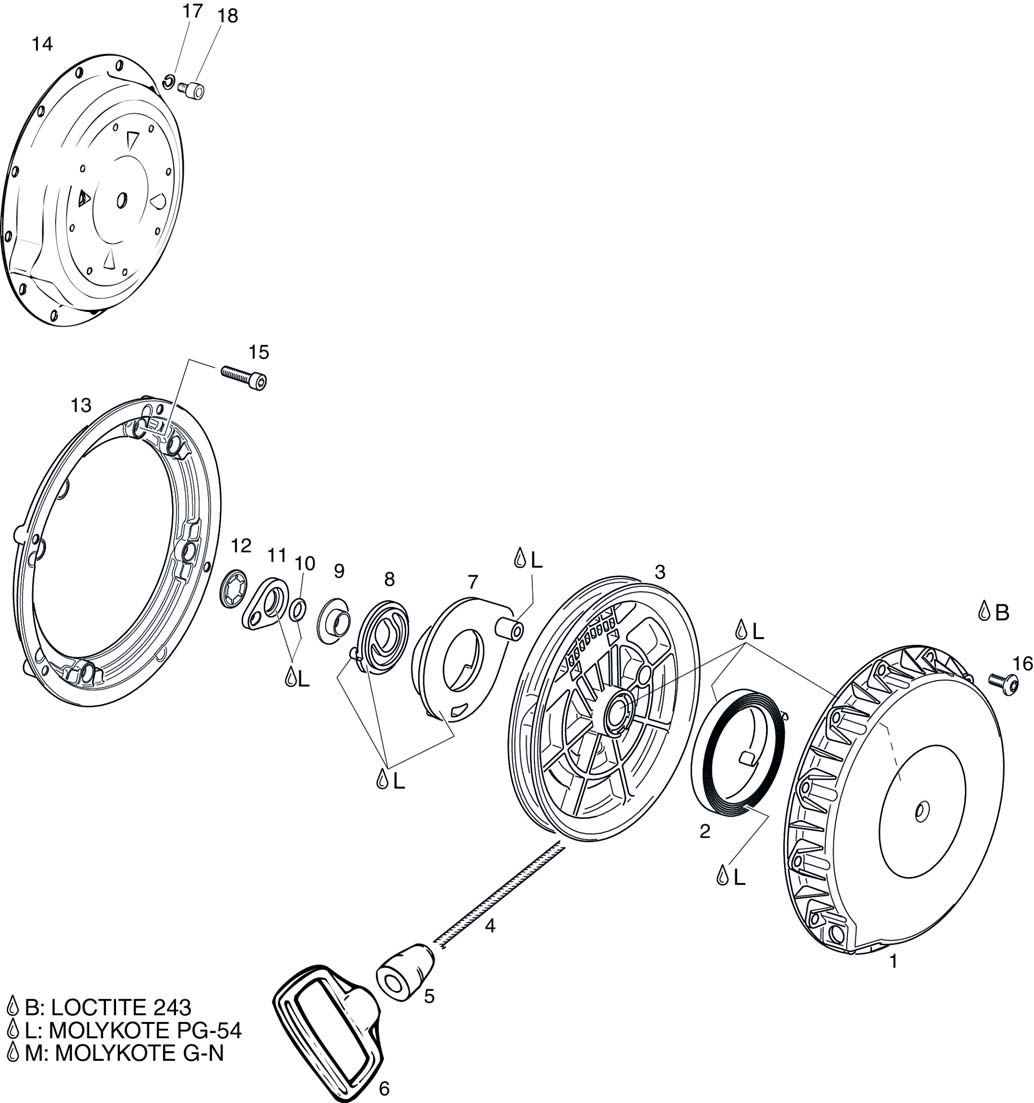

fig. 80-10-00-1
REWIND STARTER For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-12 | 892800 | Rewind Starter Assy. | 342100 | Add to Cart |
| 1-12 | 892802 | Rewind Starter Set | 764600 | Add to Cart |
| 1 | 910251 | Starter Housing | 56400 | Add to Cart |
| 2 | 939115 | Rewind Spring Assy. | 58300 | Add to Cart |
| 3 | 852286 | Rope Sheave | 117900 | Add to Cart |
| 4 | 0 | Add to Cart | ||
| 5 | 960415 | Rubber Buffer | 5800 | Add to Cart |
| 6 | 852177 | Starter Grip | 34300 | Add to Cart |
| 7 | 852633 | Pawl | 57400 | Add to Cart |
| 8 | 852305 | Pawl Lock | 4400 | Add to Cart |
| 9 | 847926 | Step Colar | 38800 | Add to Cart |
| 10 | 250400 | O-ring | 270 | Add to Cart |
| 11 | 852520 | Lock Lever | 2000 | Add to Cart |
| 12 | 845560 | Fastener | 2500 | Add to Cart |
| 13 | 810866 | Connecting Flange | 77100 | Add to Cart |
| 14 | 810380 | No Longer Available | 0 | Add to Cart |
| 15 | 241232 | Allen Screw M6x16 | 990 | Add to Cart |
| 16 | 441386 | Torx-taptite-screw M6x20 T30 | 1200 (1) | Add to Cart |
| 17 | 945831 | Lock Washer A6 Din 128 | 270 | Add to Cart |
| 18 | 241237 | Allen Screw M6x16 | 270 | Add to Cart |
| 0 | Add to Cart |
