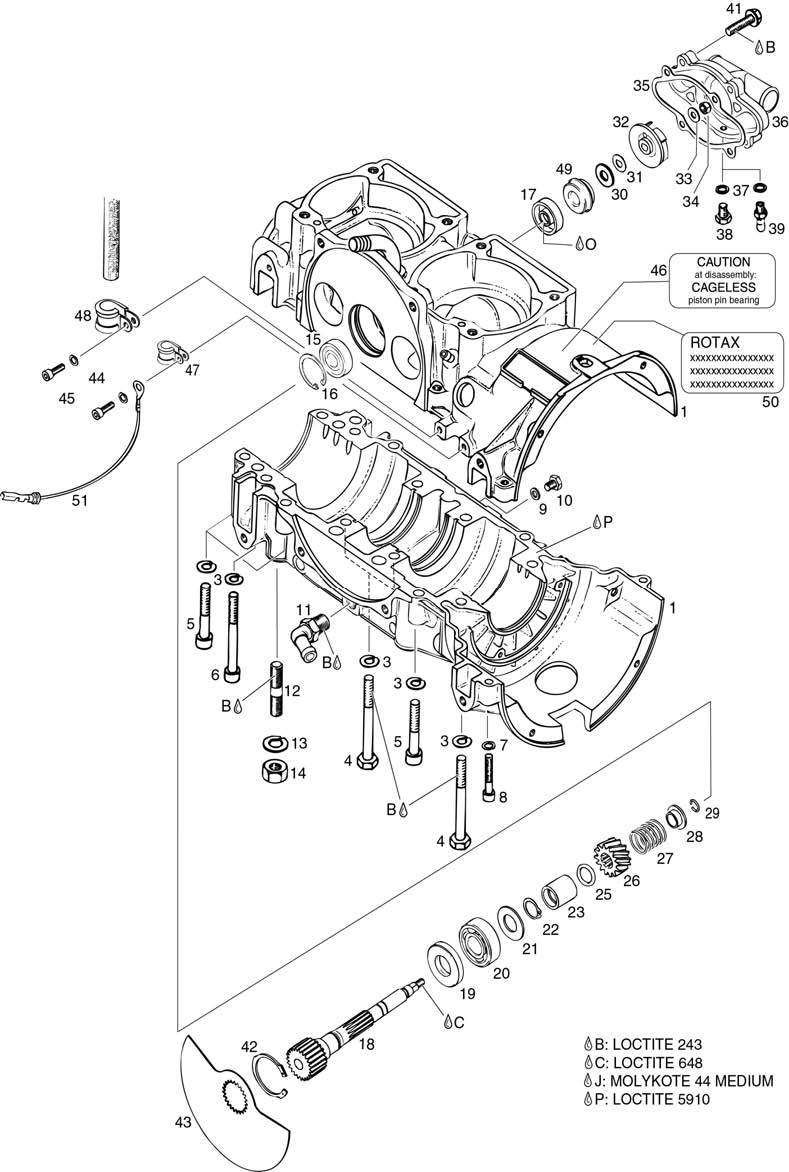

fig. 72-20-00-1
CRANKCASE, ROTARY VALVE DRIVE, WATER PUMP For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-12 | 888471 | Crankcase-assy. | 1656300 | Add to Cart |
| 1-29,42 | 888476 | Crankcase-assy. With Rotary Valve Gear | 2530600 | Add to Cart |
| 3 | 945832 | Lock Washer A8 | 270 | Add to Cart |
| 4 | 841302 | Hex. Screw M8x65 | 2200 | Add to Cart |
| 5 | 841562 | Allen Screw M8 X 45 | 1500 | Add to Cart |
| 6 | 841832 | Allen Screw M8x75 | 2400 | Add to Cart |
| 7 | 945831 | Lock Washer A6 Din 128 | 270 | Add to Cart |
| 8 | 241814 | Allen Screw, M6x35 | 970 (1) | Add to Cart |
| 9 | 230415 | Gasket Ring A 6x10 Din 7603 | 230 | Add to Cart |
| 10 | 240772 | Hex.screw M6x10 | 460 | Add to Cart |
| 11 | 922242 | Angular Tube | 46900 | Add to Cart |
| 12 | 940190 | Stud M10x29/20 | 3600 | Add to Cart |
| 13 | 945833 | Lock Washer A10 | 460 | Add to Cart |
| 14 | 242092 | Hex.nut M10 | 520 (1) | Add to Cart |
| 15 | 932797 | B. Bearing 6201-z, 12-32-10 | 18300 | Add to Cart |
| 16 | 245420 | Retaining Ring 32x1,2 | 1700 | Add to Cart |
| 17 | 850711 | Oil Seal 10x30x8 | 5700 | Add to Cart |
| 18 | 837250 | Rotary Shaft 582/99 | 756700 | Add to Cart |
| 19 | 930580 | Oil Seal 20x40x7 | 7200 | Add to Cart |
| 20 | 932032 | Ball Bear. 6203 Tvh C3,17-40-12 | 30600 | Add to Cart |
| 21 | 227439 | Shim 17,2/32,5/1,5 | 7600 | Add to Cart |
| 22 | 845450 | Retaining Ring 17x1 | 460 | Add to Cart |
| 23 | 847282 | Spacer | 32500 | Add to Cart |
| 25 | 831500 | O-ring 14-3 | 270 | Add to Cart |
| 26 | 935736 | Rotary Valve Gear 14 T. | 76700 | Add to Cart |
| 27 | 938810 | Compression Spring 25,1 Mm | 4600 | Add to Cart |
| 28 | 827430 | Spring Holding Cup | 9500 | Add to Cart |
| 29 | 845160 | Circlip 12 | 970 | Add to Cart |
| 30 | 227945 | Thrust Washer 8,1/15/0,5 | 710 | Add to Cart |
| 31 | 227155 | Friction Washer | 30100 | Add to Cart |
| 32 | 922036 | Impeller 582/618 | 6000 | Add to Cart |
| 33 | 244211 | Washer 6,4 Din 134 | 270 | Add to Cart |
| 34 | 842042 | Lock Nut M6 | 520 | Add to Cart |
| 35 | 831616 | Impeller Gasket | 6700 | Add to Cart |
| 36 | 922503 | Water Pump Housing | 757800 | Add to Cart |
| 37 | 230415 | Gasket Ring A 6x10 Din 7603 | 230 | Add to Cart |
| 38 | 841581 | Hex. Screw M6x8 | 270 | Add to Cart |
| 39 | 940551 | Hose Nipple, M6 | 77900 | Add to Cart |
| 41 | 240035 | Hex Screw M6x25 | 4300 (1) | Add to Cart |
| 42 | 945880 | Retaining Ring 40x1,75 | 2800 | Add to Cart |
| 43 | 924504 | Rotary Valve 132 Degr., | 44100 | Add to Cart |
| 44 | 945830 | Lock Washer A5 | 270 | Add to Cart |
| 45 | 840514 | Allen Screw M5x16 | 270 | Add to Cart |
| 46 | 897280 | "cageless"-label | 230 | Add to Cart |
| 47 | 851111 | Cable Clamp 8/m5 | 45800 | Add to Cart |
| 48 | 851113 | Clamp 18/m5 | 19900 | Add to Cart |
| 49 | 650370 | Rotary Seal | 46200 | Add to Cart |
| 50 | 897501 | Red Warning Label | 7400 | Add to Cart |
