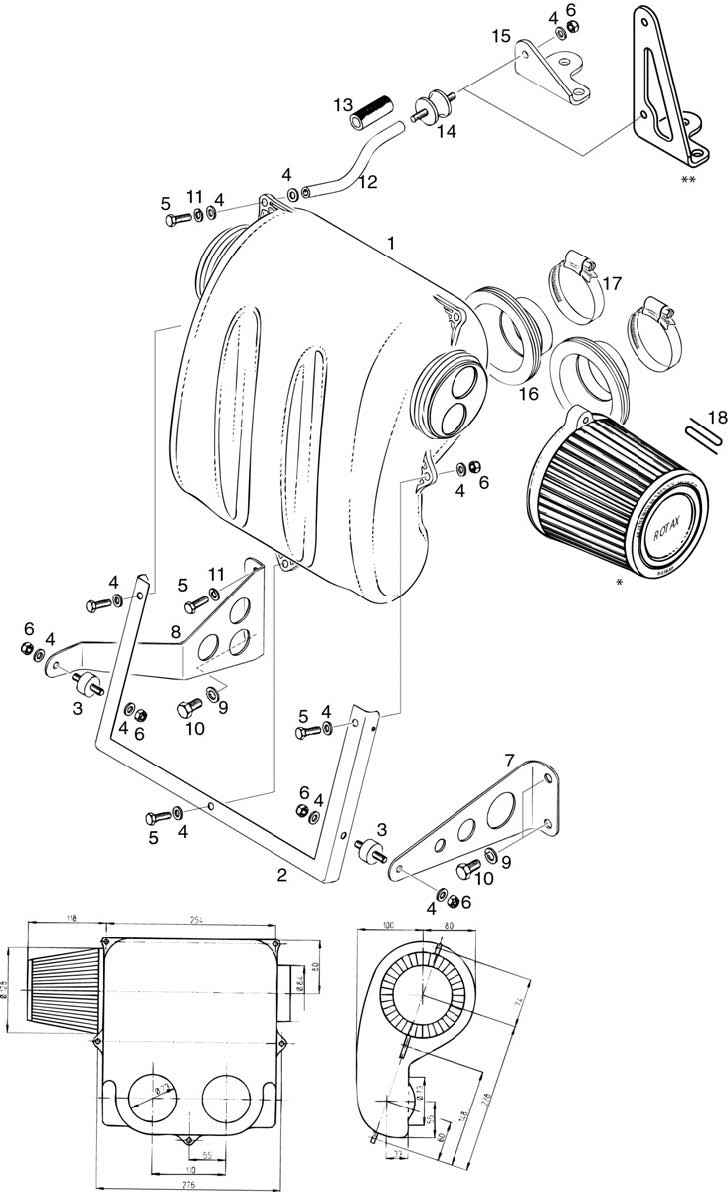

fig. 73-10-00-3
INTAKE SILENCER For ROTAX 582UL
Click on Number to order Part
Fig. | Part Number | Description | Unit/Price | Add to Cart |
---|---|---|---|---|
1-17 | 825743 | Dual Intake Sil.kit W/bkt. | 1186200 | Add to Cart |
1- | 825657 | Intake Silencer Assy., | 423800 | Add to Cart |
1- | 825659 | Intake Silencer Assy., | 421200 | Add to Cart |
2 | 953151 | Frame | 188000 | Add to Cart |
3 | 860700 | Rubber 20x10xm6 | 14300 | Add to Cart |
4 | 244213 | Washer 6,4 | 300 | Add to Cart |
5 | 940563 | Hex. Screw M6x20 | 460 | Add to Cart |
6 | 842042 | Lock Nut M6 | 520 | Add to Cart |
7 | 953166 | Intake Silencer Bracket Ms | 144000 | Add to Cart |
8 | 953163 | Intake Silencer Bracket Pto | 145600 | Add to Cart |
9 | 845382 | Lock Washer A8 | 710 | Add to Cart |
10 | 940583 | Hex. Screw M8x16 Stainless Steel | 2000 | Add to Cart |
11 | 845381 | Lock Washer A6 | 460 | Add to Cart |
12 | 847608 | Distance Bar | 76300 | Add to Cart |
13 | 956236 | Protection Hose | 15200 | Add to Cart |
14 | 260657 | Rubber Buffer 25x20xm6 | 18300 | Add to Cart |
15 | 851129 | Intake Silencer Bracket | 15000 | Add to Cart |
16 | 825662 | Silencer Socket | 54000 | Add to Cart |
17 | 951791 | Clamp 50-70 | 4600 | Add to Cart |
18 | 0 | Add to Cart |
