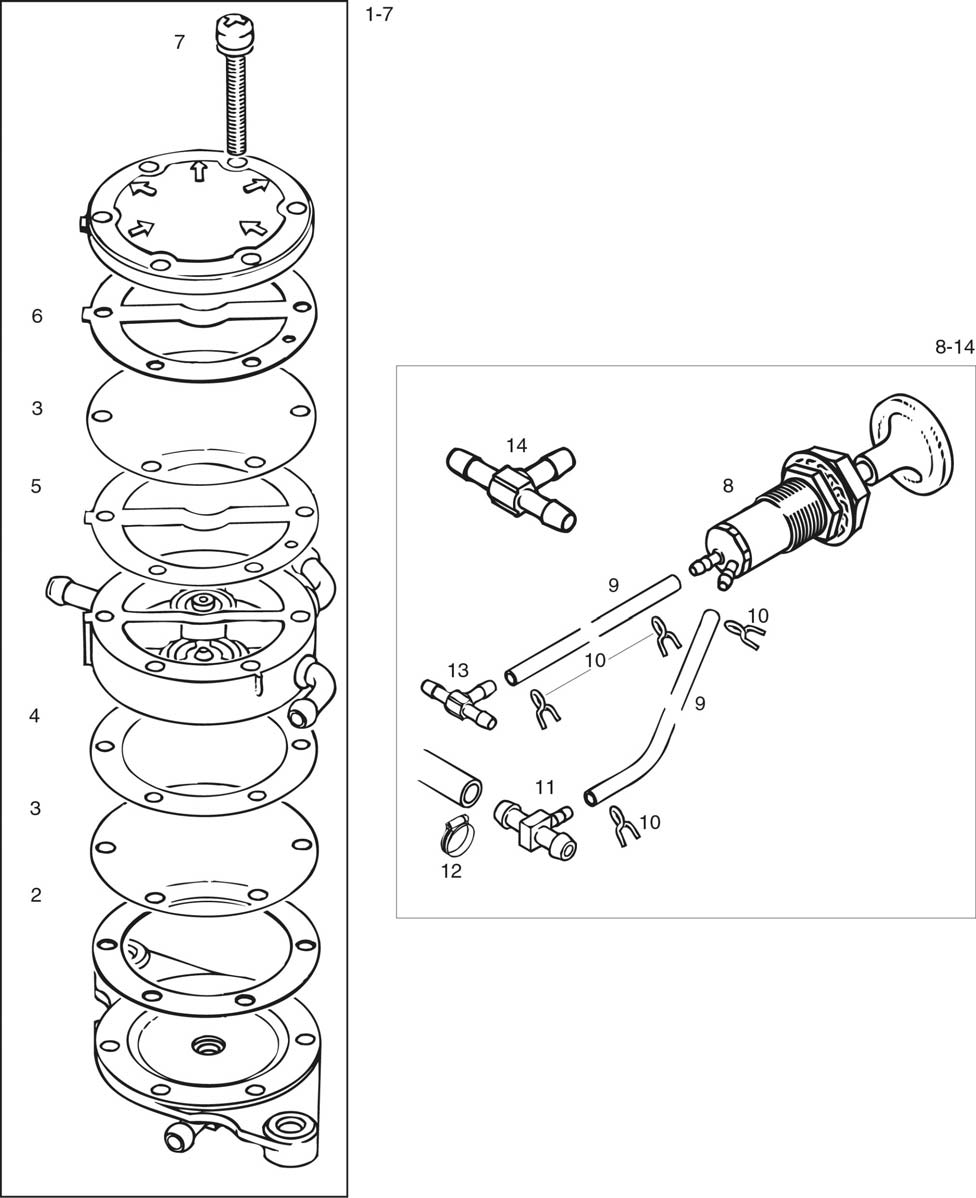

fig. 73-10-00-4
FUEL PUMP, PRIMER-PUMP FOR DOUBLE CARBURETOR For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-7 | 994486 | Fuel Pump, Df 52-48 | 182100 | Add to Cart |
| 2 | 850441 | Gasket | 6100 | Add to Cart |
| 3 | 861210 | Diaphram | 12400 | Add to Cart |
| 4 | 850445 | Gasket | 6100 | Add to Cart |
| 5 | 850447 | Gasket | 10600 (1) | Add to Cart |
| 6 | 850451 | Gasket | 6100 | Add to Cart |
| 7 | 841035 | Combined Screw M4x28 | 1800 | Add to Cart |
| 8-14 | 861620 | Primer Kit | 764600 | Add to Cart |
| 8 | 861630 | Primer Pump | 501800 | Add to Cart |
| 9 | 874211 | Fuel Line 3000 Mm | 65800 (1) | Add to Cart |
| 10 | 938195 | Clamp 5 | 9000 | Add to Cart |
| 11 | 974832 | Reduction T-piece 5-3-5 | 6600 | Add to Cart |
| 12 | 951898 | Clamp 7-11 | 7700 | Add to Cart |
| 13 | 974837 | T-piece 3-3-3 | 8500 | Add to Cart |
| 14 | 974830 | T-piece 5-5-5 | 13500 | Add to Cart |
