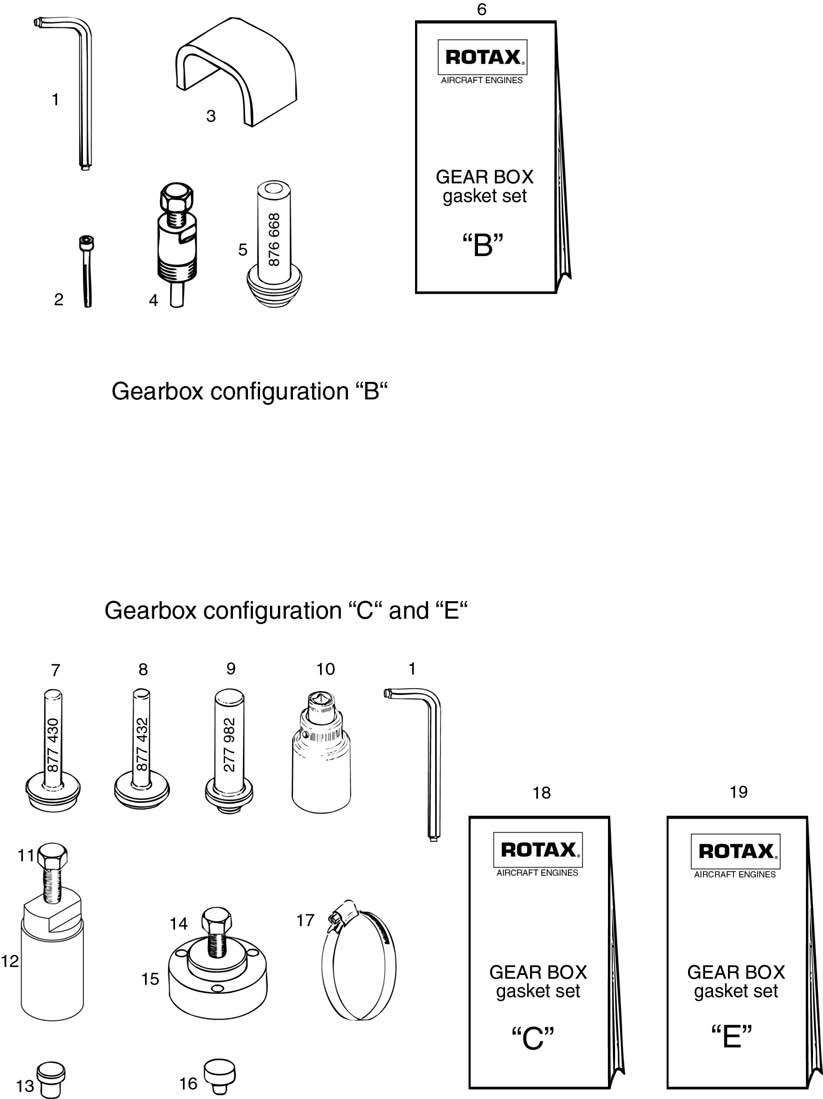

fig. 00-00-00-3
TOOLS P16 AE 2ST 0494 For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 277817 | Allen Key With Pilot, 8 Mm | 31700 | Add to Cart |
| 2 | 241875 | Allen Screw M6x70/45 | 34100 | Add to Cart |
| 3 | 876880 | Mounting Yoke | 21500 | Add to Cart |
| 4 | 276808 | Puller Assy. M 28x1 | 289700 | Add to Cart |
| 5 | 876668 | Insertion Jig Assy., | 152900 | Add to Cart |
| 6 | 995781 | Gasket Set | 111100 | Add to Cart |
| 7 | 877430 | Insertion Jig Assy., | 102600 | Add to Cart |
| 8 | 877432 | Insertion Jig Assy., | 121700 | Add to Cart |
| 9 | 277982 | Insertion Jig Assy., | 226900 | Add to Cart |
| 10 | 877445 | Socket Wrench Assy. 41x12,5 | 375100 | Add to Cart |
| 11-12 | 877379 | Puller Ass`y, | 302100 | Add to Cart |
| 11 | 940755 | Hex. Screw M16x1,5x150 | 80000 | Add to Cart |
| 13 | 877415 | Protection Mushroom | 48900 | Add to Cart |
| 14-15 | 877425 | Flywheel Puller Assy., | 602300 | Add to Cart |
| 14 | 941680 | Hex.screw M16x1,5x56 | 43000 | Add to Cart |
| 16 | 876553 | Protection Mushroom | 18100 | Add to Cart |
| 17 | 0 | Add to Cart | ||
| 18 | 995775 | Gasket Set | 226700 | Add to Cart |
| 19 | 995776 | Gasket Set | 229300 | Add to Cart |
| 20 | 877810 | Tool | 565300 | Add to Cart |
