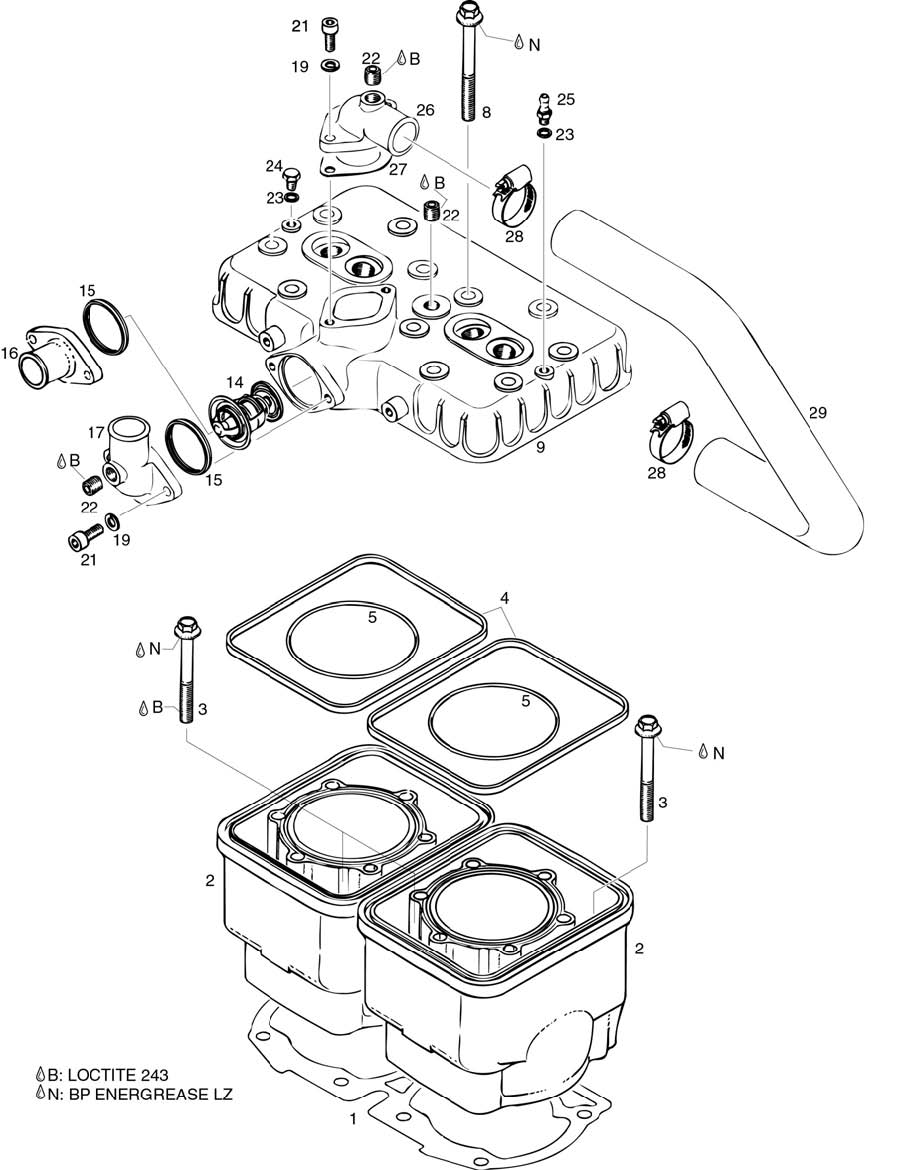

fig. 72-20-00-3
CYLINDER, CYLINDER HEAD For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 850775 | Double Gasket 0,5 Mm | 48100 | Add to Cart |
| 2 | 913448 | 913 448 Use 913 448-1 Or 913 448-2 | 0 | Add to Cart |
| 3 | 640958 | Collar Hex.screw M8x68,5 Sw 11 | 6700 | Add to Cart |
| 4 | 850040 | Rubber Ring 152,5x2,5x5 | 18500 | Add to Cart |
| 5 | 850540 | O-ring 83-2 | 7400 | Add to Cart |
| 8 | 841305 | Collar Hex Screw M8x65 Sw | 60200 | Add to Cart |
| 9- | 913848 | Cylinder Head | 2004700 | Add to Cart |
| 9- | 913848 | Cylinder Head | 2004700 | Add to Cart |
| 14-15 | 922511 | Thermostat With Gasket | 145100 | Add to Cart |
| 15 | 931270 | Thermostat Gasket | 4500 | Add to Cart |
| 16 | 922025 | Water Outlet Socket | 33100 | Add to Cart |
| 17 | 922061 | Bent Outlet Socket | 86000 | Add to Cart |
| 19 | 945831 | Lock Washer A6 Din 128 | 320 | Add to Cart |
| 20 | 242214 | Hex.nut M6 | 320 | Add to Cart |
| 21 | 241939 | Allen Screw M6x20 | 2500 | Add to Cart |
| 22 | 240483 | Plug Screw 1/8-27npt | 48900 | Add to Cart |
| 23 | 230415 | Gasket Ring A 6x10 Din 7603 | 320 | Add to Cart |
| 24 | 841581 | Hex. Screw M6x8 | 320 | Add to Cart |
| 25 | 940551 | Hose Nipple, M6 | 101600 | Add to Cart |
| 26 | 0 | Add to Cart | ||
| 27 | 850339 | Gasket | 13700 | Add to Cart |
| 28 | 951880 | Clamp 20-32 | 12000 | Add to Cart |
| 29 | 922521 | Molded Hose_25/180 Degree | 82500 | Add to Cart |
