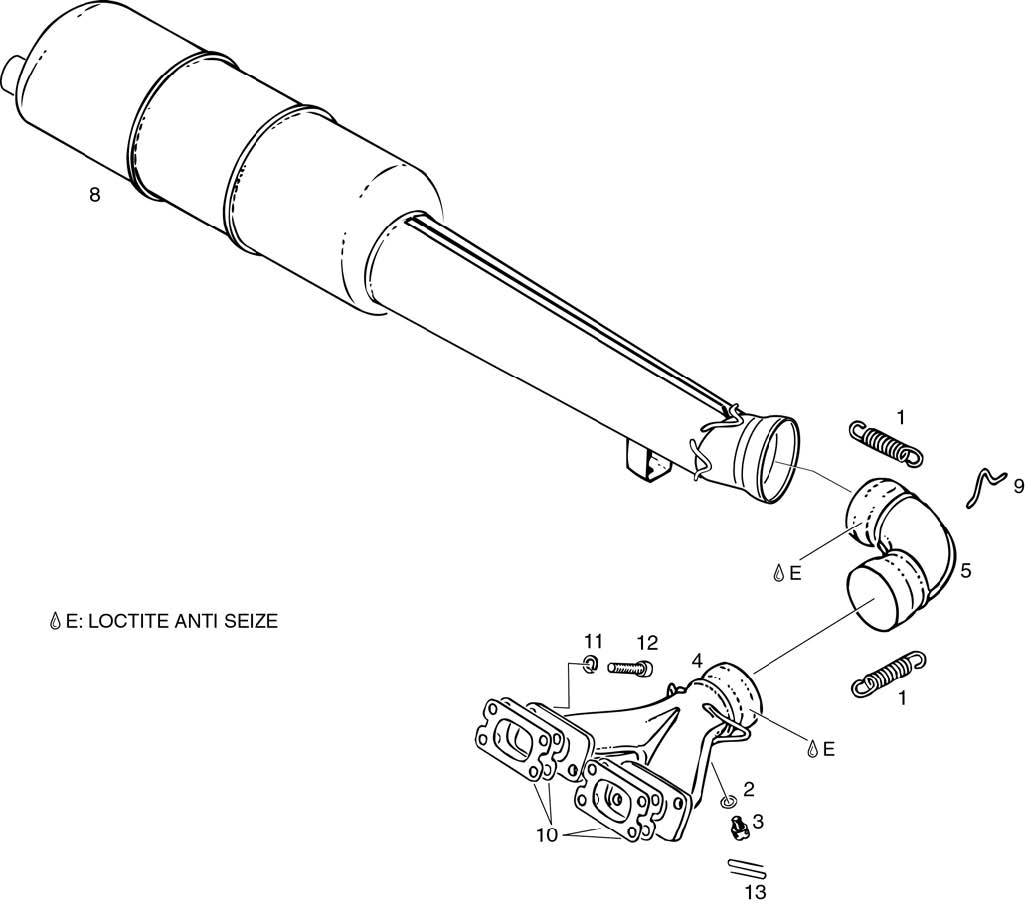

fig. 78-10-00-3
EXHAUST SYSTEM CONFIGURATION: STRAIGHT a Without hooks. b With hooks. c See SI-2ST-002. Parts For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-6 | 881631 | Exhaust Assortment Straight | 4700000 | Add to Cart |
| 1- | 938790 | Return Spring | 12100 | Add to Cart |
| 1- | 0 | Add to Cart | ||
| 2 | 950141 | Gasket Ring A 8x13 Din 7603 | 330 | Add to Cart |
| 3 | 941615 | Capstan Screw M8x1x10 | 13500 | Add to Cart |
| 4a | 973121 | Ex. Mainfold W/egt Taps,582 | 1061000 | Add to Cart |
| 4b | 973123 | Exhaust Manifold Assy. | 1133200 | Add to Cart |
| 5a | 973180 | Connecting Elbow Assy., | 950600 | Add to Cart |
| 5b | 973182 | Connecting Elbow Assy., | 1120200 | Add to Cart |
| 6a | 973192 | Muffler Assy., | 2872100 | Add to Cart |
| 7 | 853355 | Hook | 3900 | Add to Cart |
| 8 | 850633 | Exhaust Gasket | 22700 | Add to Cart |
| 9 | 945832 | Lock Washer A8 | 270 | Add to Cart |
| 10 | 840992 | Allen Screw M8x30 | 1200 | Add to Cart |
| 11 | 0 | Add to Cart |
