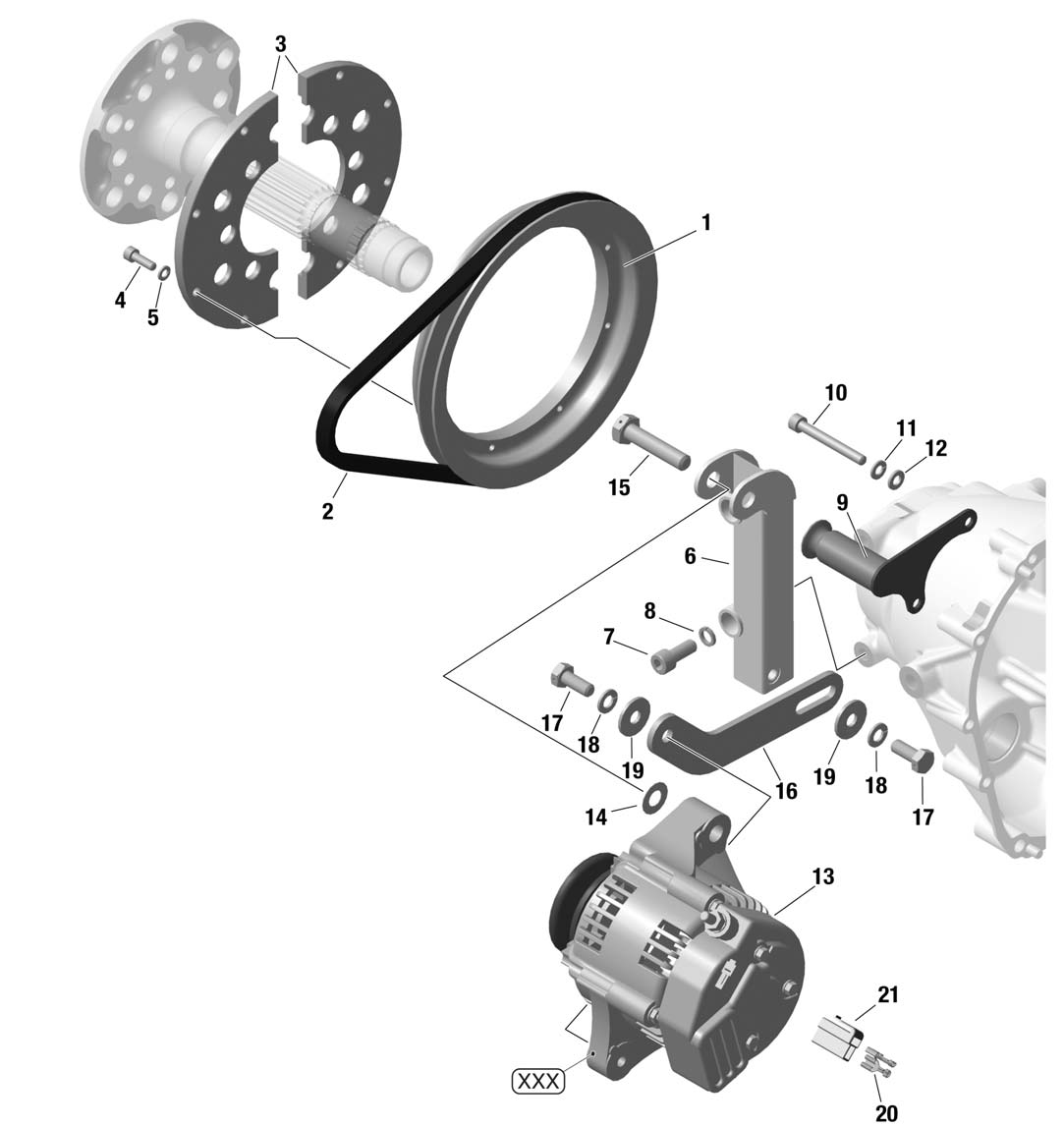

fig. 24-30-00-1

EXTERNAL GENERATOR F3A For ROTAX 912IS

Click on Number to order Part

Fig. Part Number Description Unit/Price Add to Cart
1-21 887254 Alternator Kit, 40a/12v 5305400 Add to Cart
1 980590 V-belt Pulley 565200 Add to Cart
2 980400 V-belt 9,5x675 13000 Add to Cart
3 980605 Pulley Carrier Each 1059400 Add to Cart
4 840514 Allen Screw M5x16 270 Add to Cart
5 945830 Lock Washer A5 270 Add to Cart
6 953223 Alternator Bracket Assy. 140900 Add to Cart
7 240072 Allen Screw M8x20 710 Add to Cart
8 845310 Lock Washer Vhz 8 710 Add to Cart
9 953235 Alternator Support Assy. 921200 (1) Add to Cart
10 241762 Allen Screw M6x50 1200 Add to Cart
11 945831 Lock Washer A6 Din 128 270 Add to Cart
12 827962 Washer 6,4 Din 125 300 Add to Cart
13 887251 Alternator F3a 2789500 Add to Cart
14 927952 Thrust Washer 10,1/20/0,5 6000 Add to Cart
15 941637 Hex. Screw M10x45-sk-din 931 0 (1) Add to Cart
16 953241 Tension Bar 46200 Add to Cart
17 940596 Hex. Screw M8x20-sk-din 933 26600 Add to Cart
18 945832 Lock Washer A8 270 Add to Cart
19 227936 Washer 8,4 270 Add to Cart
20 864011 Faston Connector 6,3x0,8 1500 Add to Cart
21 265255 Connector Housing 2-pole 10300 Add to Cart
