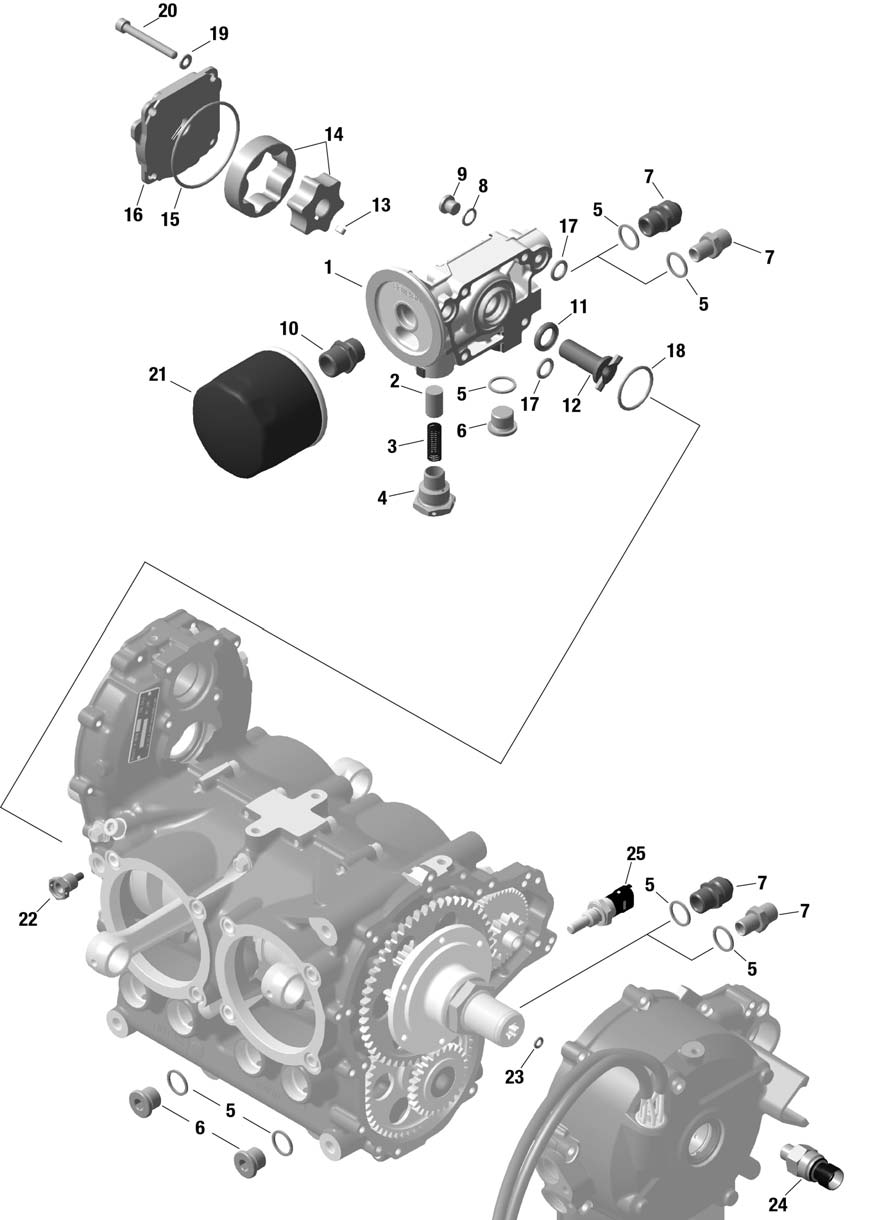

fig. 79-20-00-2
OIL PUMP ASSY., OIL FILTER, OIL TEMPERATURE SENSOR, OIL PRESSURE SENSOR For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 811463 | Oil Pump Housing | 1700600 | Add to Cart |
| 2 | 856330 | Regulating Piston | 87100 | Add to Cart |
| 3 | 838125 | Compression Spring L65,6 | 9900 | Add to Cart |
| 4 | 640850 | Plug Screw M22x1,5 | 214400 | Add to Cart |
| 5 | 430622 | Gasket Ring A 16x22 | 3000 | Add to Cart |
| 6 | 240234 | Plug Screw M16x1,5 | 8600 | Add to Cart |
| 7 | 956655 | Adapter M18x1.5/ M16x1,5 | 344300 | Add to Cart |
| 8 | 230150 | Gasket Ring 10x14 A Din 7603 | 320 | Add to Cart |
| 9 | 641733 | Plug Screw M10x1 | 32600 | Add to Cart |
| 10 | 924424 | Oil Filter Nipple | 78100 | Add to Cart |
| 11 | 430102 | Oil Seal A 14x22x4 Fpm | 25600 | Add to Cart |
| 12 | 837292 | Oil Pump Shaft | 295700 | Add to Cart |
| 13 | 246580 | Key A 4x4x8 Din 6885 | 2200 | Add to Cart |
| 14 | 888821 | Pressure Inner And Outer Rotor | 294100 | Add to Cart |
| 15 | 830372 | O-ring 63-2,5 | 6900 | Add to Cart |
| 16 | 911713 | Use 911 717 | 491000 | Add to Cart |
| 17 | 250460 | O-ring 11-2,7 | 1700 | Add to Cart |
| 18 | 950410 | O-ring 30x2,5 | 4300 | Add to Cart |
| 19 | 827962 | Washer 6,4 Din 125 | 320 | Add to Cart |
| 20 | 241762 | Allen Screw M6x50 | 1700 | Add to Cart |
| 21 | 825016 | Oil Filter, Rotax | 56900 | Add to Cart |
| 22 | 640866 | Magnetic Drain Plug M12x1,5 | 293100 | Add to Cart |
| 24 | 664365 | Pressure Sensor 10 | 1365600 | Add to Cart |
| 25 | 965537 | Temperature Sensor | 695200 | Add to Cart |
