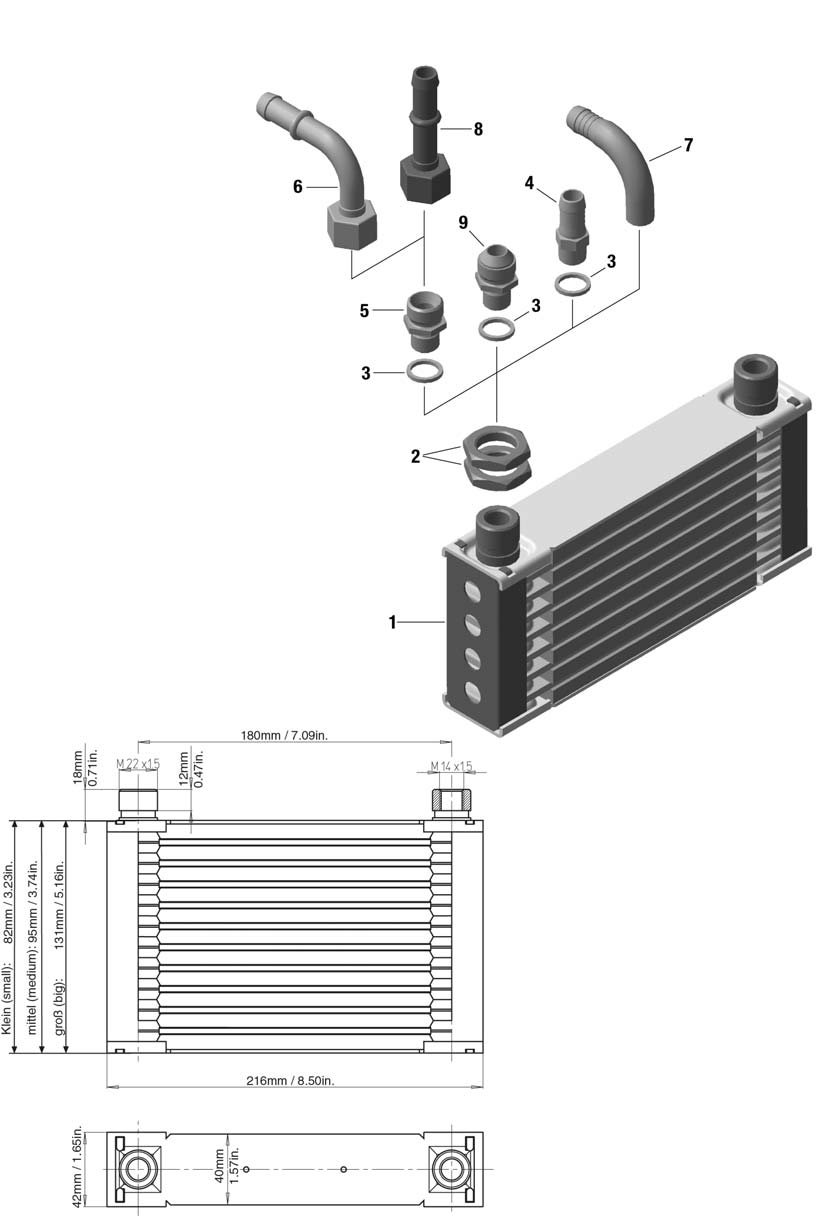

fig. 79-20-00-3
OIL RADIATOR For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-4 | 886012 | Oil Cooler Set Medium - Metric Connections | 693400 | Add to Cart |
| 1-4 | 886012 | Oil Cooler Set Medium - Metric Connections | 693400 | Add to Cart |
| 1-4 | 886013 | Oilcooler Set Lg - Metric Connections | 840700 | Add to Cart |
| 1 | 886000 | Oil Radiator | 813900 | Add to Cart |
| 1 | 886012 | Oil Cooler Set Medium - Metric Connections | 693400 | Add to Cart |
| 1 | 886015 | Oilcooler Set Lg Unf Connections | 964200 | Add to Cart |
| 2 | 242873 | Hex Nut M22 X 1,5 H=6 | 19000 | Add to Cart |
| 2.3.9 | 956645 | Screw Connection Set Unf | 347700 | Add to Cart |
| 3.5.8 | 956615 | Screw Connection Set Straight | 966400 | Add to Cart |
| 3.5.6 | 956585 | Screw Connection Set Bent | 581700 | Add to Cart |
| 3 | 230387 | Gasket Ring 14,2/18/2 | 1400 | Add to Cart |
| 4 | 840461 | Nipple 13,2/9,5-m14x1,5 | 45200 | Add to Cart |
| 5 | 956577 | Adaptor M 18 X 1.5 / M14 X 1.5 | 125900 | Add to Cart |
| 7 | 924585 | Angular Tube M14x1,5 | 85800 | Add to Cart |
| 8 | 956610 | Hose Nipple With Union Nut | 480000 | Add to Cart |
| 9 | 956643 | Adaptor 3/4-16 Unf M14 X 1.5 | 140000 | Add to Cart |
