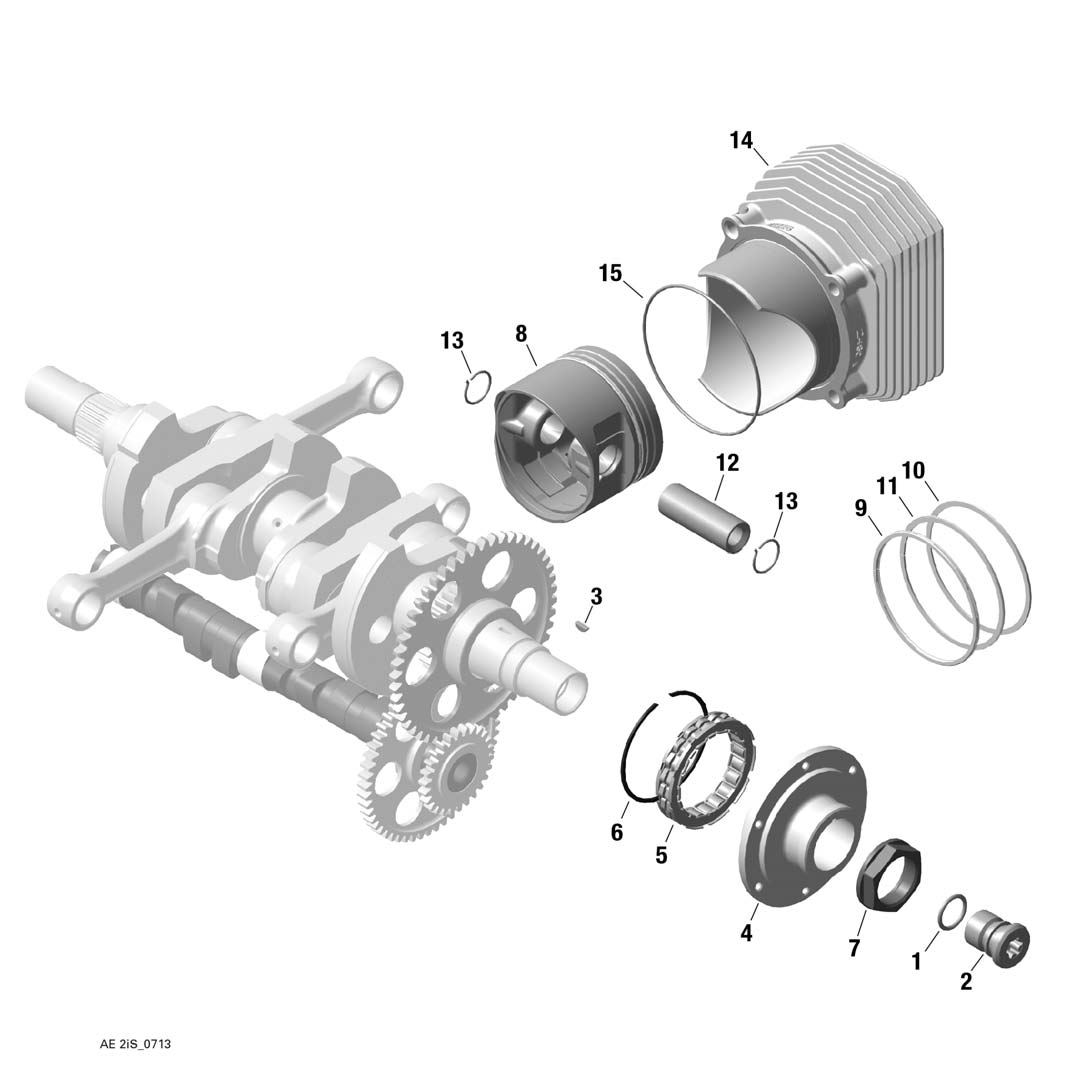

fig. 72-20-00-2
CRANKSHAFT, PISTON, CYLINDER, SPRAG CLUTCH For ROTAX 912IS
Click on Number to order Part
Your cart is Empty
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|
Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 250057 | O-ring Din 3771-18x2,5-n, Fpm 75 | 580 | Add to Cart |
| 2 | 940520 | Plug Screw M22x1,5 | 64200 | Add to Cart |
| 3 | 246055 | Woodruff Key 3x3,7 Din 6888 | 1900 | Add to Cart |
| 4 | 852407 | Sprag Clutch Housing | 341000 | Add to Cart |
| 5 | 958856 | Sprag Clutch 51,710x68,377x13 | 292700 | Add to Cart |
| 6 | 845425 | Circlip 70 | 5200 | Add to Cart |
| 7 | 942250 | Hex. Nut M32x1,5-lh | 70400 | Add to Cart |
| 8-10 | 888382 | 888 382 Use 888 382-1 Red Or 888 382-2 Green | 0 | Add to Cart |
| 9 | 815230 | Oil Scraper Ring | 57400 | Add to Cart |
| 10 | 815280 | Tapered Compression Ring | 39000 | Add to Cart |
| 11 | 815257 | Rectangular Ring 84/77x1,5 | 74500 | Add to Cart |
| 12 | 916356 | Piston Pin 20x12x55,3 | 165400 | Add to Cart |
| 13 | 845106 | Mono Hook Circlip | 3200 | Add to Cart |
| 14 | 0 | Add to Cart | ||
| 15 | 250510 | O-ring 87x2 | 7900 | Add to Cart |
Showing 1 to 15 of 15 entries
