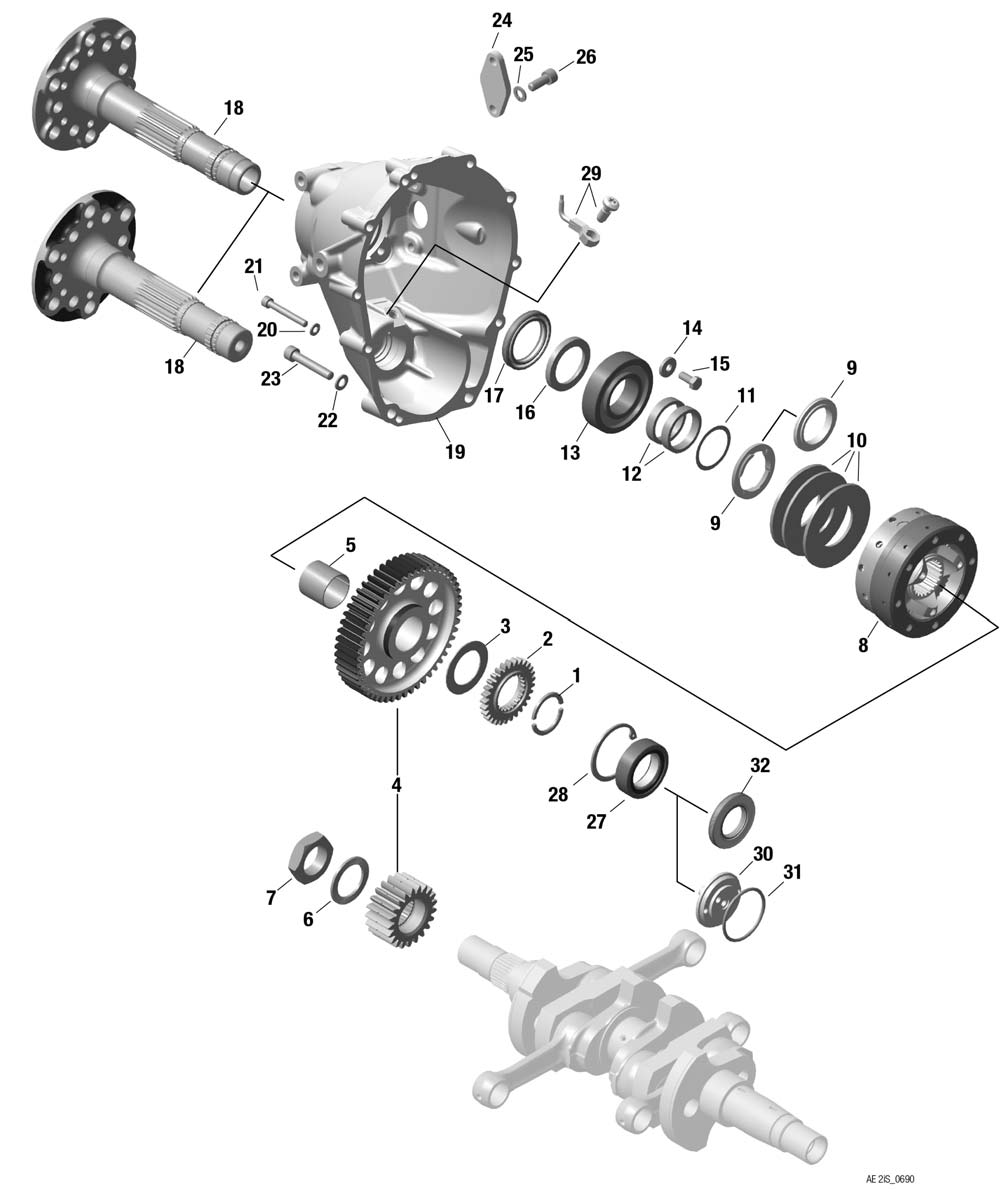

fig. 72-10-00-1
PROPELLER GEAR ASSY. WITH OVERLOAD CLUTCH For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-28 | 893341 | Gear Box 2.43 For 912is Sport | 25598300 | Add to Cart |
| 1-28 | 893345 | Gearbox With Clutch I 2,43-3 500 Mm | 21263600 | Add to Cart |
| 1 | 926035 | Ring Half | 85100 | Add to Cart |
| 2 | 834233 | Drive Gear 29 T., | 130500 | Add to Cart |
| 3 | 827992 | Thrust Washer 33,2/51/1,2 | 145600 | Add to Cart |
| 4 | 886548 | Gear Set I 2,43 | 3988900 | Add to Cart |
| 5 | 933362 | Bushing 31x33x29,8 | 306200 | Add to Cart |
| 6 | 845431 | Friction Washer Vs30 | 15400 | Add to Cart |
| 7 | 842579 | Hex. Nut M30x1.5 12mm, Lh | 113100 | Add to Cart |
| 8 | 996916 | Overload Clutch Assy. | 6071100 | Add to Cart |
| 9 | 847787 | Step Collar | 174400 | Add to Cart |
| 10 | 838216 | Disk Spring B80, 80x41x3 | 50200 | Add to Cart |
| 11 | 927401 | Shim 35,4/43/0,2 | 3500 | Add to Cart |
| 11 | 927402 | Shim 35,4/43/0,5 | 4300 | Add to Cart |
| 11 | 927403 | Shim 35,4/43/1,0 | 5600 | Add to Cart |
| 12 | 847687 | Distance Sleeve 35,2/42/6 | 84800 | Add to Cart |
| 13 | 832587 | Ball Bearing 6207e Tnh, 35-72-17 | 776200 | Add to Cart |
| 14 | 944320 | Washer 7,2/18,8/3 | 4800 | Add to Cart |
| 15 | 941760 | Hex. Screw M7x16 Din 933 | 2200 | Add to Cart |
| 16 | 926022 | Spacer Ring 36/50/5,5 | 78500 | Add to Cart |
| 17 | 950470 | Oil Seal As 40x55x7 | 157700 | Add to Cart |
| 18 | 937047 | Propeller Shaft V2 | 3122200 | Add to Cart |
| 19 | 610362 | Gearbox Cover | 3268600 | Add to Cart |
| 20 | 827962 | Washer 6,4 Din 125 | 320 | Add to Cart |
| 21 | 241823 | Allen Screw M6x45 Din 912 | 1700 | Add to Cart |
| 22 | 944131 | Washer 8 Mm | 1700 | Add to Cart |
| 23 | 841562 | Allen Screw M8 X 45 | 2000 | Add to Cart |
| 24 | 926151 | Cover | 51400 | Add to Cart |
| 25 | 945832 | Lock Washer A8 | 320 | Add to Cart |
| 26 | 940592 | Hex.screw M8x20 | 1700 | Add to Cart |
| 27 | 232246 | Roller Bearing Rnu 205 Ecp/pab4l | 306900 | Add to Cart |
| 28 | 945820 | Retaining Ring 52x2 | 4300 | Add to Cart |
| 29 | 950200 | Oil Seal 30x52x7 | 162900 | Add to Cart |
| 30 | 810301 | Oil Inlet Flange | 878500 | Add to Cart |
| 31 | 430175 | O-ring 46x3 | 7200 | Add to Cart |
