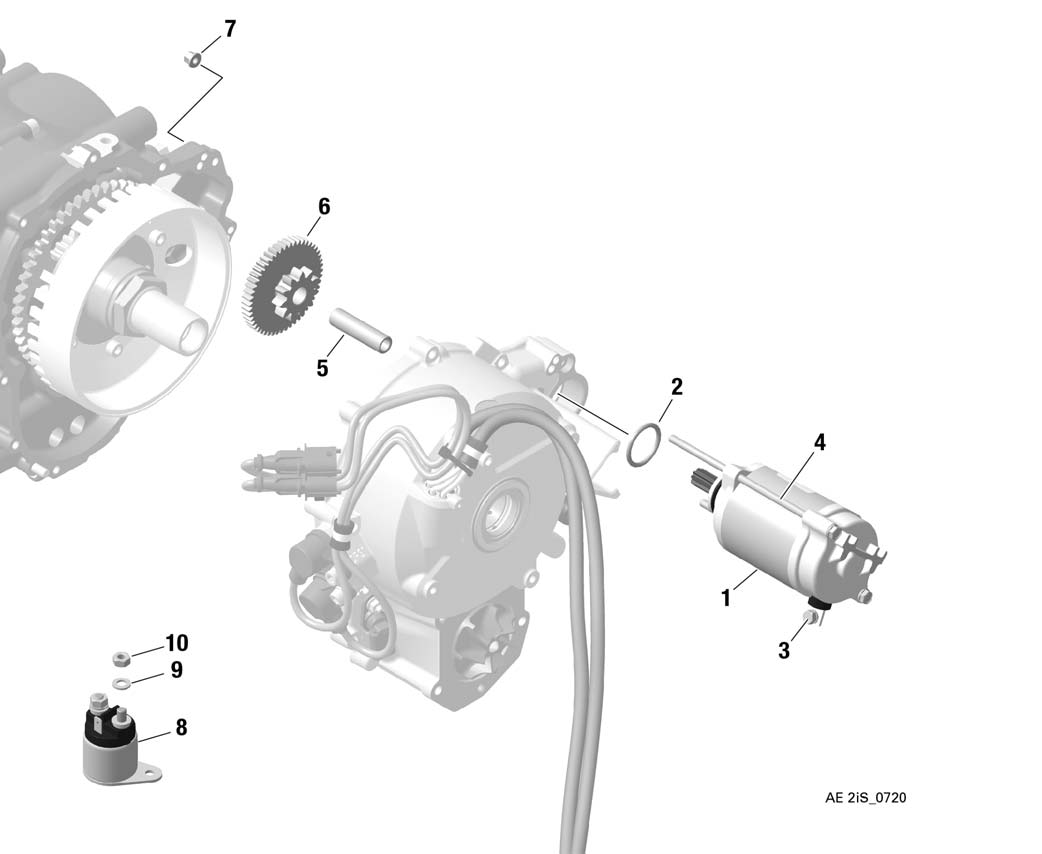

fig. 80-10-00-1
ELECTRIC STARTER, STARTER RELAY For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-4 | 685667 | Electric Starter Assy. | 1508100 | Add to Cart |
| 2 | 250140 | O-ring Din 3771-24,4x3,1-n | 4200 | Add to Cart |
| 3 | 240457 | Terminal Screw M5x8 | 7200 | Add to Cart |
| 4 | 241132 | Set Bolt M5x143 | 29000 | Add to Cart |
| 5 | 837102 | Idle Gear Shaft | 50000 | Add to Cart |
| 6 | 834156 | Idle Gear 50/11 T, | 544600 | Add to Cart |
| 7 | 942311 | Hex. Nut M5 | 86000 | Add to Cart |
| 8 | 992818 | Starter Relay Assy | 213600 | Add to Cart |
| 9 | 945831 | Lock Washer A6 Din 128 | 320 | Add to Cart |
| 10 | 242214 | Hex.nut M6 | 320 | Add to Cart |
