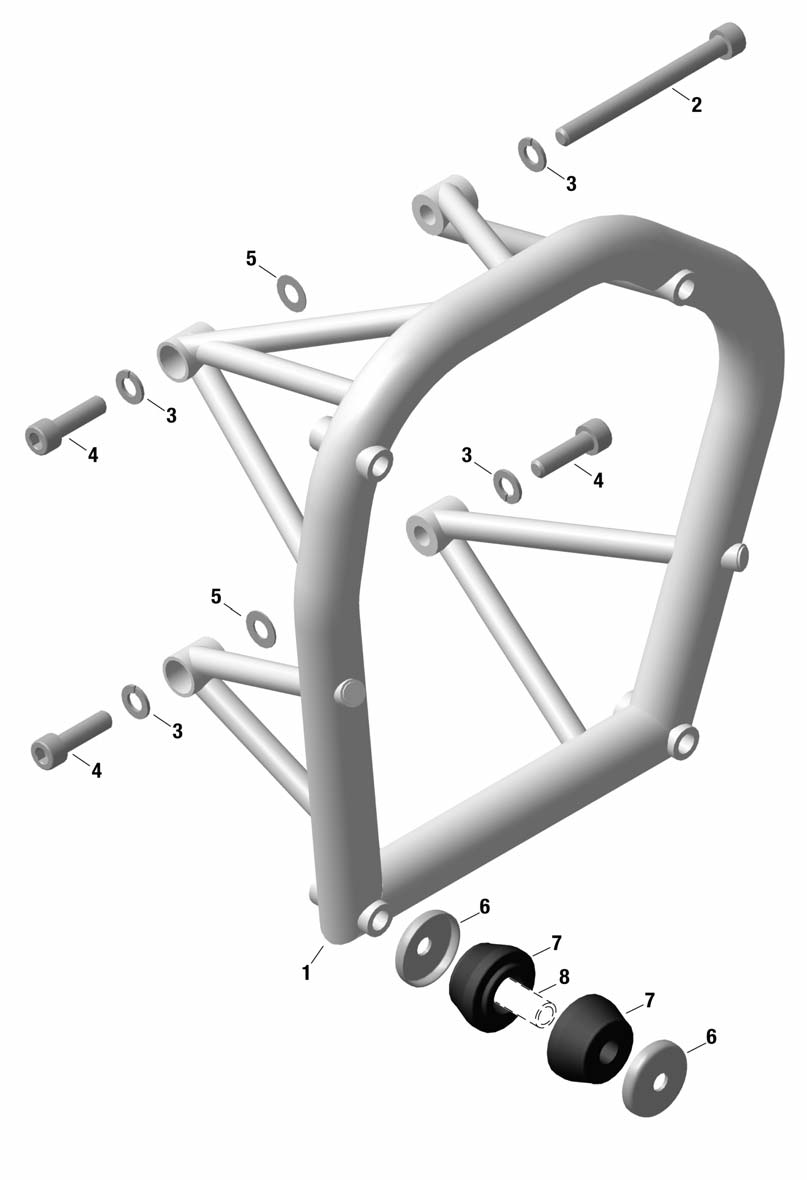

fig. 71-20-00-1
ENGINE SUSPENSION FRAME For ROTAX 912IS
Click on Number to order Part
Fig. | Part Number | Description | Unit/Price | Add to Cart |
---|---|---|---|---|
1 | 886563 | Engine Suspension Frame Assy | 2828600 (1) | Add to Cart |
2 | 941487 | Allen Screw M10x110 Din 912 | 6200 | Add to Cart |
3 | 945833 | Lock Washer A10 | 460 (1) | Add to Cart |
4 | 840948 | Allen Screw M10x35 Din 912 | 1700 | Add to Cart |
5 | 927952 | Thrust Washer 10,1/20/0,5 | 6000 | Add to Cart |
5 | 927953 | Thrust Washer 10,1/20/1,0 | 6400 | Add to Cart |
6-7 | 860695 | Shock Mount Set | 2599800 | Add to Cart |
6 | 944240 | Cup Washer | 229000 | Add to Cart |
