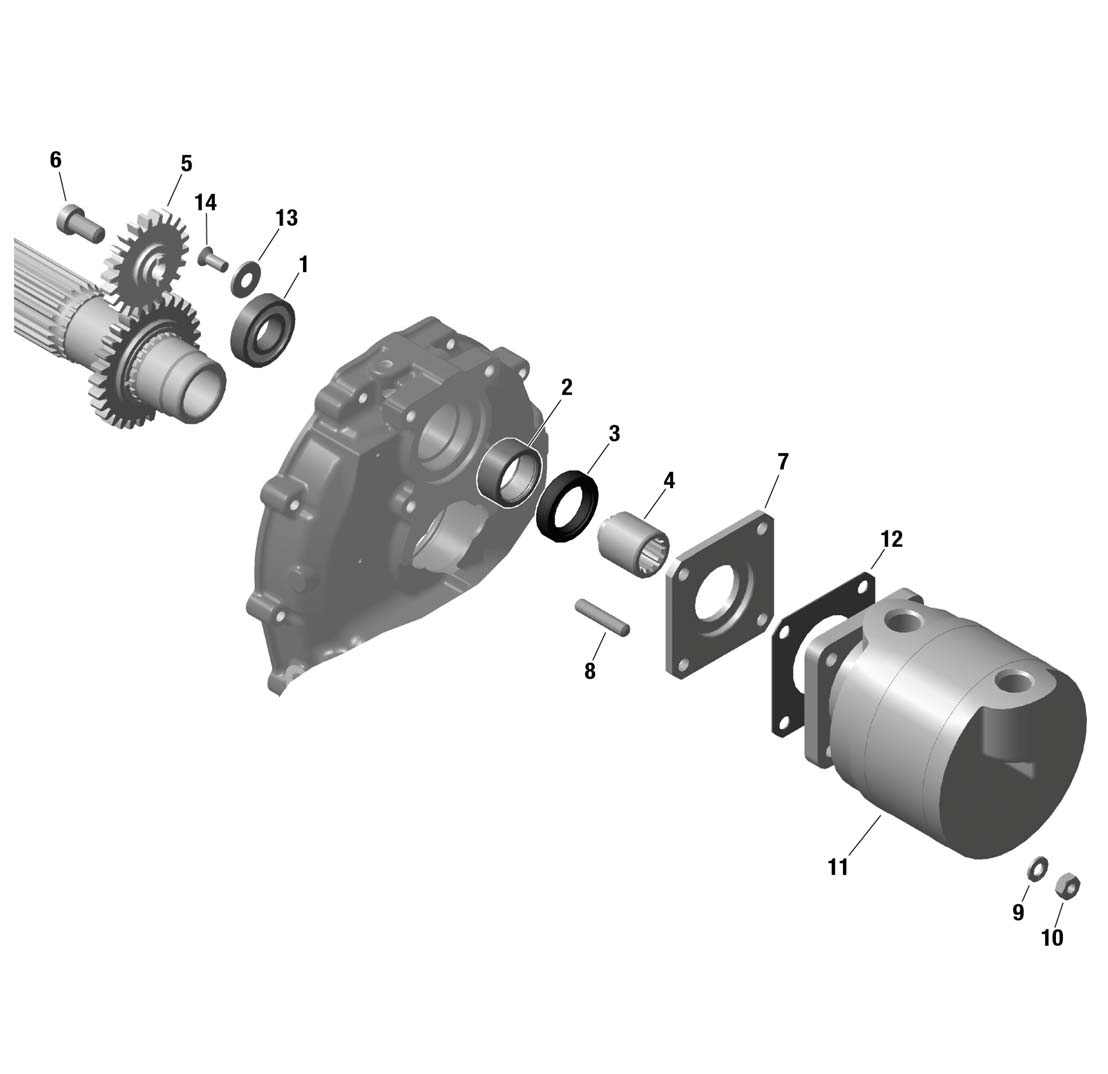

fig. 37-10-00-1

VACUUM PUMP WITH DRIVE For ROTAX 912IS

Click on Number to order Part

Fig. Part Number Description Unit/Price Add to Cart
1-8 881690 Vacuum Drive Kit 1772500 Add to Cart
1 832363 Ball Bearing 16002 550800 (1) Add to Cart
2 232925 Needle Sleeve 22x28x12 19700 Add to Cart
3 831265 Oil Seal As 22x32x7 27000 Add to Cart
5 834245 Vacuum Pump Gear 22 T., 356300 Add to Cart
6 941527 Allen Screw M8x14 2200 Add to Cart
7 810170 Attachment Flange 691300 Add to Cart
8 941080 Stud M6x20/10 4800 Add to Cart
9 945831 Lock Washer A6 Din 128 270 (1) Add to Cart
10 242214 Hex.nut M6 300 (1) Add to Cart
