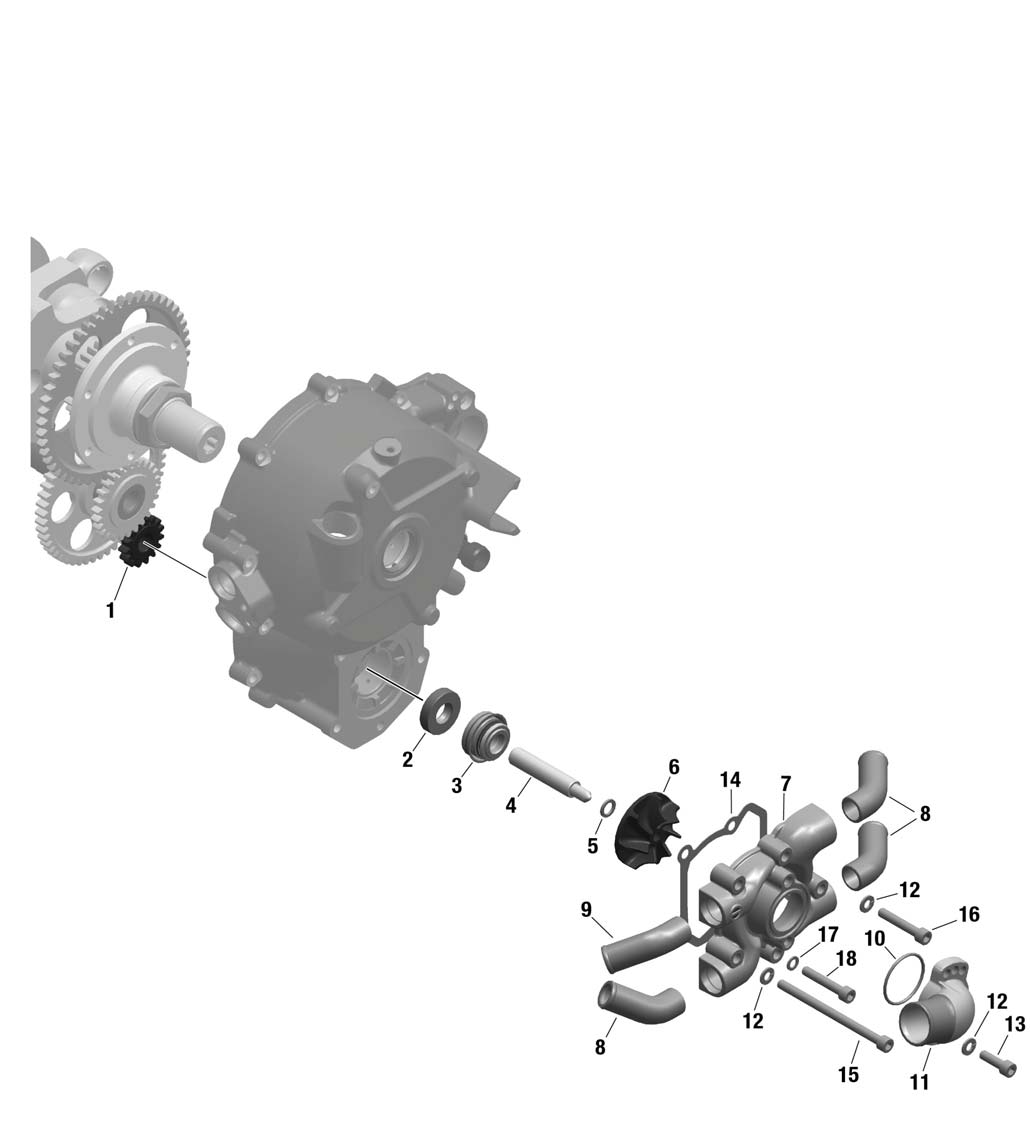

fig. 75-20-00-1
WATER PUMP WITH DRIVE For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 834136 | Water Pump Gear 15 T | 576600 | Add to Cart |
| 2 | 850978 | Oil Seal A 12x30x7 Fpm | 145600 | Add to Cart |
| 3 | 850946 | Seal/rotary | 97300 | Add to Cart |
| 4 | 837112 | Pump Shaft | 495500 | Add to Cart |
| 5 | 926274 | Washer 8.2/12.5/1.5 | 35100 | Add to Cart |
| 6 | 922224 | Impeller | 69800 | Add to Cart |
| 7 | 922202 | Water Pump Housing | 191500 | Add to Cart |
| 8 | 922238 | Bent Socket 45 Degrees | 55400 | Add to Cart |
| 10 | 230020 | O-ring 32x2 | 3700 | Add to Cart |
| 11 | 922218 | Water Inlet Elbow | 943500 | Add to Cart |
| 12 | 827962 | Washer 6,4 Din 125 | 320 | Add to Cart |
| 13 | 241935 | Allen Screw M6x20 | 1000 | Add to Cart |
| 14 | 850983 | Gasket | 20200 | Add to Cart |
| 15 | 241482 | Allen Screw M6x90 | 2800 | Add to Cart |
| 16 | 241814 | Allen Screw, M6x35 | 1400 | Add to Cart |
| 17 | 230415 | Gasket Ring A 6x10 Din 7603 | 440 | Add to Cart |
| 18 | 241813 | Allen Screw M6x35, Stainless | 2700 | Add to Cart |
