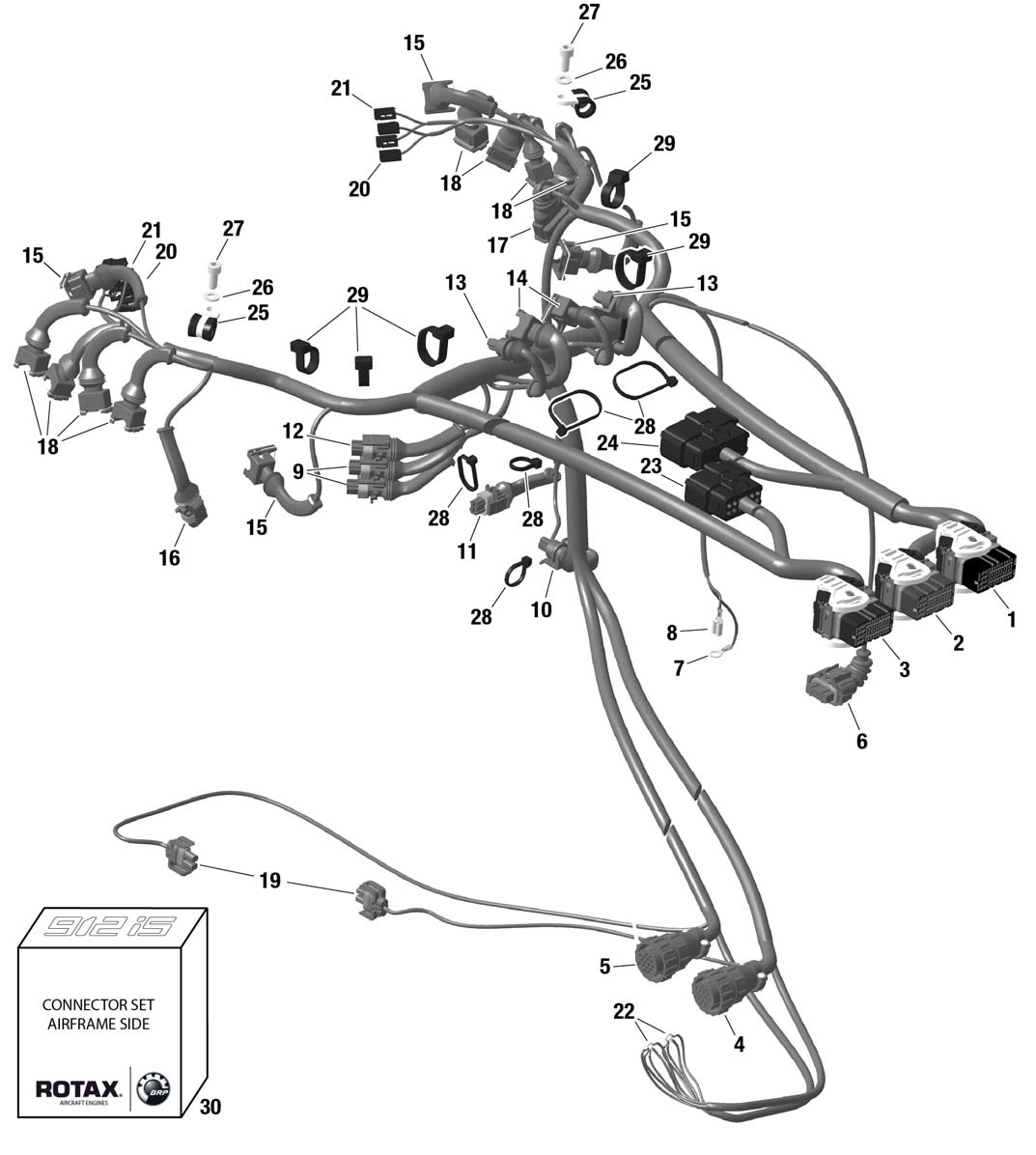

fig. 76-50-00-1
WIRING HARNESS For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-24 | 665580 | Wiring Harness Standard Package | 8920900 | Add to Cart |
| 4-5 | 881312 | Connector Set Fuse Box | 636300 | Add to Cart |
| 6 | 881306 | Connector Set Aapts | 127800 | Add to Cart |
| 7 | 964059 | Cable Shoe M6 | 2800 | Add to Cart |
| 8 | 864011 | Faston Connector 6,3x0,8 | 3400 | Add to Cart |
| 9 | 881298 | Connector Set Cps | 111300 | Add to Cart |
| 10 | 881302 | Connector Set | 187200 | Add to Cart |
| 11 | 881296 | Connector Set Cts A Ots A Knock | 273400 | Add to Cart |
| 14 | 881292 | Connector Set Mats | 131500 | Add to Cart |
| 15 | 881290 | Connector Set Egt | 145900 | Add to Cart |
| 17 | 881308 | Connector Set Tps | 160300 | Add to Cart |
| 18 | 881300 | Connector Set Inj | 84200 | Add to Cart |
| 19 | 881304 | Connector Set Fuel Pump | 225400 | Add to Cart |
| 20-21 | 881310 | Connector Set Ignition Coil | 143900 | Add to Cart |
| 23-24 | 881294 | Connector Set Hic A And Hic B | 762000 | Add to Cart |
| 25 | 251692 | Cable Clamp 12/m6 | 14700 | Add to Cart |
| 26 | 827962 | Washer 6,4 Din 125 | 320 | Add to Cart |
| 27 | 840392 | Allen Screw M6x14 Din 912 | 1000 | Add to Cart |
| 28 | 866716 | Clamp | 920 | Add to Cart |
| 29 | 866714 | Tie Wrap 142x3,2 Mm | 120 | Add to Cart |
| 30 | 881240 | Connector Set | 1570300 | Add to Cart |
