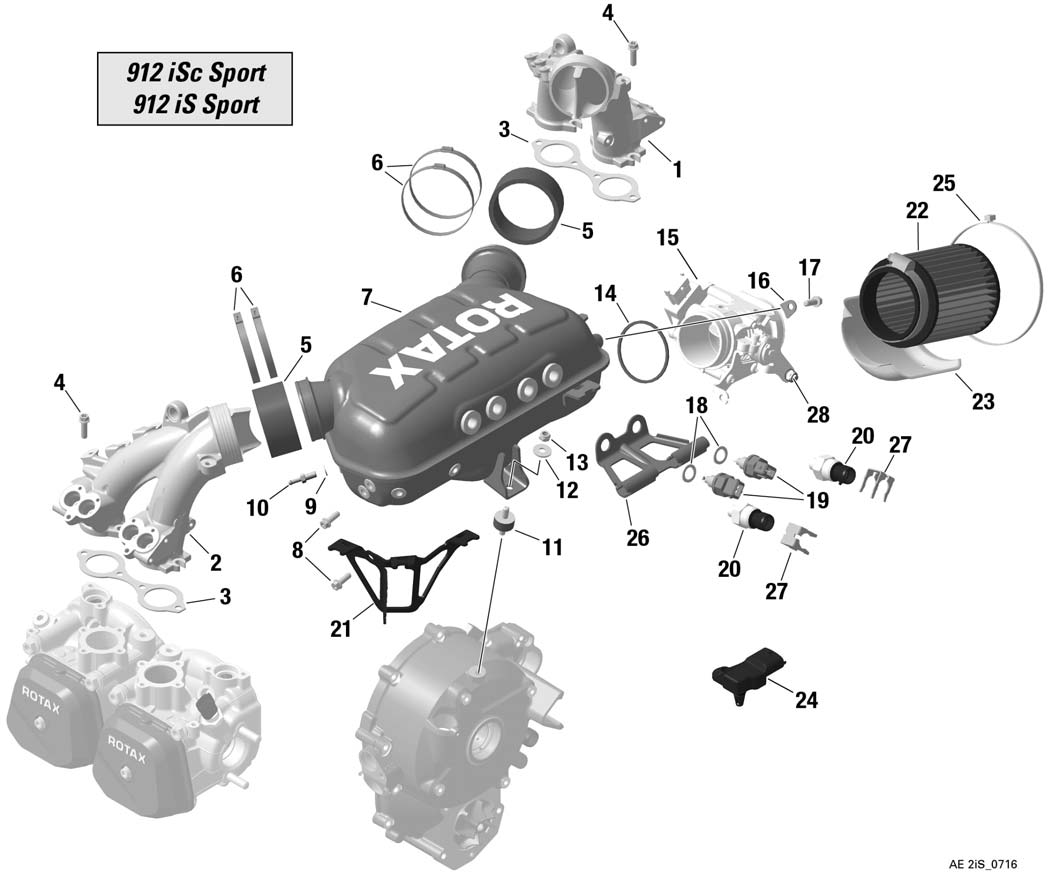

fig. 73-10-00-2
INTAKE MANIFOLD, AIRBOX, THROTTLE BODY SOCKET 912 iSc/iS SportINTAKE MANIFOLD, AIRBOX, THROTTLE BODY SOCKET 912 iSc/iS Sport For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 667403 | Intake Manifold 1/3 | 0 | Add to Cart |
| 2 | 667406 | Intake Manifold 2/4 | 1085400 | Add to Cart |
| 3 | 850091 | Isolating Flange | 22300 | Add to Cart |
| 4 | 440207 | Hex./torx-flange Screw M6x20-sw8/t30 | 1500 | Add to Cart |
| 5 | 460421 | Connecting Socket | 31300 | Add to Cart |
| 6 | 953093 | Clamp 66-69 Mm | 12100 | Add to Cart |
| 7 | 667411 | Airbox | 5557300 | Add to Cart |
| 8 | 440164 | Hex. Torx-flange Screw M6x16-sw8/t30 Mk | 2000 | Add to Cart |
| 9 | 230415 | Gasket Ring A 6x10 Din 7603 | 500 | Add to Cart |
| 10 | 840672 | Hose Nipple M6 | 141000 | Add to Cart |
| 11 | 860700 | Rubber 20x10xm6 | 22300 | Add to Cart |
| 12 | 827968 | Washer 6,4 Din 9021 | 500 | Add to Cart |
| 13 | 842042 | Lock Nut M6 | 990 | Add to Cart |
| 14 | 850020 | Rubber Ring | 9400 | Add to Cart |
| 15 | 685056 | Throttle Body Socket Assy. | 1560700 | Add to Cart |
| 16 | 953020 | Separating Plate | 3800 | Add to Cart |
| 17 | 440147 | Hex./torx-flange Screw M6x12-sw8/t30 | 2500 | Add to Cart |
| 18 | 250015 | Sealing Ring A12x18 Din 7603 | 0 | Add to Cart |
| 19 | 222421 | Temperature Sensor | 159500 | Add to Cart |
| 20 | 664364 | Pressure Sensor 2,0 | 1578500 | Add to Cart |
| 21 | 951562 | Connector Bracket | 98400 | Add to Cart |
| 22 | 825751 | Air Filter | 469400 | Add to Cart |
| 23 | 975100 | Heat Shield | 39000 | Add to Cart |
| 24 | 874654 | Pressure-/temp. Sensor | 1171300 | Add to Cart |
| 25 | 951500 | Clamp 381x4,8 Mm | 6500 | Add to Cart |
| 26 | 651780 | Connectory Bracket | 144400 | Add to Cart |
| 27 | 638140 | Clamp Map Sensor | 206600 | Add to Cart |
| 28 | 440000 | Fixing Screw Assy | 210400 | Add to Cart |
