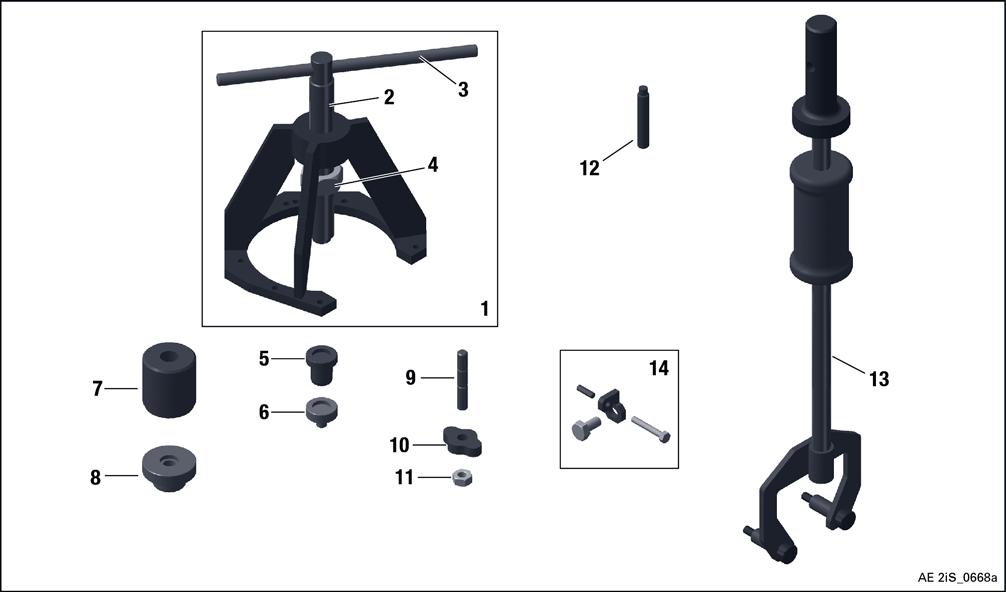

fig. 00-00-06
TOOLS P6 AE 2IS 0668a For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-4 | 877615 | Extractor Assy., | 2726700 | Add to Cart |
| 2 | 877580 | Pull-in Spindle M24x1,5 | 489600 | Add to Cart |
| 3 | 276155 | Bolt 12x250 | 15600 | Add to Cart |
| 4 | 842585 | Hex.screw M24x1,5 - 19mm | 608800 | Add to Cart |
| 5 | 877605 | Press-out Mushroom | 196100 | Add to Cart |
| 6 | 877600 | Press-out Mushroom | 197500 | Add to Cart |
| 7 | 877594 | Press-in Mushroom | 622200 | Add to Cart |
| 8 | 877590 | Press-in Mushroom | 45500 | Add to Cart |
| 9 | 941180 | Nla | 0 | Add to Cart |
| 10 | 877561 | Pull-out Plate | 18500 | Add to Cart |
| 11 | 242092 | Hex.nut M10 | 700 | Add to Cart |
| 12 | 240880 | Thread Bolt M8x50 | 8900 | Add to Cart |
| 13 | 877660 | Puller Assy | 1465500 | Add to Cart |
| 14 | 877540 | Pushing Jig Assy. | 1040400 | Add to Cart |
