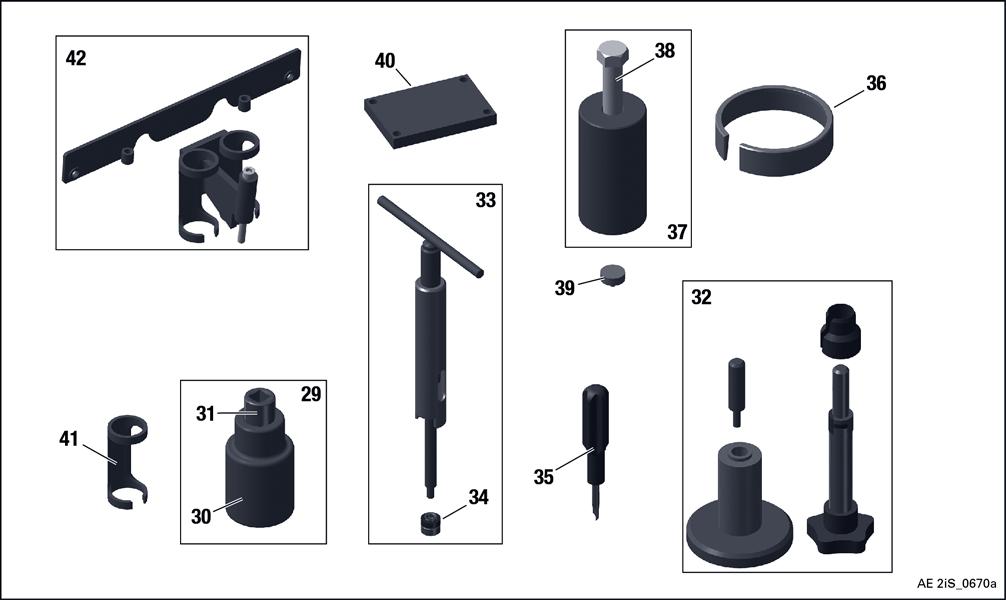

fig. 00-00-10
TOOLS P10 AE 2IS 0670a For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 29 | 877445 | Socket Wrench Assy. 41x12,5 | 482700 | Add to Cart |
| 30 | 877440 | Socket Wrench A/f 41x20 | 308500 | Add to Cart |
| 31 | 877460 | Reducing Socket 3/4"-1/2" | 94200 | Add to Cart |
| 32 | 877802 | Circlip Installation Tool | 2507100 | Add to Cart |
| 33-34 | 877091 | Piston Pin Extractor Assy., | 1043300 | Add to Cart |
| 34 | 877091 | Piston Pin Extractor Assy., | 1043300 | Add to Cart |
| 35 | 976380 | Monohook Circlip Remover | 729700 | Add to Cart |
| 36 | 876967 | Piston Ring Spanner 84 Mm | 210200 | Add to Cart |
| 37-38 | 877375 | Puller Assy | 365300 | Add to Cart |
| 38 | 940755 | Hex. Screw M16x1,5x150 | 140400 | Add to Cart |
| 39 | 876557 | Protection Mushroom | 42500 | Add to Cart |
| 40 | 877263 | Cylinder Aligning Tool | 294200 | Add to Cart |
| 41 | 877380 | Valve Spring Mounting Device | 1258200 | Add to Cart |
| 42 | 877387 | Valve Spring Jig Assy | 1687200 | Add to Cart |
