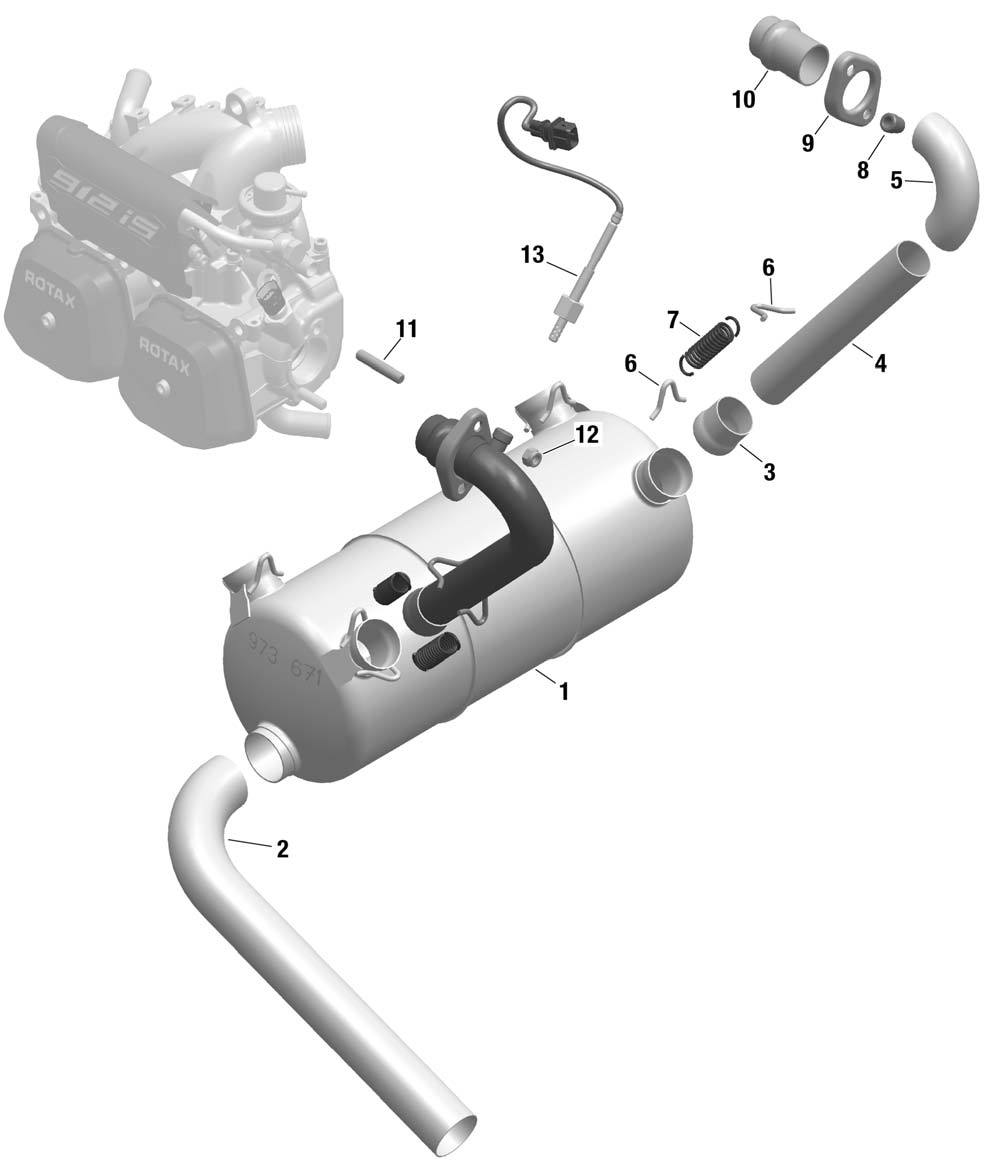

fig. 78-10-00-1
EXHAUST SYSTEM, EXHAUST TEMPERATURE SENSOR For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-7 | 973676 | Exhaust Assortment Stainless Steel | 4164800 | Add to Cart |
| 1 | 973673 | Muffler Assy.(100 Hp) | 2353700 (1) | Add to Cart |
| 2 | 978605 | Exhaust Elbow, Stainless | 215800 | Add to Cart |
| 3 | 978521 | Ball Joint, Male Stainless | 35600 | Add to Cart |
| 4 | 978998 | Exhaust Tube 800 Mm, Stainless | 215800 | Add to Cart |
| 5 | 978496 | Exh.elbow Assy. 360 Degr.stainl. | 277900 | Add to Cart |
| 6 | 853356 | Hook, Stainless | 1600 | Add to Cart |
| 7- | 938796 | Spring 66 Mm | 5600 (1) | Add to Cart |
| 7- | 938796 | Spring 66 Mm | 5600 | Add to Cart |
| 8 | 951360 | Sensor Holder | 69400 | Add to Cart |
| 9 | 978246 | Exhaust Flange | 87800 | Add to Cart |
| 10 | 978252 | Exhaust Socket | 19100 | Add to Cart |
| 11 | 940368 | Stud M8x23/20 | 2900 | Add to Cart |
| 12 | 842950 | Lock Nut Din 14441 M8-sw12 | 2000 | Add to Cart |
| 13 | 866261 | Temperature Sensor | 389300 | Add to Cart |
