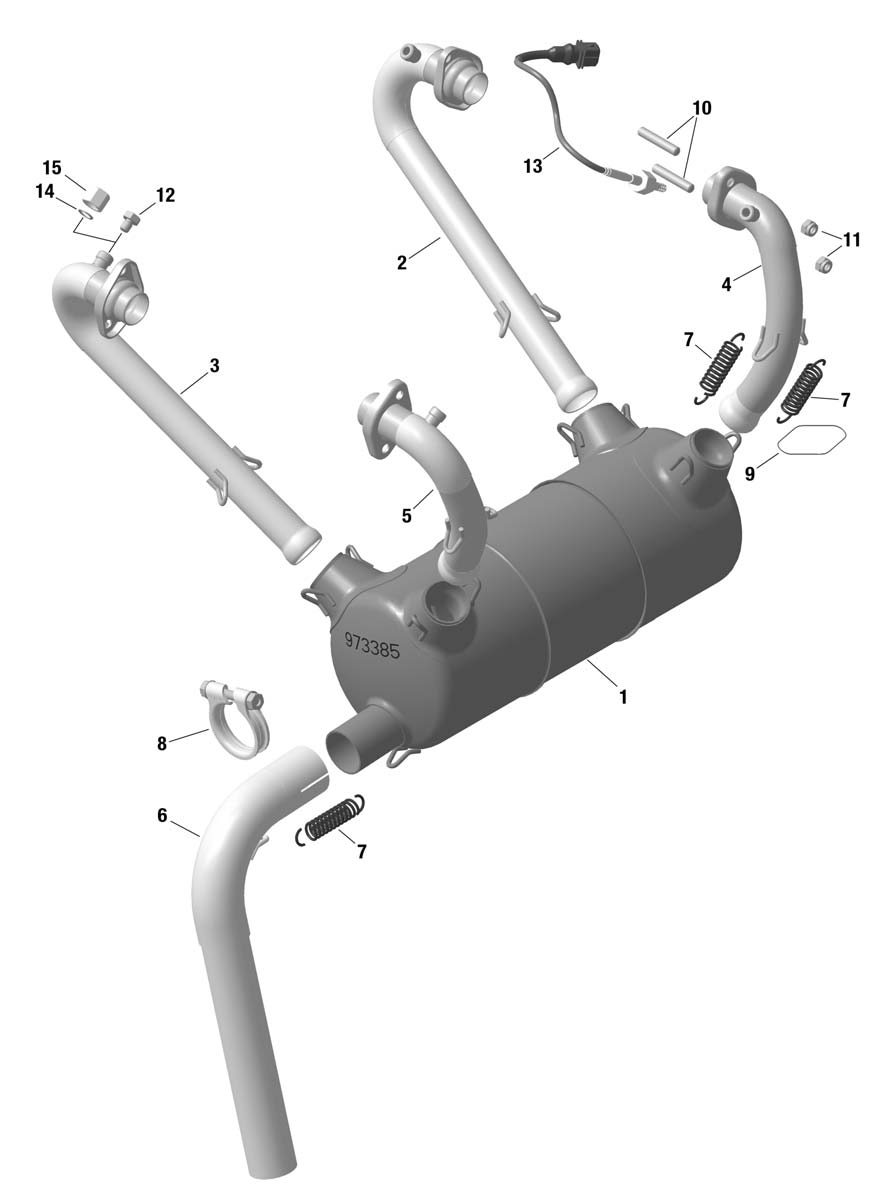

fig. 78-10-00-2
EXHAUST SYSTEM (STANDARD) For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-8 | 973383 | Exhaust Stainless | 7876200 | Add to Cart |
| 1 | 973385 | Muffler Assy | 3613000 | Add to Cart |
| 2 | 973010 | Exhaust Pipe Assy Cyl. 1 | 1796600 | Add to Cart |
| 3 | 973020 | Exhaust Pipe Assy Cyl. 2 | 1743600 | Add to Cart |
| 4 | 973030 | Exhaust Pipe Assy Cyl. 3 | 1907800 | Add to Cart |
| 5 | 973040 | Exhaust Pipe Assy Cul. 4 | 0 | Add to Cart |
| 6 | 973389 | Exhaust Elbow Stainless | 484500 | Add to Cart |
| 7- | 938796 | Spring 66 Mm | 9200 | Add to Cart |
| 7- | 938796 | Spring 66 Mm | 9200 | Add to Cart |
| 8 | 951550 | Exhaust Pipe Clamp Assy | 90700 | Add to Cart |
| 9 | 0 | Add to Cart | ||
| 10 | 940368 | Stud M8x23/20 | 3900 | Add to Cart |
| 11 | 842950 | Lock Nut Din 14441 M8-sw12 | 3900 | Add to Cart |
| 12 | 841115 | Hex Screw M8x1x10 | 28400 | Add to Cart |
| 13 | 866261 | Temperature Sensor | 514100 | Add to Cart |
| 14 | 230150 | Gasket Ring 10x14 A Din 7603 | 320 | Add to Cart |
| 15 | 841115 | Hex Screw M8x1x10 | 28400 | Add to Cart |
