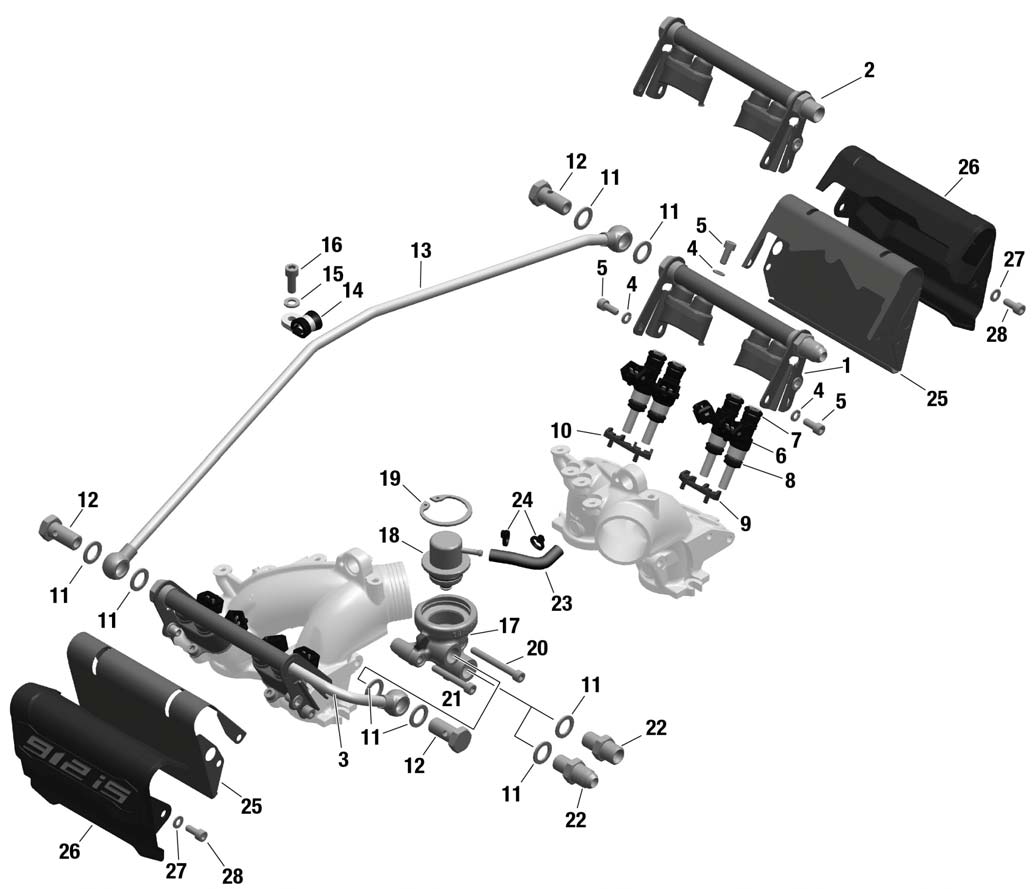

fig. 73-10-00-3
FUEL INJECTOR, FUEL RAIL, PRESSURE REGULATOR, FUEL RAIL COVER For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 874795 | Fuel Rail Right - Unf | 1077600 | Add to Cart |
| 2 | 874799 | Fuelrail Right-metric | 1068700 | Add to Cart |
| 3 | 874792 | 874 792 Use 874 797 | 0 | Add to Cart |
| 4 | 945830 | Lock Washer A5 | 350 | Add to Cart |
| 5 | 640542 | Allen Screw M5x12 Din 912 | 350 | Add to Cart |
| 6-8 | 874780 | Fuel Injector | 726300 | Add to Cart |
| 7 | 831060 | O-ring 7,52x3,51 | 19600 | Add to Cart |
| 8 | 831050 | O-ring 8,54x3,1 Viton B70 | 19600 | Add to Cart |
| 9 | 860042 | Damper Left | 8500 | Add to Cart |
| 10 | 860040 | Damper Right | 8500 | Add to Cart |
| 11 | 250646 | Gasket A 12x18-cu Din 7603 | 490 | Add to Cart |
| 12 | 641541 | Banjo Bolt - Din 7643 - 8 - 3 | 52700 | Add to Cart |
| 13 | 874802 | Fuel Hose Assy. | 644600 | Add to Cart |
| 14 | 853412 | Cable Clamp #8 | 9600 | Add to Cart |
| 15 | 827962 | Washer 6,4 Din 125 | 350 | Add to Cart |
| 16 | 241239 | Allen Screw M6x16 | 9200 | Add to Cart |
| 17 | 874770 | Pressure Regulator Housing | 404600 | Add to Cart |
| 18 | 889262 | Fuel Pressure Regulator Assy. | 1200500 | Add to Cart |
| 19 | 845650 | Retaining Ring 36x1,5 | 3400 | Add to Cart |
| 20 | 941792 | Allen Screw M5x45 | 2300 | Add to Cart |
| 21 | 841502 | Allen Screw M5x35 | 1100 | Add to Cart |
| 22- | 840700 | Adapter 9/16 Unf/m12x1,5 | 373600 | Add to Cart |
| 22- | 856821 | Adapter M14x1,5/m12x1,5 | 181100 | Add to Cart |
| 23 | 960631 | Tube 60 +/-3 Mm | 27300 | Add to Cart |
| 24 | 866718 | Tie Wrap 94x2,5 Mm | 350 | Add to Cart |
| 25 | 975090 | Heat Shield | 33500 | Add to Cart |
| 26 | 975060 | Covering Fuelrail | 64900 | Add to Cart |
| 27 | 939445 | Spring Washer 12x5.2x0.5 | 5100 | Add to Cart |
| 28 | 640542 | Allen Screw M5x12 Din 912 | 350 | Add to Cart |
