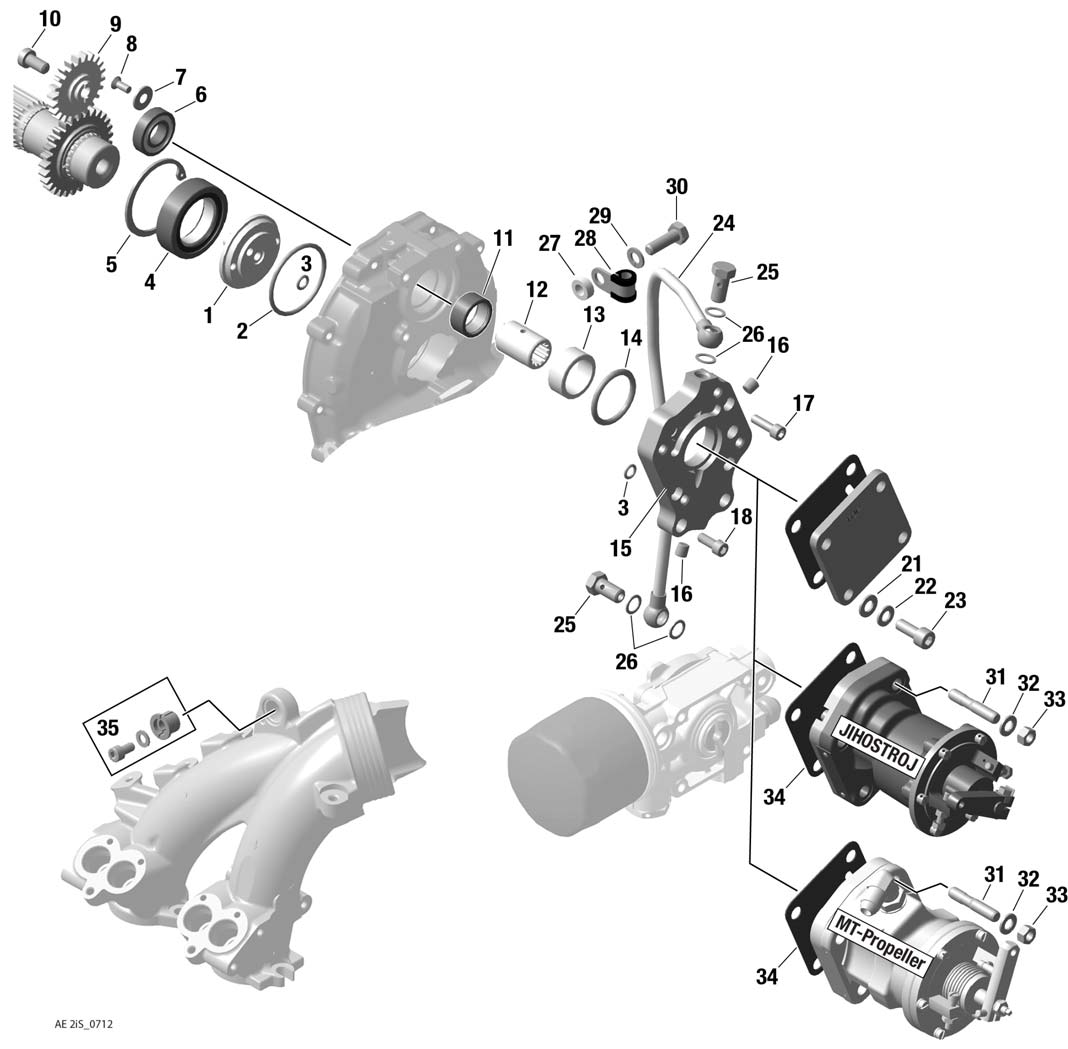

fig. 61-20-00-1
HYDR. GOVERNOR ARRANGEMENT FOR CONSTANT SPEED PROPELLER For ROTAX 912IS
Click on Number to order Part
Fig. | Part Number | Description | Unit/Price | Add to Cart |
---|---|---|---|---|
3 | 830415 | O-ring 7x2 | 1700 | Add to Cart |
6 | 832363 | Ball Bearing 16002 | 550800 (1) | Add to Cart |
9 | 834245 | Vacuum Pump Gear 22 T., | 356300 | Add to Cart |
10 | 941522 | Allen Screw M8x16 | 1200 (1) | Add to Cart |
11 | 232925 | Needle Sleeve 22x28x12 | 19700 | Add to Cart |
13 | 847802 | Spacer 25/31,95/13 | 116300 | Add to Cart |
14 | 950380 | O-ring 32x4 | 6700 | Add to Cart |
15 | 810294 | Govenor Flange | 937500 (1) | Add to Cart |
16 | 941611 | Screw Plug M8x1 | 5500 | Add to Cart |
17 | 241935 | Allen Screw M6x20 | 710 (1) | Add to Cart |
18 | 241237 | Allen Screw M6x16 | 270 (1) | Add to Cart |
19 | 931770 | Gasket | 9000 | Add to Cart |
20 | 926231 | Cover | 290500 | Add to Cart |
21 | 250315 | Washer 8,4 | 270 (1) | Add to Cart |
22 | 945832 | Lock Washer A8 | 270 (1) | Add to Cart |
23 | 240072 | Allen Screw M8x20 | 710 (1) | Add to Cart |
24 | 956460 | Pressure Oil Line Assy., | 514000 | Add to Cart |
26 | 230150 | Gasket Ring 10x14 A Din 7603 | 230 | Add to Cart |
28 | 853418 | Cable Clamp | 31800 | Add to Cart |
30 | 240277 | Hex. Screw M8x25 | 710 (1) | Add to Cart |
31 | 840711 | Stud M8 X 21 | 49300 | Add to Cart |
