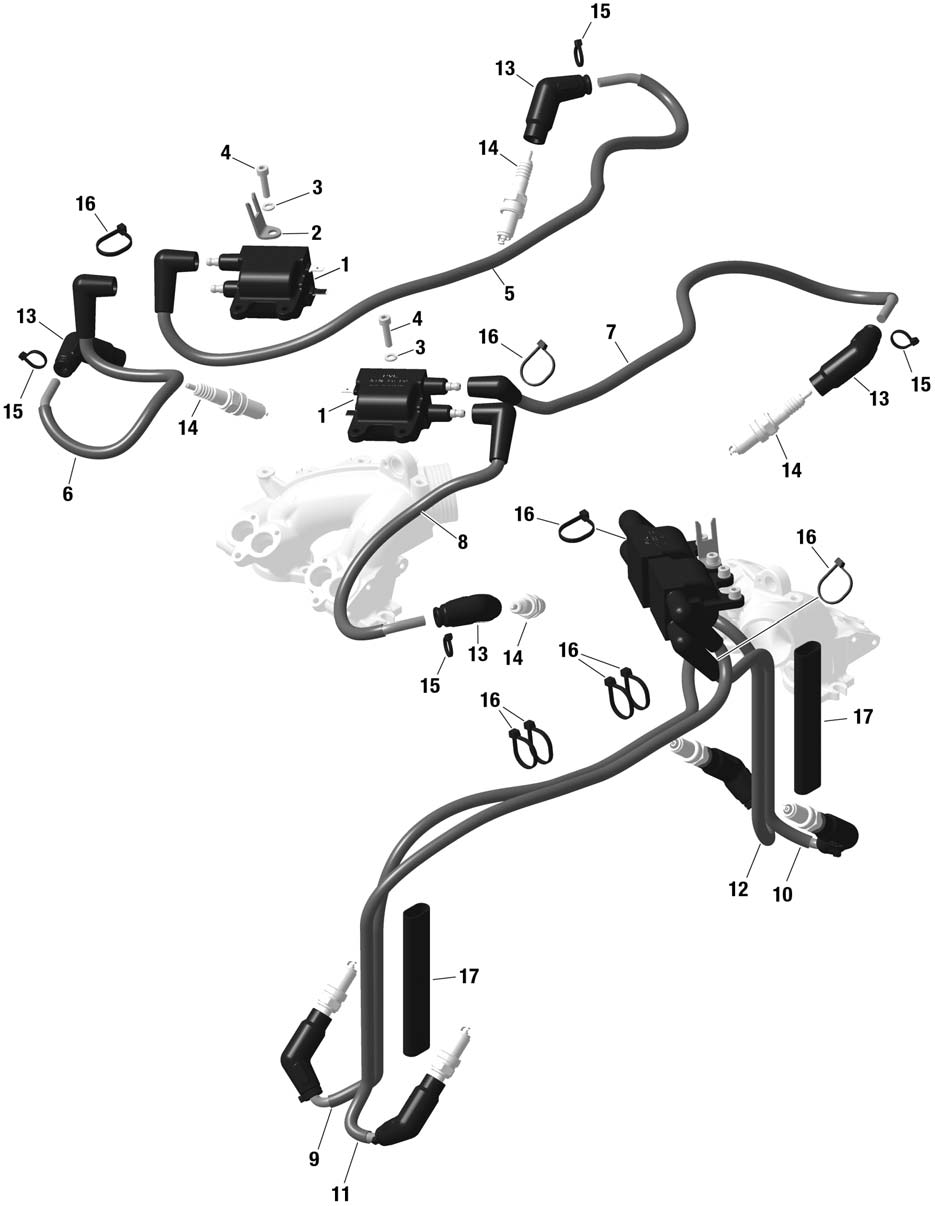

fig. 74-20-00-1
IGNITION COILS, IGNITION CABLE, SPARK PLUG CONNECTOR, SPARK PLUG For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 665613 | Double Ignition Coil | 610700 | Add to Cart |
| 2 | 951490 | Connector Bracket | 16700 | Add to Cart |
| 3 | 945830 | Lock Washer A5 | 360 | Add to Cart |
| 4 | 441341 | Allen Screw M5x20 Din 912 | 3500 | Add to Cart |
| 5 | 864688 | Ignition Cable Set | 0 | Add to Cart |
| 6 | 665551 | Ignition Cable Assy. | 87800 | Add to Cart |
| 7 | 864688 | Ignition Cable Set | 0 | Add to Cart |
| 8 | 864688 | Ignition Cable Set | 0 | Add to Cart |
| 9 | 665554 | Ignition Cable Assy. | 118100 | Add to Cart |
| 10 | 665555 | Ignition Cable Assy. | 90900 | Add to Cart |
| 11 | 665556 | Ignition Cable Assy. | 108900 | Add to Cart |
| 12 | 665557 | Ignition Cable Assy. | 89900 | Add to Cart |
| 13 | 265249 | Spark Plug Connector | 179900 | Add to Cart |
| 14 | 297656 | Spark Plug 12 | 118800 | Add to Cart |
| 15 | 866718 | Tie Wrap 94x2,5 Mm | 360 | Add to Cart |
| 16 | 866714 | Tie Wrap 142x3,2 Mm | 140 | Add to Cart |
| 17 | 860734 | Glass Fiber-silicon Sheating 120 | 26800 | Add to Cart |
