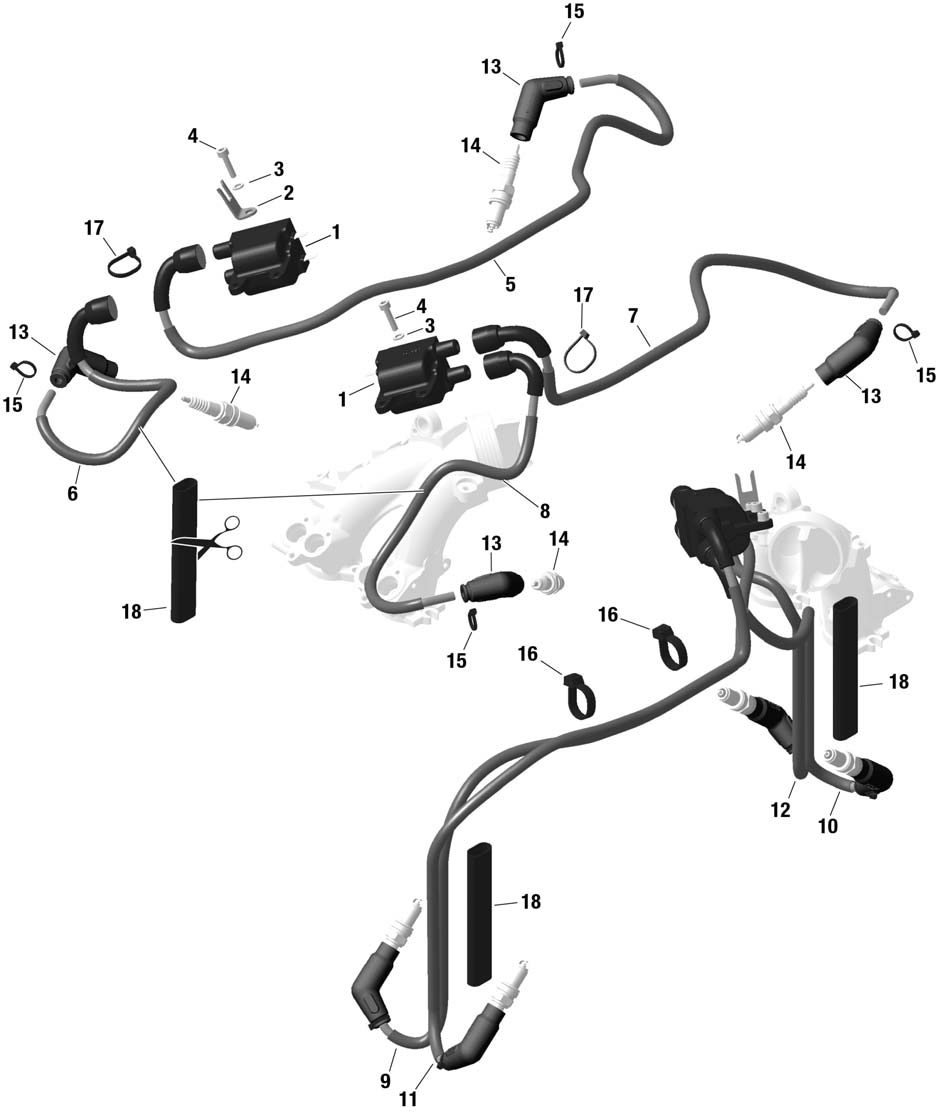

fig. 74-20-00-2
IGNITION COILS, IGNITION CABLE, SPARK PLUG CONNECTOR, SPARK PLUG For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 665613 | Double Ignition Coil | 515600 | Add to Cart |
| 2 | 951490 | Connector Bracket | 16200 | Add to Cart |
| 3 | 945830 | Lock Washer A5 | 320 | Add to Cart |
| 4 | 441341 | Allen Screw M5x20 Din 912 | 3400 | Add to Cart |
| 5-12 | 864688 | Ignition Cable Set | 0 | Add to Cart |
| 13 | 265249 | Spark Plug Connector | 151900 | Add to Cart |
| 15 | 866718 | Tie Wrap 94x2,5 Mm | 320 | Add to Cart |
| 16 | 866716 | Clamp | 870 | Add to Cart |
| 17 | 866714 | Tie Wrap 142x3,2 Mm | 120 | Add to Cart |
| 18 | 860734 | Glass Fiber-silicon Sheating 120 | 22700 | Add to Cart |
