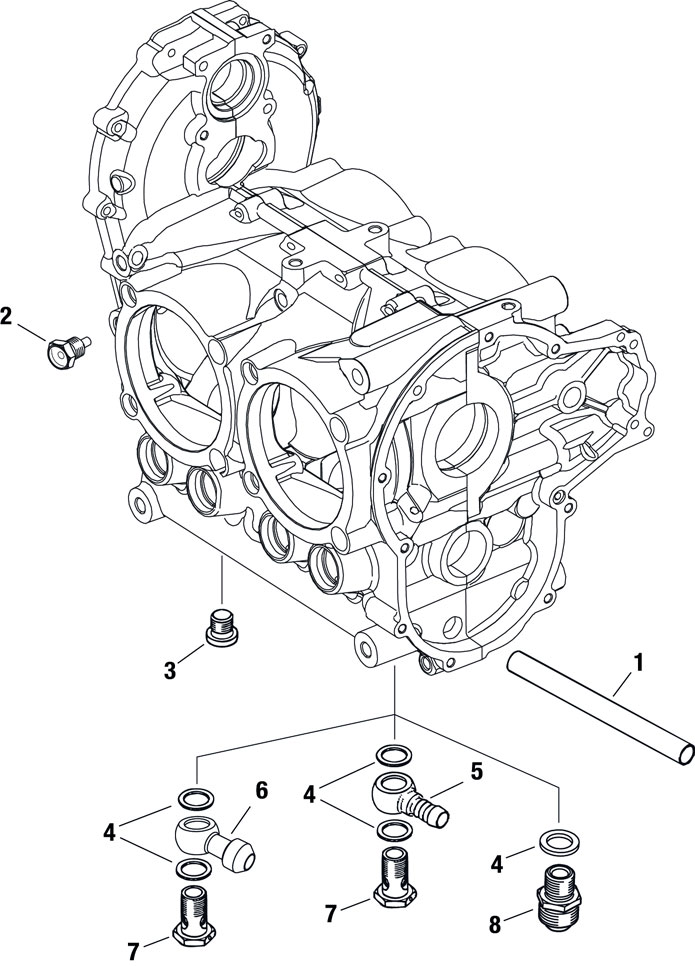

fig. 79-20-00-4
MAGNETIC DRAIN PLUG, PLUG SCREW For ROTAX 912UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 924451 | Oil Tube | 37200 | Add to Cart |
| 2 | 640866 | Magnetic Drain Plug M12x1,5 | 238200 (1) | Add to Cart |
| 3 | 240234 | Plug Screw M16x1,5 | 5100 | Add to Cart |
| 4 | 430622 | Gasket Ring A 16x22 | 2200 | Add to Cart |
| 5 | 956315 | Hose Nipple 10 | 97100 | Add to Cart |
| 6 | 956050 | Oil Vent Nipple | 275800 | Add to Cart |
| 7 | 940879 | Banjo Bolt M16x1,5x28 | 94200 | Add to Cart |
| 8 | 956652 | Adapter 3/4-16 Unf16/m16 X 1.5 | 322700 (1) | Add to Cart |
