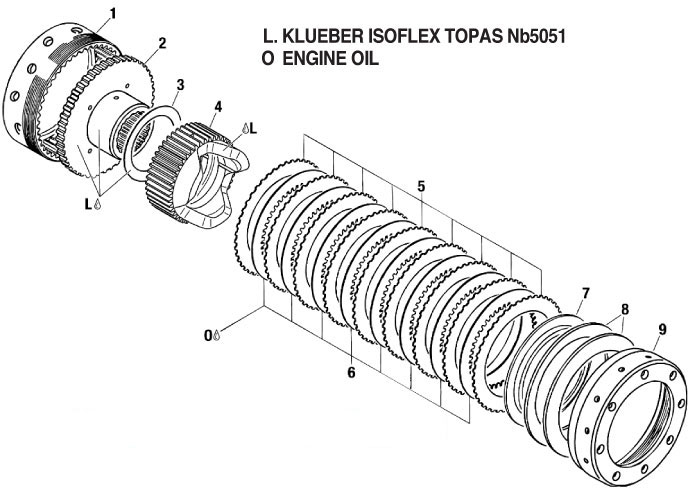

fig. 72-10-00-3
OVERLOAD CLUTCH For ROTAX 912UL
Click on Number to order Part
Your cart is Empty
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|
Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 958912 | Clutch Drum | 1516300 | Add to Cart |
| 2 | 958906 | Clutch Hub | 1241400 | Add to Cart |
| 3 | 944080 | Thrust Washer 45,2/60/1 | 72700 | Add to Cart |
| 4- | 958521 | Dog Hub | 0 | Add to Cart |
| 4- | 958526 | Dog Hub 30 Degree | 0 | Add to Cart |
| 5 | 958932 | Steel Friction Plate 1.0 Mm | 28900 | Add to Cart |
| 6 | 958946 | Sinter Friction Plate 1,8 Mm | 152100 | Add to Cart |
| 7 | 958951 | Support Ring | 409800 | Add to Cart |
| 8 | 838161 | Disk Spring 100x76x2,7 | 406400 | Add to Cart |
| 9 | 842644 | Collar Nut M102x1,5 | 700100 | Add to Cart |
Showing 1 to 10 of 10 entries
