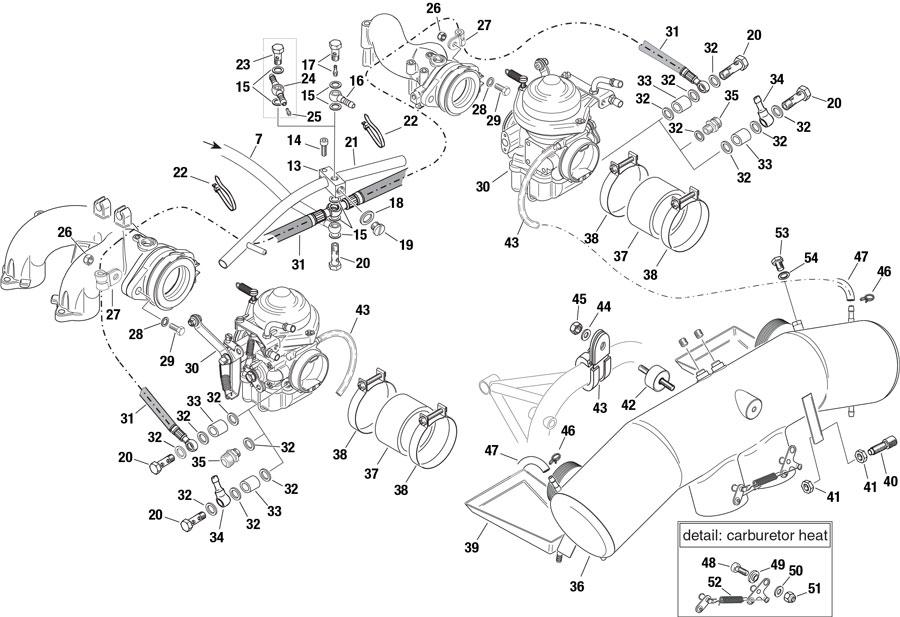

fig. 73-10-00-2b
FUEL PUMP ASSY., FUEL HOSE ASSY., AIRBOX ASSY. For ROTAX 912UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 7 | 874337 | Fuel Hose Assy | 1243000 | Add to Cart |
| 13 | 851328 | Clamp Block | 305900 | Add to Cart |
| 14 | 840518 | Allen Screw M5x18 | 1500 | Add to Cart |
| 15 | 950143 | Brass Gasket Ring 8,2/13/1,4 | 10500 | Add to Cart |
| 16 | 956312 | Hose Nipple 3/4 | 76500 | Add to Cart |
| 17 | 840737 | Banjo Bolt Assy | 657600 | Add to Cart |
| 18 | 230150 | Gasket Ring 10x14 A Din 7603 | 320 | Add to Cart |
| 19 | 641733 | Plug Screw M10x1 | 36400 | Add to Cart |
| 20 | 940861 | Banjo Bolt M8x1x27 | 86600 | Add to Cart |
| 21 | 924541 | Compensating Tube Assy., | 112400 | Add to Cart |
| 22 | 866716 | Clamp | 870 | Add to Cart |
| 23 | 840735 | Banjo Bolt M8x1x17 | 106700 | Add to Cart |
| 24-25 | 956602 | Double Hose Nipple Assy., | 949400 | Add to Cart |
| 25 | 963829 | Pilot Jet | 173100 | Add to Cart |
| 26 | 942674 | Hex. Nut M8 (ws 11mm) | 11100 | Add to Cart |
| 27 | 651430 | Cable Clamp 12/m8 | 95500 | Add to Cart |
| 28 | 250315 | Washer 8,4 | 320 | Add to Cart |
| 29 | 940483 | Hex. Screw M8x30 | 680 | Add to Cart |
| 31 | 874911 | Fuel Hose Assy. | 3102800 | Add to Cart |
| 32 | 950141 | Gasket Ring A 8x13 Din 7603 | 750 | Add to Cart |
| 33 | 847796 | Spacer 8,4/12/7,5 | 27100 | Add to Cart |
| 34 | 956312 | Hose Nipple 3/4 | 76500 | Add to Cart |
| 35 | 941853 | Fuel Line Connector | 299000 | Add to Cart |
| 36-52 | 667355 | Air Box Assy | 6006900 | Add to Cart |
| 37 | 860985 | Connecting Hose 35 Mm | 63100 | Add to Cart |
| 38 | 853595 | Clamp 59 | 21000 | Add to Cart |
| 39 | 874680 | Drip Tray Set | 442700 | Add to Cart |
| 40 | 241440 | Adjustment Screw M6x0,75 | 29300 | Add to Cart |
| 41 | 942541 | Hex. Nut M6x0,75 Hight 3 Mm | 12000 | Add to Cart |
| 42 | 960151 | Rubber Puffer 20x15xm6 | 85700 | Add to Cart |
| 43 | 853010 | Cable Clamp 32/m6 | 133700 | Add to Cart |
| 44 | 927941 | Washer 6,0/12/1 | 480 | Add to Cart |
| 45 | 842041 | Lock Nut M6 | 320 | Add to Cart |
| 46 | 851370 | Clamp 8 | 10200 | Add to Cart |
| 47 | 860660 | Hose 4x7 Per Meter | 137700 | Add to Cart |
| 48 | 241848 | Allen Screw M5 X 12 | 55000 | Add to Cart |
| 49 | 847741 | Graduated Sleeve | 70600 | Add to Cart |
| 50 | 827801 | Washer A 5,5 | 320 | Add to Cart |
| 51 | 842032 | Lock Nuyt M5-6.6 | 320 | Add to Cart |
| 52 | 938030 | Spring | 63200 | Add to Cart |
| 53 | 240772 | Hex.screw M6x10 | 680 | Add to Cart |
| 54 | 230415 | Gasket Ring A 6x10 Din 7603 | 320 | Add to Cart |
