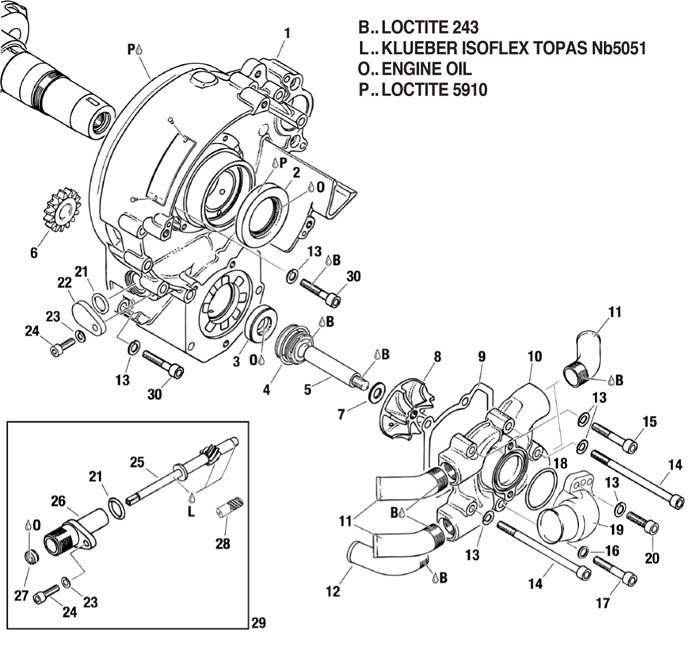

fig. 75-20-00-1
WATER PUMP WITH DRIVE For ROTAX 912ULS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1- | 612047 | Ignition Housing With Rev Counter Provision | 4897000 | Add to Cart |
| 1- | 612046 | Ignition Housing W/o Rev Counter Provision | 4593600 | Add to Cart |
| 2 | 850965 | Oil Seal 32x52x7 | 122500 | Add to Cart |
| 3 | 850978 | Oil Seal A 12x30x7 Fpm | 102800 (1) | Add to Cart |
| 4 | 850946 | Seal/rotary | 69400 | Add to Cart |
| 5 | 837112 | Pump Shaft | 337400 (1) | Add to Cart |
| 6 | 834136 | Water Pump Gear 15 T | 314400 (1) | Add to Cart |
| 7 | 926274 | Washer 8.2/12.5/1.5 | 19000 | Add to Cart |
| 8 | 922224 | Impeller | 48800 | Add to Cart |
| 9 | 850983 | Gasket | 0 (1) | Add to Cart |
| 10 | 922202 | Water Pump Housing | 134000 | Add to Cart |
| 11 | 922238 | Bent Socket 45 Degrees | 39100 (1) | Add to Cart |
| 12 | 922236 | Bent Socket 80 Degrees | 39100 | Add to Cart |
| 13 | 827962 | Washer 6,4 Din 125 | 300 | Add to Cart |
| 14 | 241482 | Allen Screw M6x90 | 1900 | Add to Cart |
| 15 | 241814 | Allen Screw, M6x35 | 970 (1) | Add to Cart |
| 16 | 230415 | Gasket Ring A 6x10 Din 7603 | 230 | Add to Cart |
| 17 | 241813 | Allen Screw M6x35, Stainless | 1500 | Add to Cart |
| 18 | 230020 | O-ring 32x2 | 3200 | Add to Cart |
| 19 | 922218 | Water Inlet Elbow | 514500 | Add to Cart |
| 20 | 241935 | Allen Screw M6x20 | 710 (1) | Add to Cart |
| 21 | 230880 | O-ring 13,3-2,4 | 460 | Add to Cart |
| 22 | 810620 | Cover Plate | 15900 | Add to Cart |
| 23 | 945830 | Lock Washer A5 | 270 | Add to Cart |
| 24 | 840514 | Allen Screw M5x16 | 270 | Add to Cart |
| 25 | 837150 | Rev. Counter Shaft | 885200 | Add to Cart |
| 26 | 912191 | Rev. Counter Housing | 150600 | Add to Cart |
| 27 | 930500 | Oil Seal 6x11x3/4,5 | 9300 | Add to Cart |
| 28 | 834182 | Worm Gear 5 T. | 155600 | Add to Cart |
| 29 | 881692 | Mech.rev.counter Drive Retrofit Kit | 4448500 | Add to Cart |
| 30 | 840887 | Allen Screw M6x30 Din 912 | 1200 | Add to Cart |
