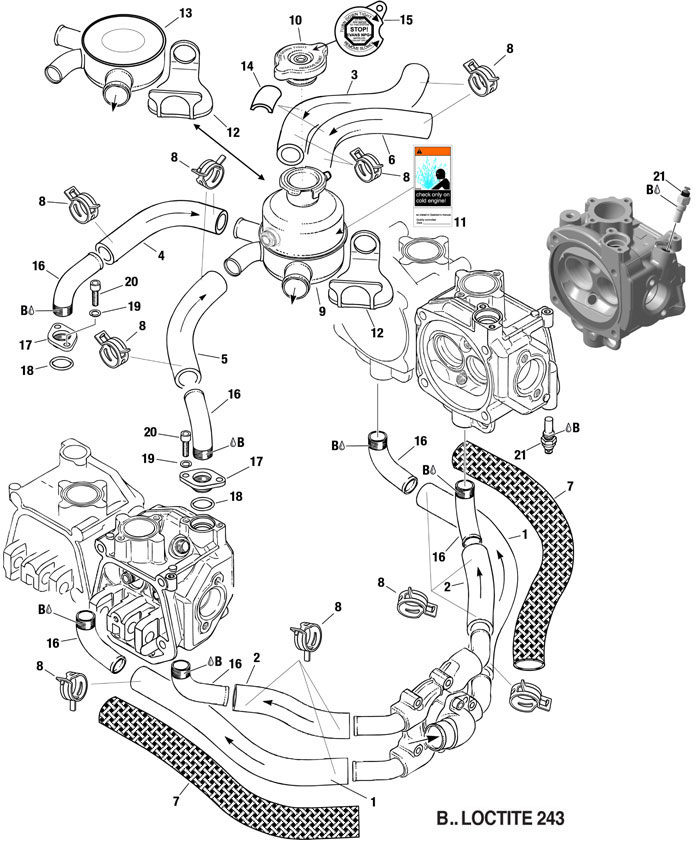

fig. 75-20-00-2
EXPANSION TANK WITH HOSES AND CONNECTIONS For ROTAX 912ULS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-5 | 922250 | Water Hose Din 73411 - 17x41-b-epdm - Per Meter | 203200 | Add to Cart |
| 1 | 922362 | 280 Mm Hose | 75200 | Add to Cart |
| 2 | 922360 | 180 Mm Hose | 50900 | Add to Cart |
| 3 | 922361 | 285 Mm Hose | 75800 | Add to Cart |
| 4 | 922363 | 200 Mm Hose | 53500 | Add to Cart |
| 5 | 922364 | 85 Mm Hose | 20800 | Add to Cart |
| 6 | 922192 | Water Tube 90 Degree | 16300 | Add to Cart |
| 7 | 860650 | Protection Tube (heat Resistant) | 612300 | Add to Cart |
| 8 | 851645 | Spring Type Clamp 25 | 7200 | Add to Cart |
| 9-12 | 922666 | Expansion Tank | 1154900 | Add to Cart |
| 10 | 922072 | Radiator Cap W/ Gasket, 1.2 Bar | 219400 | Add to Cart |
| 11 | 897506 | Warning Label | 8000 | Add to Cart |
| 12 | 860829 | Rubber Plate | 48500 | Add to Cart |
| 13 | 922265 | Water Distributor Assy | 424600 | Add to Cart |
| 14 | 922543 | Nla | 0 | Add to Cart |
| 15 | 898490 | Warning Label Evans Coolant | 5600 | Add to Cart |
| 16- | 922236 | Bent Socket 80 Degrees | 52600 | Add to Cart |
| 16- | 922238 | Bent Socket 45 Degrees | 52600 | Add to Cart |
| 17 | 922303 | Flange | 42400 | Add to Cart |
| 18 | 950180 | O-ring 19-2 | 1300 | Add to Cart |
| 19 | 827962 | Washer 6,4 Din 125 | 320 | Add to Cart |
| 20 | 241935 | Allen Screw M6x20 | 950 | Add to Cart |
| 21 | 965531 | Temperature Sensor | 135900 | Add to Cart |
