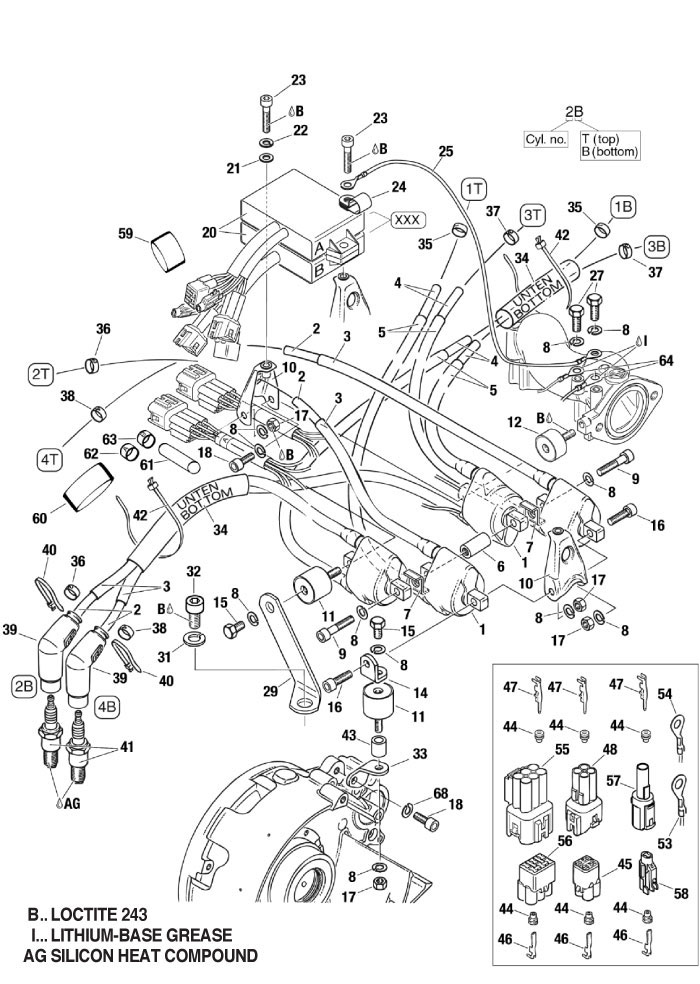

fig. 74-20-00-2
DOUBLE IGNITION COIL ASSY 912ULS (old version) For ROTAX 912ULS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-5 | 966218 | Double Ignition Coil Assy | 585500 | Add to Cart |
| 2 | 865711 | Ignition Cable (sold By The Meter) | 175700 | Add to Cart |
| 3 | 860991 | Protection Hose 8x1 Per Meter | 121700 | Add to Cart |
| 4 | 865711 | Ignition Cable (sold By The Meter) | 175700 | Add to Cart |
| 5 | 860991 | Protection Hose 8x1 Per Meter | 121700 | Add to Cart |
| 6 | 842740 | Distance Nut M6x24 | 51700 | Add to Cart |
| 6 | 842742 | Distance Nut M6x22,5 | 60100 | Add to Cart |
| 7 | 953390 | Separating Plate | 990 | Add to Cart |
| 8 | 945831 | Lock Washer A6 Din 128 | 360 | Add to Cart |
| 9 | 840883 | Allen Screw M6x30 | 3000 | Add to Cart |
| 10 | 953127 | Ignition Coil Bracket Ass`y | 102900 | Add to Cart |
| 11 | 860710 | Rubber Buffer 25x20xm6 | 96600 | Add to Cart |
| 12 | 960060 | Rubber Buffer 25x15xm6 | 49800 | Add to Cart |
| 13 | 247700 | Spacer 6,4/10/5 | 3000 | Add to Cart |
| 14 | 851260 | Ignition Coil Bracket 1 | 53000 | Add to Cart |
| 15 | 240772 | Hex.screw M6x10 | 760 | Add to Cart |
| 16 | 241935 | Allen Screw M6x20 | 1200 | Add to Cart |
| 17 | 242214 | Hex.nut M6 | 360 | Add to Cart |
| 18 | 241237 | Allen Screw M6x16 | 360 | Add to Cart |
| 20 | 965440 | Nla | 1624400 | Add to Cart |
| 21 | 827801 | Washer A 5,5 | 360 | Add to Cart |
| 22 | 945830 | Lock Washer A5 | 360 | Add to Cart |
| 23 | 240187 | Allen Screw M5x25 | 360 | Add to Cart |
| 24 | 851118 | Cable Clamp 11,3/m5 | 11700 | Add to Cart |
| 25 | 965788 | Mass Cable Assy., | 11000 | Add to Cart |
| 27 | 241187 | Hex.screw M6x16 | 360 | Add to Cart |
| 29 | 851266 | Bracket | 23500 | Add to Cart |
| 29 | 851481 | Ignition Coil Bracket 3 | 35900 | Add to Cart |
| 31 | 945832 | Lock Washer A8 | 360 | Add to Cart |
| 32 | 440192 | Allen Screw M8x16 Din 912 | 1200 | Add to Cart |
| 33 | 851267 | Bracket | 35900 | Add to Cart |
| 34 | 860734 | Glass Fiber-silicon Sheating 120 | 26800 | Add to Cart |
| 35 | 860741 | Marking Sleeve 1 | 1500 | Add to Cart |
| 36 | 860742 | Marking Sleeve 2 | 1500 | Add to Cart |
| 37 | 860743 | Marking Sleeve 3 | 1500 | Add to Cart |
| 38 | 860744 | Marking Sleeve 4 | 1500 | Add to Cart |
| 39 | 265249 | Spark Plug Connector | 179900 | Add to Cart |
| 40 | 866710 | Clamp 142x2,5 Mm | 80 | Add to Cart |
| 41- | 297656 | Spark Plug 12 | 118800 | Add to Cart |
| 41- | 297656 | Spark Plug 12 | 118800 | Add to Cart |
| 42 | 251920 | Clamp 279x3,6 Mm | 4600 | Add to Cart |
| 43 | 847701 | Spacer 6,5/10/11 | 30500 | Add to Cart |
| 44 | 260130 | Cable Grommet | 2000 | Add to Cart |
| 45 | 265260 | Connector Housing 4-pole | 11400 | Add to Cart |
| 46 | 265275 | Faston Connector | 3400 | Add to Cart |
| 47 | 265210 | Flat Pin Terminal | 1500 | Add to Cart |
| 48 | 265262 | Connector Housing 4-pole | 21200 | Add to Cart |
| 53 | 964059 | Cable Shoe M6 | 3100 | Add to Cart |
| 54 | 964055 | Cable Terminal M5 | 4300 | Add to Cart |
| 55 | 265269 | Connector Housing 6-pole | 29800 | Add to Cart |
| 56 | 265265 | Connector Housing 6-pole | 15100 | Add to Cart |
| 57 | 265204 | Single Pole Connector | 20400 | Add to Cart |
| 58 | 265207 | Connector Housing 1-pole | 13600 | Add to Cart |
| 59 | 960260 | Shrink Tube Coated | 286700 | Add to Cart |
| 60 | 960300 | Shrink Tube Coated 48/16 | 328400 | Add to Cart |
| 62 | 960010 | Shrinkable Hose Imprinted | 24900 | Add to Cart |
| 63 | 960015 | Shrinkable Hose Imprinted | 21200 | Add to Cart |
| 64 | 965784 | Mass Cable Assy. | 79600 | Add to Cart |
| 68 | 827962 | Washer 6,4 Din 125 | 360 | Add to Cart |
| 0 | Add to Cart |
