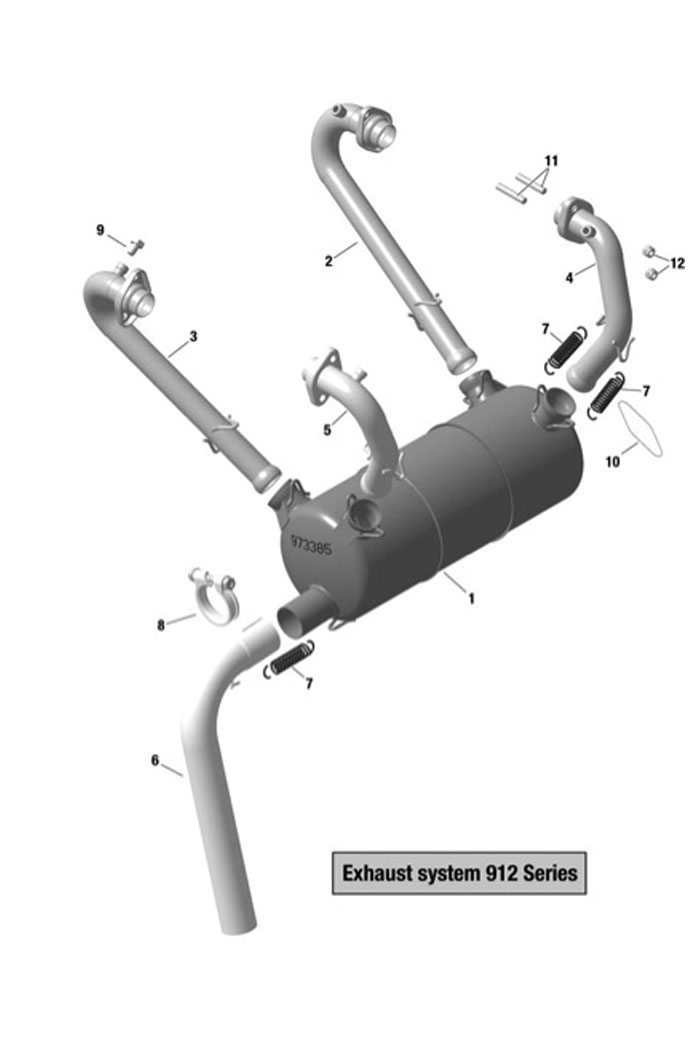

fig. 78-10-00-2b

EXHAUST SYSTEM 912 SERIES For ROTAX 912ULS

Click on Number to order Part

Fig. Part Number Description Unit/Price Add to Cart
1-9 0 (1) Add to Cart
1 973385 Muffler Assy 4371900 Add to Cart
2 973010 Exhaust Pipe Assy Cyl. 1 1403400 Add to Cart
3 973020 Exhaust Pipe Assy Cyl. 2 1361900 Add to Cart
4 973030 Exhaust Pipe Assy Cyl. 3 1490200 Add to Cart
5 973040 Exhaust Pipe Assy Cul. 4 1433900 Add to Cart
6 973390 Exhaust Elbow Stainless 2189900 Add to Cart
7- 938796 Spring 66 Mm 5500 (1) Add to Cart
7- 938796 Spring 66 Mm 5500 Add to Cart
8 951550 Exhaust Pipe Clamp Assy 71100 Add to Cart
9 841115 Hex Screw M8x1x10 20900 (1) Add to Cart
10 0 Add to Cart
11 940368 Stud M8x23/20 2900 Add to Cart
12 842950 Lock Nut Din 14441 M8-sw12 1900 Add to Cart
