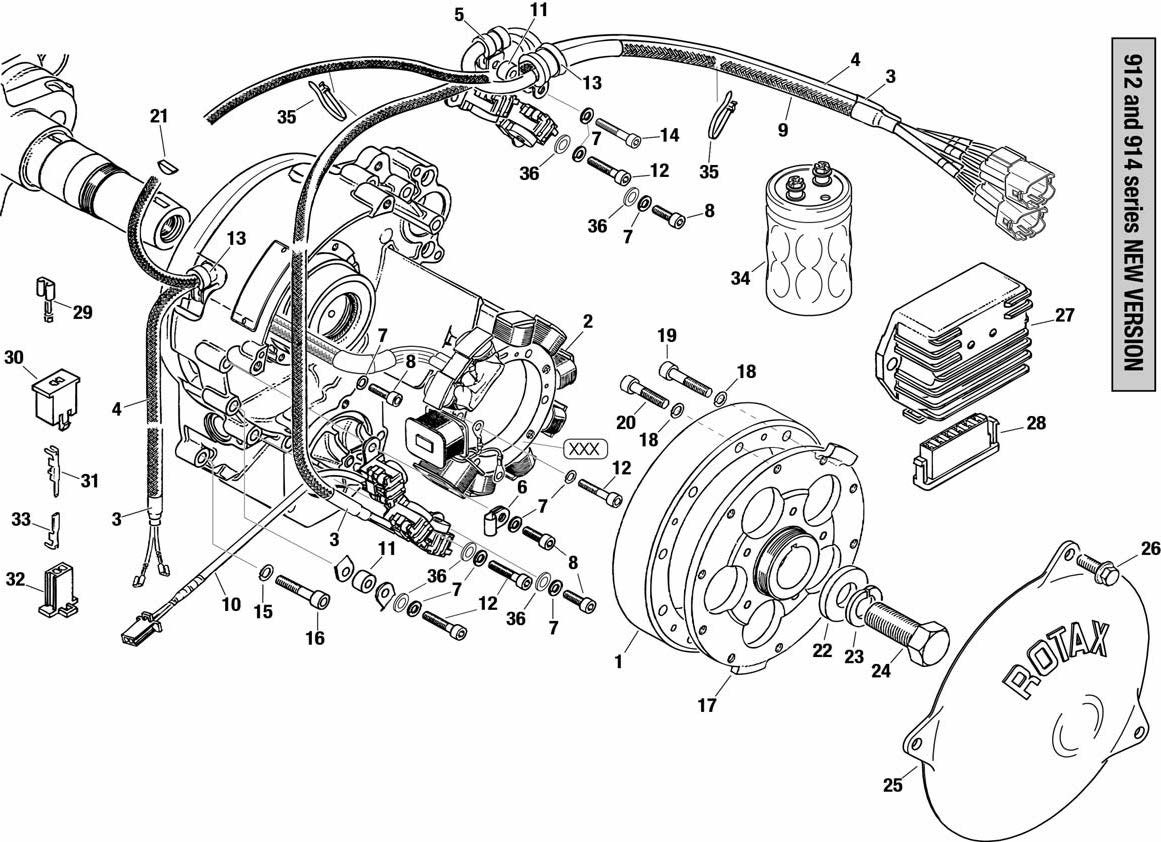

fig. 24-20-00
MAGNETO-GENERATOR, PICK UP, RECTIFIER REGULATOR For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 965192 | Magneto Ring | 506700 | Add to Cart |
| 2-6 | 891095 | Stator Assy. | 1427200 | Add to Cart |
| 3 | 860530 | Shrink Tube 9,5x1,27 | 175500 | Add to Cart |
| 4 | 965623 | Screening Metal Braid 460 Mm | 83500 | Add to Cart |
| 5 | 851111 | Cable Clamp 8/m5 | 45800 | Add to Cart |
| 6 | 851566 | Cable Clamp 7/m5 | 7400 (1) | Add to Cart |
| 7 | 945830 | Lock Washer A5 | 270 | Add to Cart |
| 8 | 840514 | Allen Screw M5x16 | 270 | Add to Cart |
| 9- | 965179 | Trigger Coil Kit | 1971200 | Add to Cart |
| 9- | 965176 | Nla | 0 | Add to Cart |
| 10 | 264087 | Trigger Coil | 268200 | Add to Cart |
| 11 | 847660 | Spacer 5,2/12/7,4 | 22300 | Add to Cart |
| 12 | 240187 | Allen Screw M5x25 | 270 | Add to Cart |
| 13 | 851250 | Cable Clamp 15/m5 | 4600 | Add to Cart |
| 14 | 940882 | Allen Screw M5x30 | 710 (1) | Add to Cart |
| 15 | 827962 | Washer 6,4 Din 125 | 300 | Add to Cart |
| 16 | 840888 | Allen Screw M6x30 Din 912 | 710 | Add to Cart |
| 17- | 966874 | Fly Wheel Hub, 912 Ul/uls | 1132800 (1) | Add to Cart |
| 17- | 966877 | Fly Wheel Hub | 1125800 | Add to Cart |
| 18 | 845381 | Lock Washer A6 | 460 | Add to Cart |
| 19 | 840883 | Allen Screw M6x30 | 1500 | Add to Cart |
| 20 | 840863 | Allen Screw M6x25 | 970 | Add to Cart |
| 21 | 246571 | Woodruff Key 4x5 Din 6888 | 4300 | Add to Cart |
| 22 | 944073 | Washer 17/36/5 | 111600 | Add to Cart |
| 23 | 945769 | Lock Washer 16 | 1500 | Add to Cart |
| 24 | 841602 | Hex. Screw M16x1,5x40 | 8100 | Add to Cart |
| 25 | 810980 | Ignition Cover | 20200 | Add to Cart |
| 26 | 640172 | Hex Screw M6x16 | 710 | Add to Cart |
| 27-28 | 965349 | Rectifier Regulator | 468500 | Add to Cart |
| 28 | 965335 | Connector Housing | 17500 | Add to Cart |
| 29 | 864011 | Faston Connector 6,3x0,8 | 1500 | Add to Cart |
| 30 | 265252 | Connector Housing, Two-pole | 6200 | Add to Cart |
| 31 | 265272 | Faston Connector | 1900 | Add to Cart |
| 32 | 265250 | Connector Housing, Two-pole | 43100 | Add to Cart |
| 33 | 265270 | Faston Connector | 12400 | Add to Cart |
| 34 | 0 | Add to Cart | ||
| 35 | 866710 | Clamp 142x2,5 Mm | 110 | Add to Cart |
| 36 | 827801 | Washer A 5,5 | 270 | Add to Cart |
