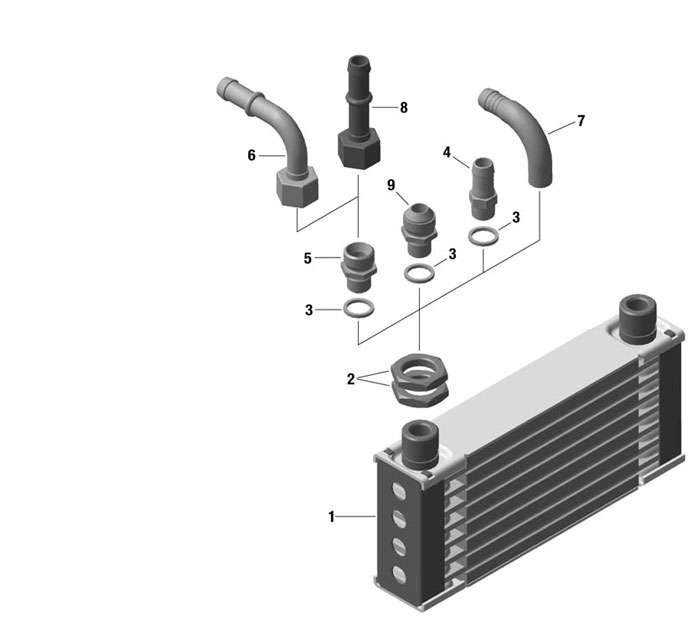

fig. 79-20-00-5
OIL RADIATOR For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-4 | 886012 | Oil Cooler Medium - Metric | 350000 | Add to Cart |
| 1-4 | 886012 | Oil Cooler Medium - Metric | 350000 | Add to Cart |
| 1-4 | 886013 | Oilcooler Lg - Metric Connections | 420700 | Add to Cart |
| 1,2,3,9 | 886015 | Oilcooler Lg Unf Connections | 482400 | Add to Cart |
| 1,2,3,9 | 886016 | Oil Radiator Extra Large - Unf Fittings | 493800 | Add to Cart |
| 1-4 | 886012 | Oil Cooler Medium - Metric | 350000 | Add to Cart |
| 2 | 242873 | Hex Nut M22 X 1,5 H=6 | 11000 | Add to Cart |
| 3 | 230387 | Gasket Ring 14,2/18/2 | 750 | Add to Cart |
| 4 | 840461 | Nipple 13,2/9,5-m14x1,5 | 23900 | Add to Cart |
| 5 | 956577 | Adaptor M 18 X 1.5 / M14 X 1.5 | 52300 | Add to Cart |
| 7 | 924585 | Angular Tube M14x1,5 | 36900 | Add to Cart |
| 8 | 956610 | Hose Nipple With Union Nut | 194300 | Add to Cart |
| 9 | 956643 | Adaptor 3/4-16 Unf M14 X 1.5 | 58100 | Add to Cart |
| 3,5,8 | 956615 | Screw Connection Set Straight | 496800 | Add to Cart |
| 3,5,6 | 956585 | Screw Connection Set Bent | 293200 | Add to Cart |
| 2,3,9 | 956645 | Screw Connection Set Unf | 184600 | Add to Cart |
