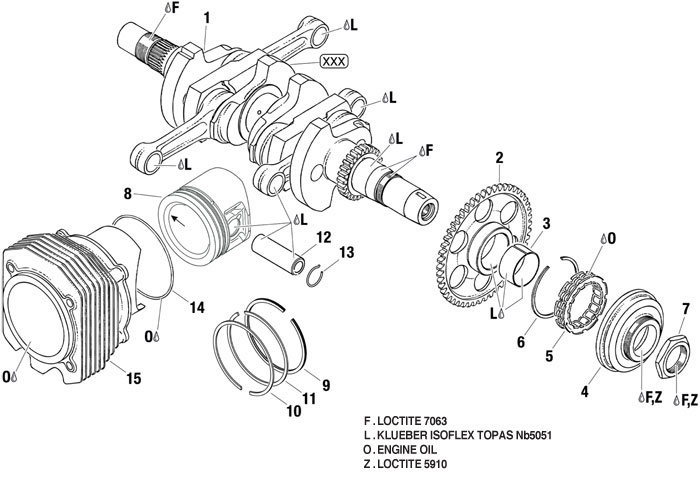

fig. 72-20-00-4
CRANKSHAFT, PISTON, CYLINDER, SPRAG CLUTCH For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 2 | 834122 | Free Wheel Gear 50 T | 175600 | Add to Cart |
| 3 | 933311 | Bearing Bushing | 145300 | Add to Cart |
| 4 | 852402 | Sprag Clutch Housing | 1351100 (1) | Add to Cart |
| 5 | 958856 | Sprag Clutch 51,710x68,377x13 | 288800 | Add to Cart |
| 6 | 845425 | Circlip 70 | 5100 | Add to Cart |
| 7 | 842574 | Hex. Nut M34x1,5 Lh | 40500 | Add to Cart |
| 8-10a | 888382-1 | Piston Assy 84,00mm Red | 801000 | Add to Cart |
| 8-10a | 888382-2 | Piston Assy 84,01 Mm Green | 801000 | Add to Cart |
| 9- | 215400 | Oil Scraper Ring 79,5 Mm | 50600 | Add to Cart |
| 9- | 815230 | Oil Scraper Ring | 56400 | Add to Cart |
| 10- | 215420 | Tapered Compression Ring 79,5 Mm | 29000 | Add to Cart |
| 10- | 815280 | Tapered Compression Ring | 38300 | Add to Cart |
| 11- | 215590 | Rectangular Ring 79,5/72,9x1,5 | 67000 | Add to Cart |
| 11- | 815257 | Rectangular Ring 84/77x1,5 | 133600 (1) | Add to Cart |
| 12- | 916420 | Nla | 0 | Add to Cart |
| 12- | 916356 | Piston Pin 20x12x55,3 | 164300 | Add to Cart |
| 13 | 845106 | Mono Hook Circlip | 2700 | Add to Cart |
| 14 | 250510 | O-ring 87x2 | 8300 | Add to Cart |
| 15- | 913229-1 | Cylinder - Type A (red Dot) | 0 (1) | Add to Cart |
| 15- | 913229-2 | Cylinder - Type B (green Dot) | 1432000 (1) | Add to Cart |
