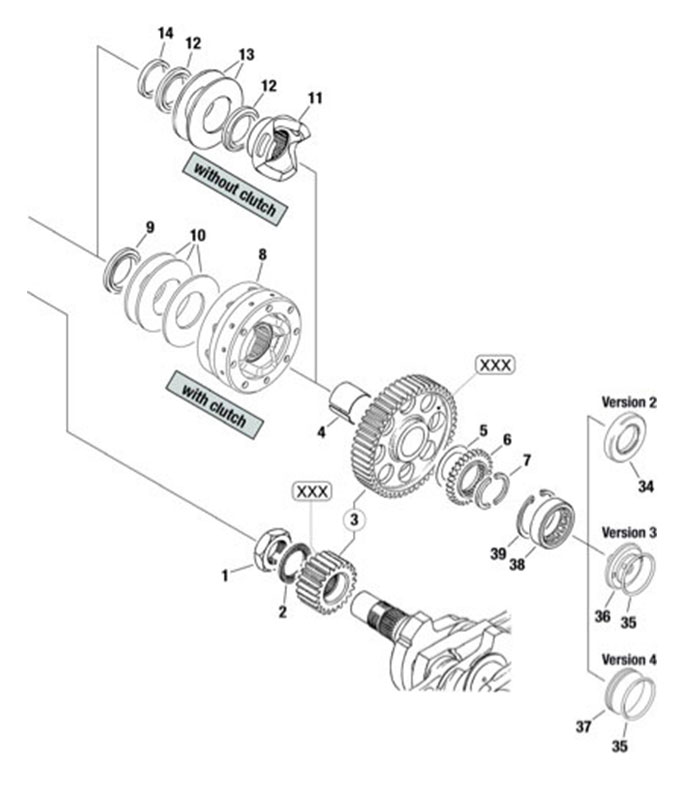

fig. 72-10-00
PROPELLER GEAR ASSY. For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 842579 | Hex. Nut M30x1.5 12mm, Lh | 64700 | Add to Cart |
| 2 | 845431 | Friction Washer Vs30 | 8800 | Add to Cart |
| 3- | 886127 | Gear Set I 2,27 | 3099100 (1) | Add to Cart |
| 3- | 886517 | Gear Set I 2.43 Narrow. | 2066100 | Add to Cart |
| 3- | 886548 | Gear Set I 2,43 | 3099100 (1) | Add to Cart |
| 4 | 933362 | Bushing 31x33x29,8 | 222800 | Add to Cart |
| 5 | 827992 | Thrust Washer 33,2/51/1,2 | 92100 | Add to Cart |
| 6 | 834233 | Drive Gear 29 T., | 102600 (1) | Add to Cart |
| 7-10 | 996888 | Overload Clutch Assy, Retrofit Kit Narrow | 3683100 | Add to Cart |
| 7-10 | 996889 | Overload Clutch Retrofit Kit, Wide | 3683100 | Add to Cart |
| 7 | 926035 | Ring Half | 61600 | Add to Cart |
| 8- | 996885 | Overload Clutch Assy,narrow | 3792200 | Add to Cart |
| 8- | 996910 | Overload Clutch Assy. Wide | 4373700 | Add to Cart |
| 9 | 847787 | Step Collar | 123200 | Add to Cart |
| 10 | 838216 | Disk Spring B80, 80x41x3 | 23000 | Add to Cart |
| 11- | 958891 | 958 891 Usr 958 896 | 893900 | Add to Cart |
| 11- | 958898 | Dog Hub, W/wide Gearset | 826500 (1) | Add to Cart |
| 12 | 847787 | Step Collar | 123200 | Add to Cart |
| 13 | 838216 | Disk Spring B80, 80x41x3 | 23000 | Add to Cart |
| 14 | 847689 | Spacer 35,2/42/6 | 50700 | Add to Cart |
| 15- | 927401 | Shim 35,4/43/0,2 | 2200 | Add to Cart |
| 15- | 927402 | Shim 35,4/43/0,5 | 2400 | Add to Cart |
| 15- | 927403 | Shim 35,4/43/1,0 | 3300 | Add to Cart |
| 16 | 848225 | Eccenter | 118700 | Add to Cart |
| 17 | 847687 | Distance Sleeve 35,2/42/6 | 38700 | Add to Cart |
| 18- | 937041 | Propeller Shaft Ver 3 | 2238900 (1) | Add to Cart |
| 18- | 937047 | Propeller Shaft V2 | 1888200 (1) | Add to Cart |
| 19 | 811956 | Gear Cover Assy. | 2185800 | Add to Cart |
| 20 | 950470 | Oil Seal As 40x55x7 | 114100 | Add to Cart |
| 21 | 926022 | Spacer Ring 36/50/5,5 | 43600 | Add to Cart |
| 22 | 832587 | Ball Bearing 6207e Tnh, 35-72-17 | 524400 (1) | Add to Cart |
| 23 | 944320 | Washer 7,2/18,8/3 | 2600 | Add to Cart |
| 24 | 941760 | Hex. Screw M7x16 Din 933 | 1200 | Add to Cart |
| 25 | 429230 | Dowel 6x20 | 460 | Add to Cart |
| 26 | 944131 | Washer 8 Mm | 970 | Add to Cart |
| 27 | 841562 | Allen Screw M8 X 45 | 1500 (1) | Add to Cart |
| 28 | 827962 | Washer 6,4 Din 125 | 300 (1) | Add to Cart |
| 29 | 241823 | Allen Screw M6x45 Din 912 | 970 (1) | Add to Cart |
| 30 | 940363 | Stud M8x23/14 | 2400 (1) | Add to Cart |
| 31 | 926151 | Cover | 39100 | Add to Cart |
| 32 | 945832 | Lock Washer A8 | 270 (1) | Add to Cart |
| 33 | 940592 | Hex.screw M8x20 | 1200 (1) | Add to Cart |
| 34 | 950200 | Oil Seal 30x52x7 | 117900 | Add to Cart |
| 35 | 430175 | O-ring 46x3 | 5700 | Add to Cart |
| 36 | 810301 | Oil Inlet Flange | 592400 | Add to Cart |
| 37 | 810306 | Nla | 0 | Add to Cart |
| 38 | 232246 | Roller Bearing Rnu 205 Ecp/pab4l | 217700 (1) | Add to Cart |
| 39 | 945820 | Retaining Ring 52x2 | 2600 | Add to Cart |
| 40 | 827837 | Cover Disk | 220500 | Add to Cart |
| 41 | 842634 | Round-neck Nut Set M8 | 120700 | Add to Cart |
| 42 | 842634 | Round-neck Nut Set M8 | 120700 | Add to Cart |
| 42- | 842639 | Hex.neck Nut Set 5/16-20 Un | 109600 | Add to Cart |
| 43 | 244980 | Sealing Cover | 24500 | Add to Cart |
| 44 | 456520 | Oil Spray Nozzle Assy | 122200 | Add to Cart |
