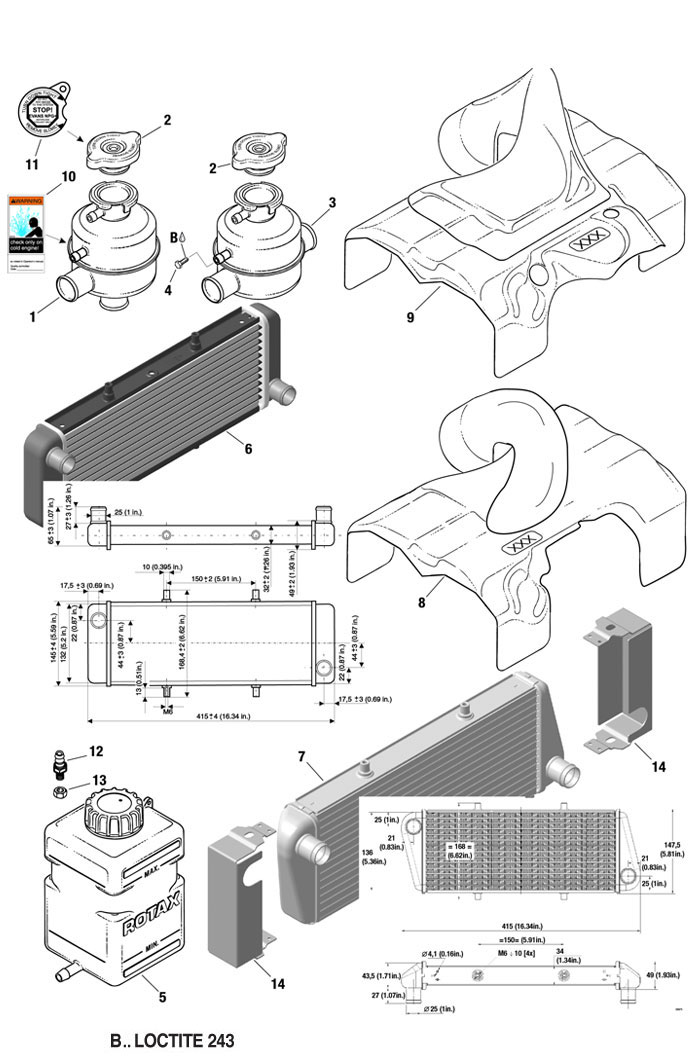

fig. 75-20-00-3
COOLING AIR BAFFLE, OVERFLOW BOTTLE WITH CAP, RADIATOR For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-2 | 0 (1) | Add to Cart | ||
| 2-3 | 922318 | Expansion Tank Assy. 180 Degr., | 406500 | Add to Cart |
| 2 | 922072 | Radiator Cap W/ Gasket, 1.2 Bar | 53800 | Add to Cart |
| 4 | 641071 | Hex.screw Iso 4017-m6x6-8.8 | 1200 | Add to Cart |
| 5 | 922327 | Overflow Bottle With Cap | 52000 | Add to Cart |
| 7 | 997084 | Radiator High Flow | 504000 | Add to Cart |
| 8 | 975793 | Cooling Air Baffle | 2036500 | Add to Cart |
| 10 | 897506 | Warning Label | 6100 | Add to Cart |
| 11 | 898490 | Warning Label Evans Coolant | 4200 | Add to Cart |
| 12 | 940551 | Hose Nipple, M6 | 79300 | Add to Cart |
| 13 | 242032 | Hex.nut Bm6 | 270 (1) | Add to Cart |
| 14 | 881535 | Radiator Retrofit Kit | 222000 | Add to Cart |
| 0 | Add to Cart |
