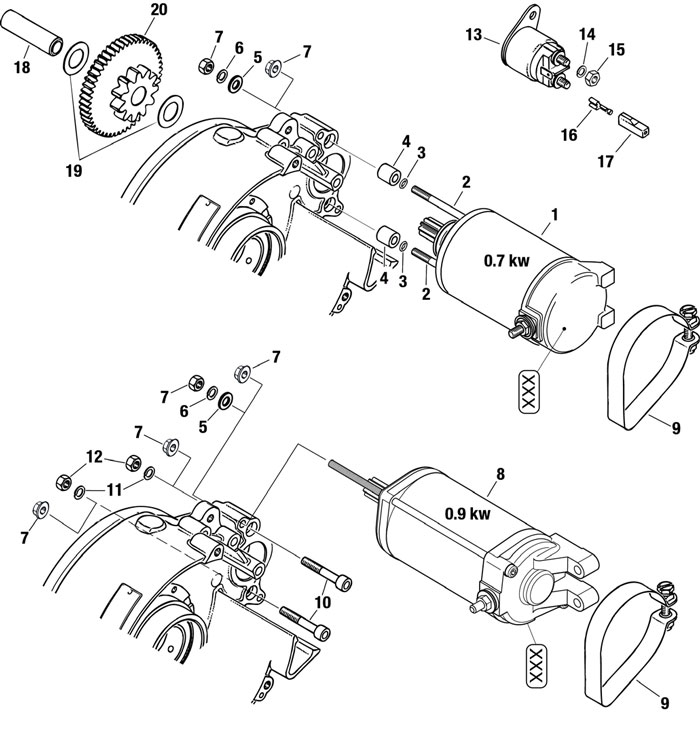

fig. 80-10-00-1
ELECTRIC STARTER, STARTER RELAY For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-7 | 685974 | Electric Starter Assy | 1796700 | Add to Cart |
| 2 | 840636 | Stud M5x150/16 | 35800 (1) | Add to Cart |
| 3 | 950420 | O-ring 5x1,5-n | 21200 | Add to Cart |
| 4 | 847248 | Spacer 5,4/10/12 | 28900 | Add to Cart |
| 5 | 927574 | Washer 5,3 | 230 (1) | Add to Cart |
| 6 | 945830 | Lock Washer A5 | 270 | Add to Cart |
| 7- | 942311 | Hex. Nut M5 | 41500 | Add to Cart |
| 7- | 242072 | Hex Nut M5 8.8 | 300 (1) | Add to Cart |
| 4-6,8-12 | 889751 | Electric Starter Assy Hd | 1225900 | Add to Cart |
| 9 | 851020 | Clamp 76 | 34600 | Add to Cart |
| 10 | 941792 | Allen Screw M5x45 | 1500 (1) | Add to Cart |
| 11 | 945830 | Lock Washer A5 | 270 | Add to Cart |
| 12 | 842032 | Lock Nuyt M5-6.6 | 270 | Add to Cart |
| 13-15 | 992818 | Starter Relay Assy | 166200 | Add to Cart |
| 14 | 945831 | Lock Washer A6 Din 128 | 270 | Add to Cart |
| 15 | 242214 | Hex.nut M6 | 300 (1) | Add to Cart |
| 16 | 960719 | Connector Sheath | 970 | Add to Cart |
| 17 | 864011 | Faston Connector 6,3x0,8 | 1500 | Add to Cart |
| 18 | 837102 | Idle Gear Shaft | 37000 | Add to Cart |
| 19 | 827261 | Thrust Washer 12,5/21,5/1 | 970 | Add to Cart |
| 20 | 834156 | Idle Gear 50/11 T, | 405100 | Add to Cart |
