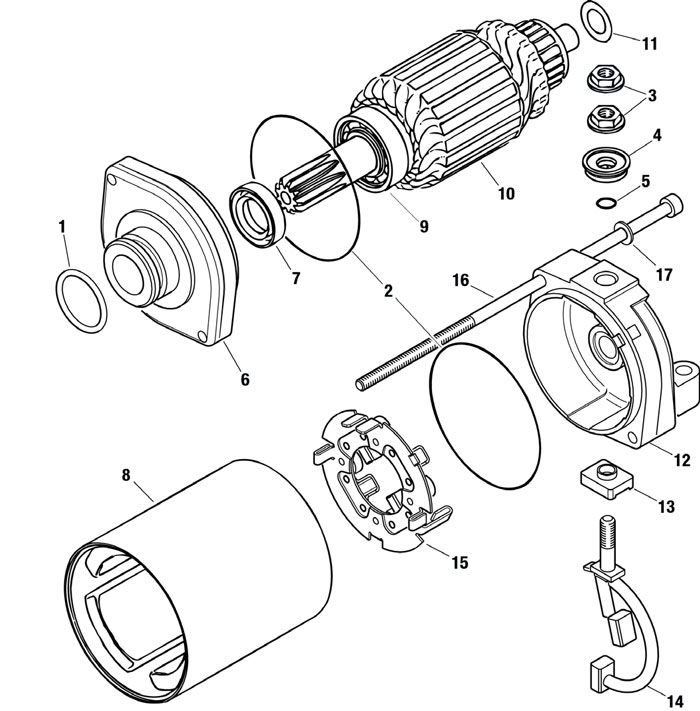

fig. 80-10-00-3

E-STARTER SINGLE PARTS For ROTAX 914UL

Click on Number to order Part

Fig. Part Number Description Unit/Price Add to Cart
1 250140 O-ring Din 3771-24,4x3,1-n 3300 Add to Cart
2 850500 O-ring 62-1,5 1200 Add to Cart
3 242780 Combined Nut M6 5300 Add to Cart
4 260800 Connector Sheath 5300 Add to Cart
5 230530 O-ring 6x1,7 270 Add to Cart
7 250130 Oil Seal 15x24x5 1800 Add to Cart
9 232260 Ball Bearing 6002 Z / 15-32-9 44100 Add to Cart
11 827600 Shim 1200 Add to Cart
12-15 294354 Electric Starter Repair Kit 477800 Add to Cart
16 440586 Allen Screw M5x180 16100 Add to Cart
17 927574 Washer 5,3 230 (1) Add to Cart
