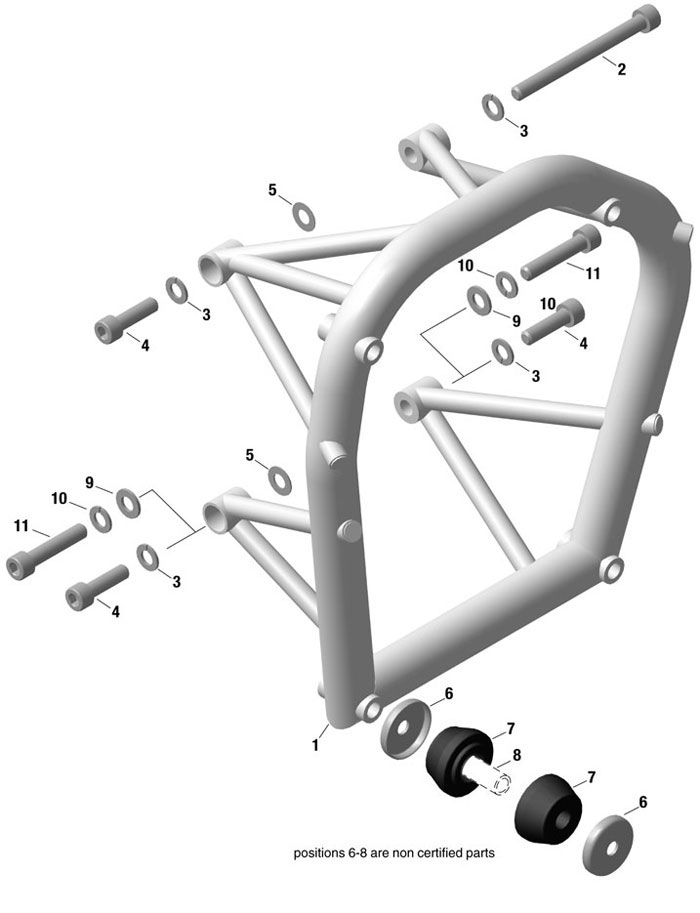

fig. 71-20-00
ENGINE SUSPENSION FRAME For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 886563 | Engine Suspension Frame Assy | 2828600 | Add to Cart |
| 2 | 941487 | Allen Screw M10x110 Din 912 | 6200 | Add to Cart |
| 3 | 945833 | Lock Washer A10 | 460 | Add to Cart |
| 5- | 927952 | Thrust Washer 10,1/20/0,5 | 6000 | Add to Cart |
| 5- | 927953 | Thrust Washer 10,1/20/1,0 | 6400 | Add to Cart |
| 6-7 | 860695 | Shock Mount Set | 2599800 | Add to Cart |
| 6 | 944240 | Cup Washer | 229000 | Add to Cart |
| 9 | 927411 | Washer 10,5 | 270 (1) | Add to Cart |
| 10 | 945833 | Lock Washer A10 | 460 | Add to Cart |
| 11 | 640572 | Allen Screw M10x50 | 3600 | Add to Cart |
